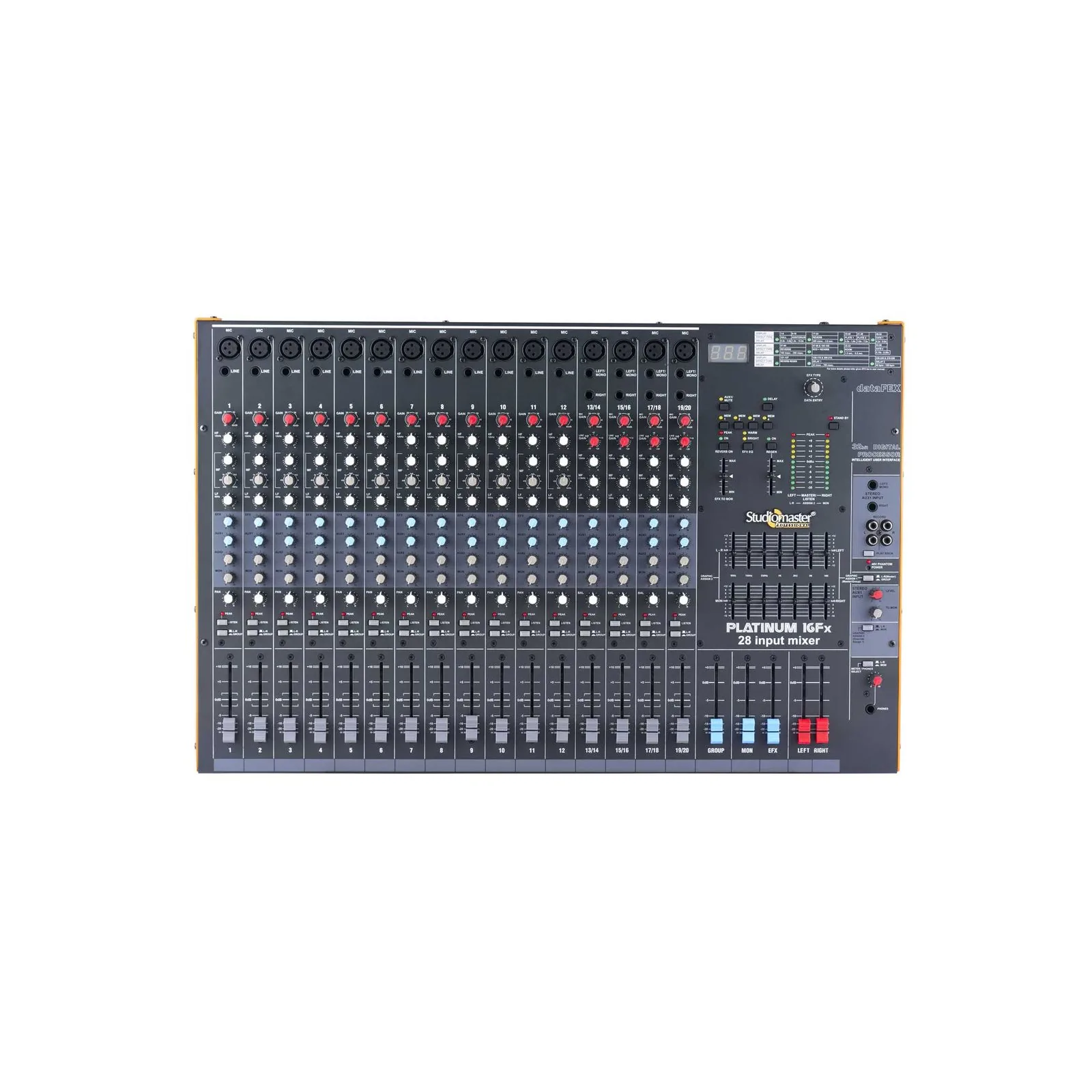

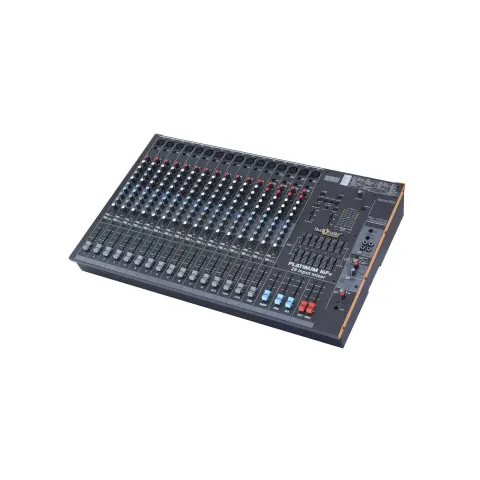

SM Professional
Platinum 16 Fx
- Channels
- 28 Channels
- Category
- Mixers
- Category
- Analog Mixers
A Full-fledged 28-channel mixer with 16 Mic inputs, 12 mono line input, 4 Mon-Ster inputs (Mono / Stereo) & Digital Effects
Features
- 16 Channel Mixer (Mono XLR 16 Mic / 12 Line + 4 Mon/Ster)
- 3 band EQ with mid -sweep on monochannel.
- Mon-Ster Input for Full Flexibility.
- 2 Aux Sends/ 1 Stereo Aux Returns
- 16 bit (32 bit internal) digital stereo EFX with user editable parameters.
- High quality 147 preset effects with 4-memory switch and on board help.
- 2 Aux, 1 EFX, 1 Mon rotary control on each channel (Total 4 Aux sends).
- Listen (PFL) & Group / Master routable switch per channel
- Stereo 7 Band Graphic EQ switchable to Master /Monitor
- Globally switched +48V phantom power.
- L/R pan control on each channel.
- 12 Segment L/R LED meter for Master, PFL & Monitor Level.
- Separate master fader control for Group, Monitor & L/R output.
- ¼” Jack for Line out & monitor output.
- Balanced XLR & ¼” Jack Master output.
- Stereo Tape In/ Tape Out, Headphone out with rotary volume control.
Specifications, Q&A and videos
| Series | Platinum Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 75dB/55dB/35dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +8dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +6dBu / -24dBu |
| Mic Input | Typically 2K Ω balanced |
| Line input | 20K Ω (Balanced) /10K Ω (Unbalanced) |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | <30Ω |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | <0.006% |
| Signal to Noise Ratio | -78 dB |
| Clip indication | 5 dB prior to true clip |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±15dB @ 12KHz/350Hz-6KHz/60 Hz |
| Stereo Mic/Line (Treble/Bass) | ±15dB @ 12KHz/1.6KHz/45 Hz |
| EFX & USB | 32 bit Multi EFX processor |
| Phantom Supply | +48V |
| Power Supply | 150V~250V AC/50Hz |
| Dimensions (W x D x H in mm) | 725 x 440 x 126 |
| Net Weight (Kgs.) | 12.7 |
The Platinum 16 Fx is an SM Professional Mixer. A Full-fledged 28-channel mixer with 16 Mic inputs, 12 mono line input, 4 Mon-Ster inputs (Mono / Stereo) & Digital Effects. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
16 Channel Mixer (Mono XLR 16 Mic / 12 Line + 4 Mon/Ster); 3 band EQ with mid -sweep on monochannel; Mon-Ster Input for Full Flexibility; 2 Aux Sends/ 1 Stereo Aux Returns; 16 bit (32 bit internal) digital stereo EFX with user editable parameters; High quality 147 preset effects with 4-memory switch and on board help.
The Platinum 16 Fx series is Platinum Series.
The Platinum 16 Fx nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The Platinum 16 Fx max gain (mic/line/stereo line) is 75dB/55dB/35dB.
The Platinum 16 Fx mic (gain min/gain max) is -10dBu / -60dBu.
The Platinum 16 Fx line (gain min /gain max) is +8dBu / -40dBu.
