SM Professional

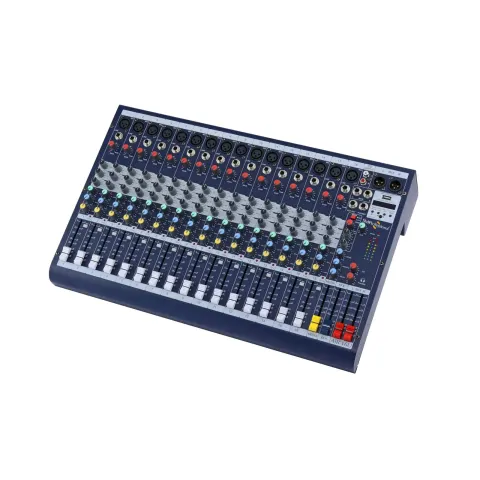

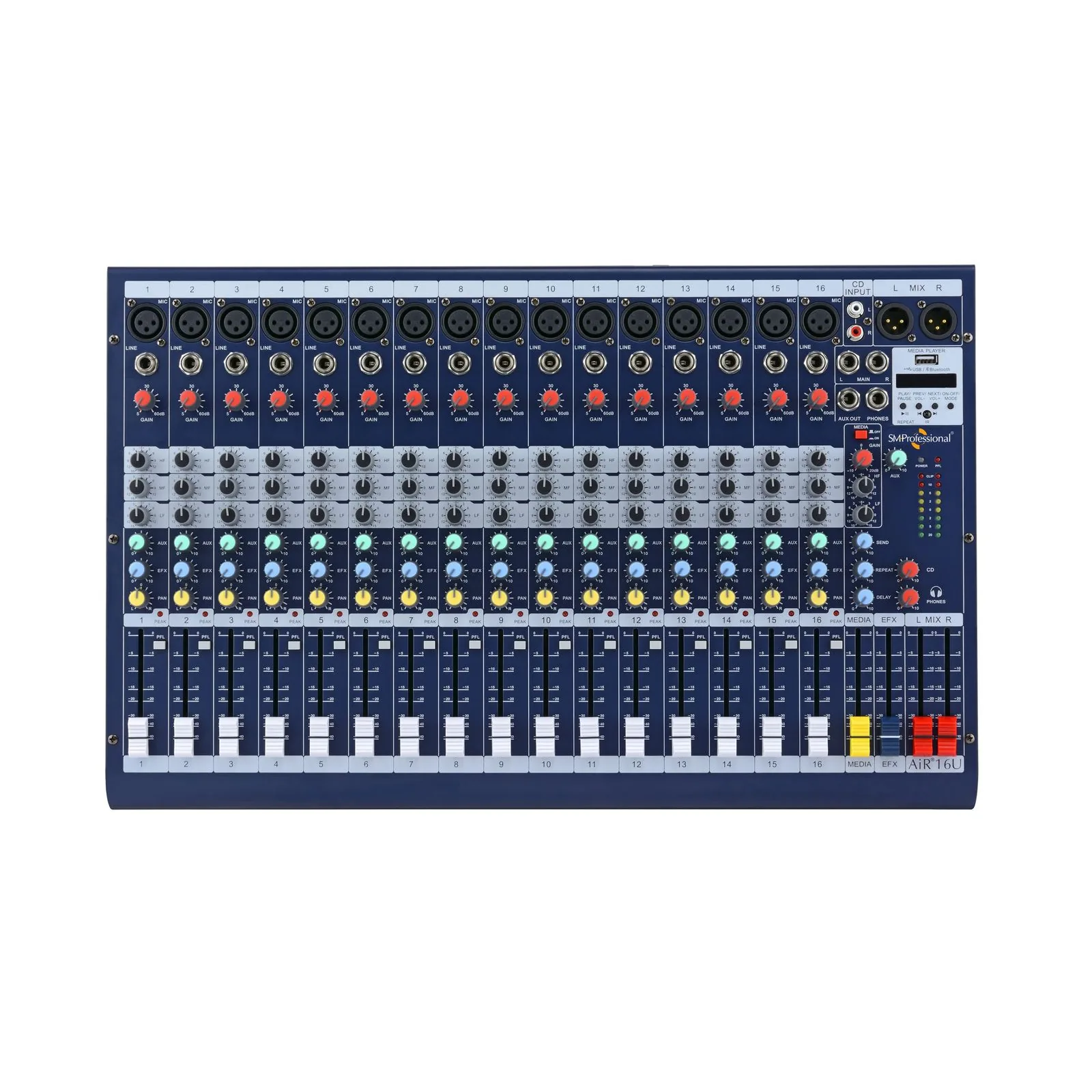

AiR 16U
- Series
- AiR U Series
- Category
- Mixers
- Category
- Analog Mixers
The SM Professional AiR U Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability.
Features
- 16 Mic / Line with high quality USB MP3 Player and Bluetooth on board.
- USB MP3 Player on AiR 16U plays & displays track numbers & is supplied with a remote.
- 3 Band EQ per channel.
- 1 Aux send.
- PFL (Cue) Switch with individual channel control
- L/R pan pot and clip LED per channel.
- Stereo RCA CD input with Control.
- Delay EFX on board & FX send per channel.
- Headphone output with level control.
- Balanced XLR & ¼” Jack Master Output.
Specifications, Q&A and videos
| Series | AiR U Series |
|---|---|
| Number of Inputs | 16 + CD In |
| Gain (Mic/Line) | 60dB/40dB |
| Mic (Gain Min/Gain Max) | -5dBu / -60dBu |
| Line (Gain Min /Gain Max) | +6dBu / -40dBu |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-3 dB) |
| Total Harmonic Distortion | < 0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80Hz |
| EFX | Delay with repeat |
| Power Supply | AC 240 V/50Hz |
| Dimensions (W x D x H in mm) | 522 x 334 x 107 |
| Net Weight (Kgs.) | 5.8 |
The AiR 16U is an SM Professional AiR mixers with built-in USB media player in the AiR U Series. The SM Professional AiR U Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
16 Mic / Line with high quality USB MP3 Player and Bluetooth on board; USB MP3 Player on AiR 16U plays & displays track numbers & is supplied with a remote; 3 Band EQ per channel; 1 Aux send; PFL (Cue) Switch with individual channel control; L/R pan pot and clip LED per channel.
The AiR 16U number of inputs is 16 + CD In.
The AiR 16U gain (mic/line) is 60dB/40dB.
The AiR 16U mic (gain min/gain max) is -5dBu / -60dBu.
The AiR 16U line (gain min /gain max) is +6dBu / -40dBu.
The AiR 16U main output level (nominal / max) is +0dBu (0.775V RMS) / +20dBu (7.75V RMS).
