SM Professional
Palladium 1842
- Category
- Mixers
- Category
- Analog Mixers

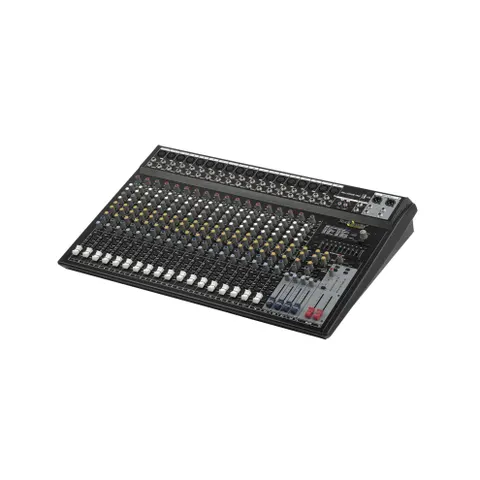

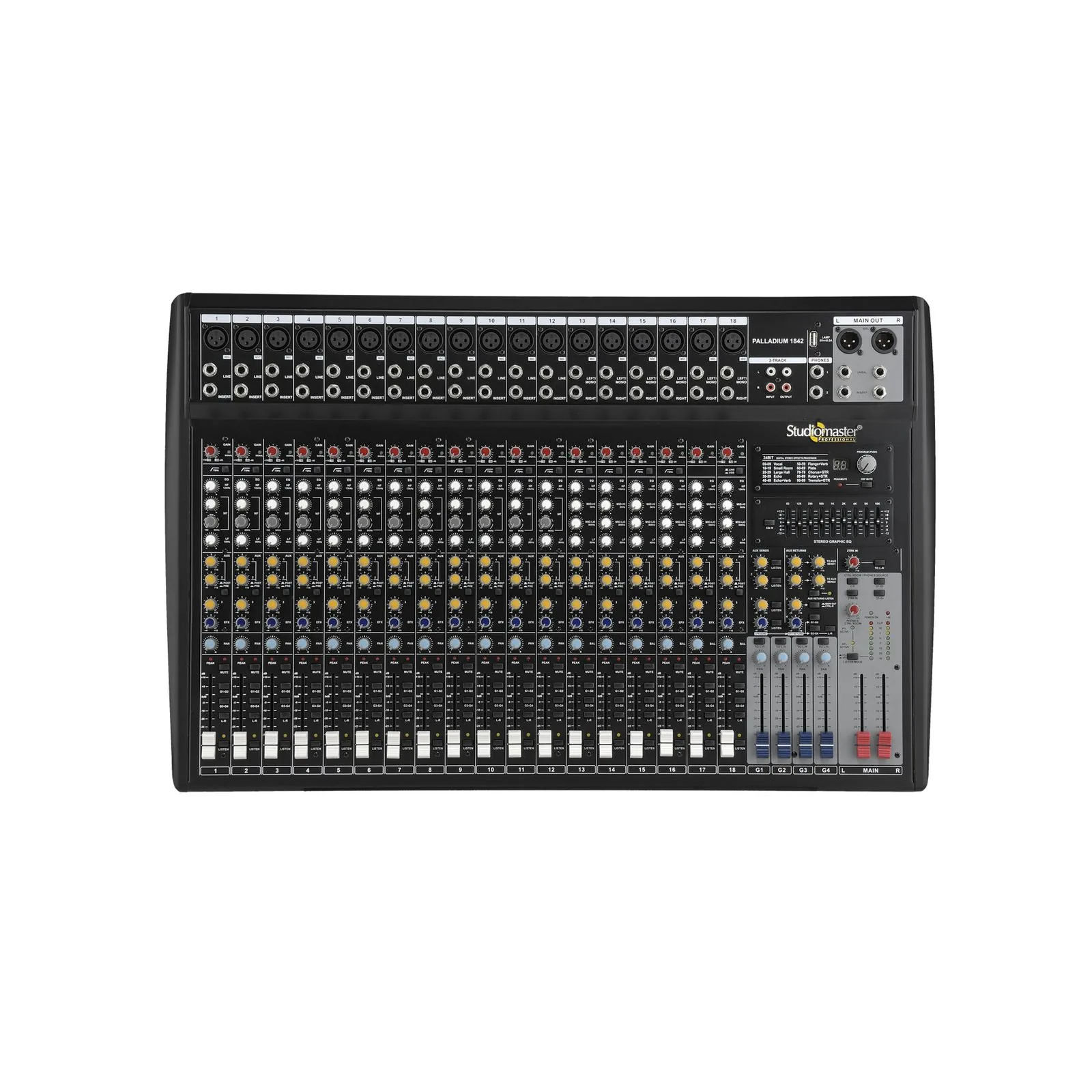

The Palladium 1842 – 24 input Mixer designed for high end Professional sound applications.
Ideal for live, front-of-house and touring audio applications.
Features
- Premium 24 Input Mixer (18 Mic + 6 Stereo) with state of the art pre amps.
- 3 band EQ with mid-sweep on Mono Inputs, 4 band EQ on Stereo.
- Channel inserts & direct outs on each Mono Channel.
- Low cut switch on each Channel.
- Line/USB selections on Stereo channel.
- Sub group & main L-R signal assignment switches on each channel.
- 4 Aux sends per channel: 2 Pre / Post & 2 Post.
- High Quality 24 bit Digital EFX Processor.
- USB Interface with playback and record.
- Globally switched +48V phantom power.
- 4 Group output with fader and individual inserts.
- Separate mono output with level control.
- Stereo playback input/rec out RCA jack.
- Separate control room output.
- Standard USB type lamp socket.
- Balanced XLR & 1/4” jack master outputs.
Specifications, Q&A and videos
| Series | Palladium Series |
|---|---|
| Max Gain (Mic/Line/Stereo Mic/Stereo Line) | 80dB, 60dB, 70dB, 50dB |
| Mic (Gain Min/Gain Max) | -10dB/-60dBu |
| Line (Gain Min /Gain Max) | +10dB/-40dB |
| Stereo Line (Gain Min /Gain Max) | +10dBu/-30dBu |
| Stereo Mic (Gain Min/Gain Max) | -10dB/-50dB |
| Mic Input | > 5KΩ |
| Line input | > 20KΩ |
| Aux Return Input | > 20KΩ |
| Tape Record Inputs | > 20KΩ |
| Frequency Response | 20Hz to 20KHz (+0/-2dB) |
| Total Harmonic Distortion | <0.006% |
| Mono MIC (Treble/Mid with Sweep/Bass) | ±15dB @12KHz / 100Hz to 8KHz / 80Hz |
| Stereo Line (Treble/Mid-Hi/Mid-Low/Bass) | ±15dB @12KHz / 3KHz / 500Hz /80Hz |
| Phantom Supply | +48V |
| Power Supply | 150V-240V~50Hz, 60W max |
| Dimensions (W x D x H in mm) | 695 x 455 x 115mm |
| Net Weight (Kgs.) | 10 |
The Palladium 1842 is an SM Professional Mixer. The Palladium 1842 – 24 input Mixer designed for high end Professional sound applications. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Premium 24 Input Mixer (18 Mic + 6 Stereo) with state of the art pre amps; 3 band EQ with mid-sweep on Mono Inputs, 4 band EQ on Stereo; Channel inserts & direct outs on each Mono Channel; Low cut switch on each Channel; Line/USB selections on Stereo channel; Sub group & main L-R signal assignment switches on each channel.
The Palladium 1842 series is Palladium Series.
The Palladium 1842 max gain (mic/line/stereo mic/stereo line) is 80dB, 60dB, 70dB, 50dB.
The Palladium 1842 mic (gain min/gain max) is -10dB/-60dBu.
The Palladium 1842 line (gain min /gain max) is +10dB/-40dB.
The Palladium 1842 stereo line (gain min /gain max) is +10dBu/-30dBu.
