SM Professional
Orb 822 SC
- Channels
- 8 Channels
- Series
- Orb Series
- Category
- Mixers
- Category
- Analog Mixers

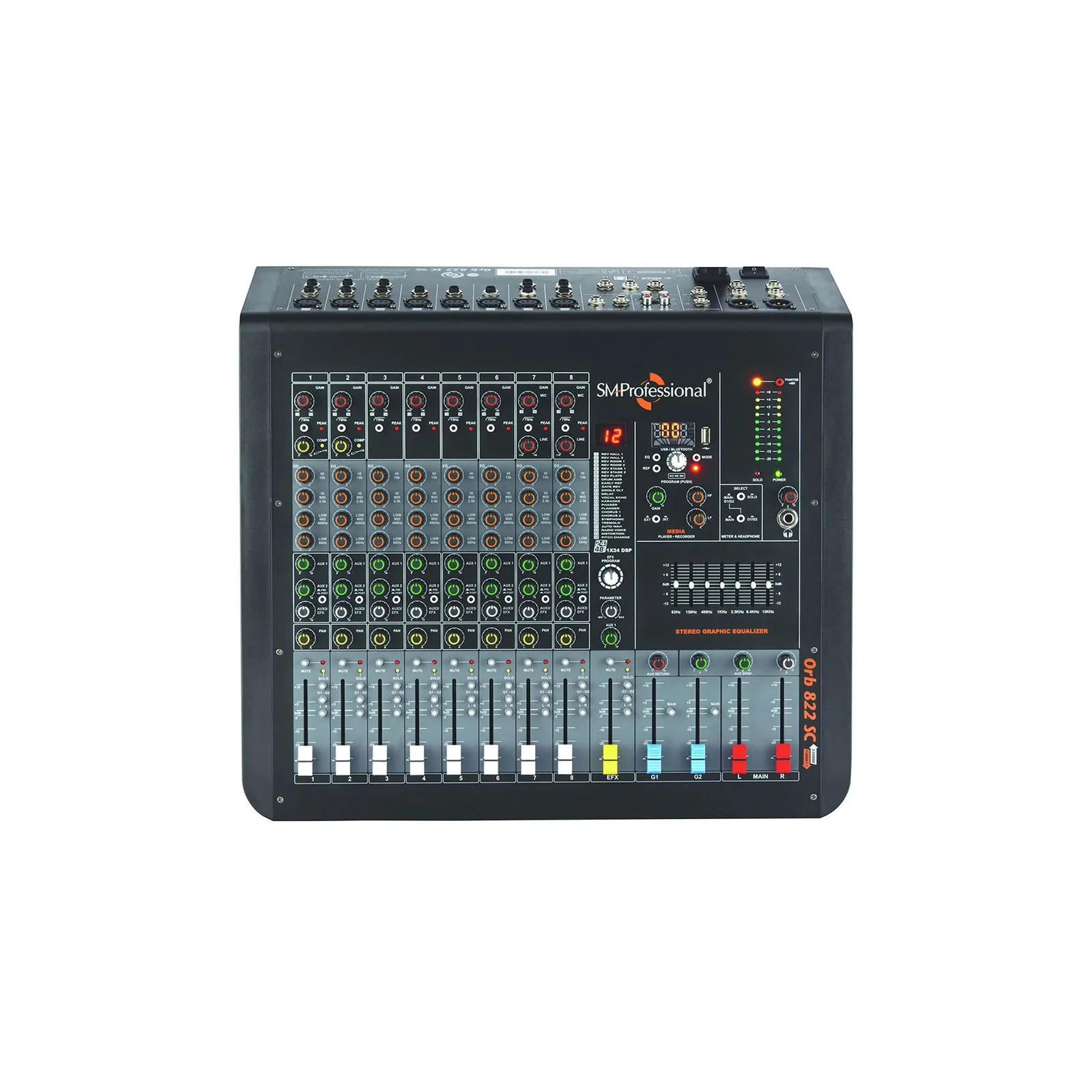

The Orb 822 SC is a compact 8 channel mixer with dual functionality of playback and recording on a pen drive or on a PC via USB audio interface, One Knob compression, DSP-based multi-EFX processor and a host of professional-grade features for live, install and recording applications.
Features
- Professional 8 channel audio mixing console with 8 mic / 10 line inputs.
- MON:Ster (mono-stereo) inputs for full flexibility.
- Gain with ultra low-noise preamps with wide headroom and dynamic range.
- One Knob Compressor on 2 channels.
- Built-in multi-EFX processor with 24 DSP presets and editable parameters.
- Provisions to route EFX to monitor via Aux 1.
- Dual USB audio interface with plug & play connectivity for recording and playback using a PC.
- USB MP3 media player & recorder with Bluetooth.
- Level control, 2-band EQ with internal/external media input selection.
- 4-band EQ on all inputs.
- Insert (send/return) on first 3 mono channels and master output.
- 3 Aux sends (2 pre/post & 1 post) with stereo Aux returns.
- 2 sub groups with individual ¼” outputs.
- Balanced XLR and ¼” jack main outputs.
- Mute, solo, group (G1-G2) and main (L-R) routing per channel.
- Peak, comp, mute and solo LEDs per channel.
- Stereo RCA input and record output.
- 7-band stereo graphic equalizer on main output.
- ¼” headphone output with level control.
- Globally switched +48V Phantom power supply.
- Responsive 60mm faders.
- Dual 10-segment LED meter for main, group and solo outputs.

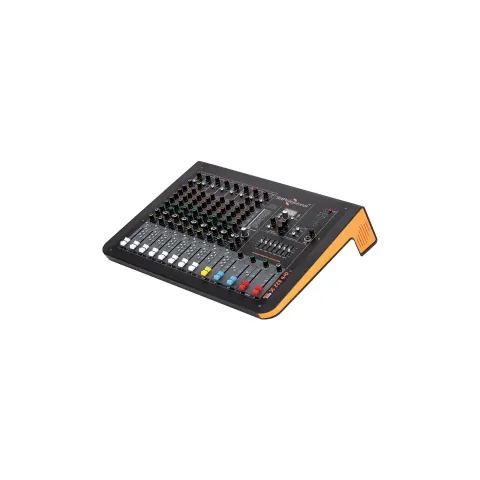

- Ergonomic angled-design for better visibility.

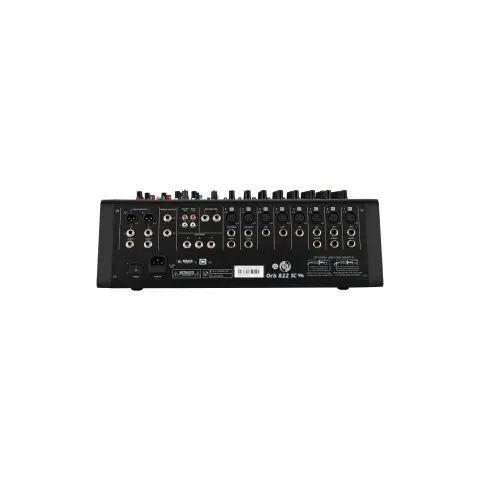

- Clutter-free rear panel input and output connectivity.
Specifications, Q&A and videos
| Series | Orb Series |
|---|---|
| Nominal Gain (Mic / Line / Stereo Line) | 60dB / 40dB / 20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB / 60dB / 40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Aux Return (Nominal / Max) | -10dBu / +30dBu |
| Main Output (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Insert In/Out (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Mic Input Impedance | 5 KΩ Balanced |
| Line Input Impedance | 20KΩ Balanced / 10KΩ Unbalanced |
| Frequency Response | 20Hz-20kHz (+0 / -1dB) |
| Total Harmonic Distortion | < 0.02% |
| MIC EIN (Equivalent Input Noise) | -128dB |
| Main Out/Group Out | -80dB |
| Mono MIC (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Stereo Line (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Dimension (W x D X H) mm | 500 x 490 x 160 |
| Net Weight | 6.5 |
The Orb 822 SC is an SM Professional 8 channel mixer in the Orb Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 8 channel audio mixing console with 8 mic / 10 line inputs; MON:Ster (mono-stereo) inputs for full flexibility; Gain with ultra low-noise preamps with wide headroom and dynamic range; One Knob Compressor on 2 channels; Built-in multi-EFX processor with 24 DSP presets and editable parameters; Provisions to route EFX to monitor via Aux 1.
The Orb 822 SC nominal gain (mic / line / stereo line) is 60dB / 40dB / 20dB.
The Orb 822 SC max gain (mic/line/stereo line) is 80dB / 60dB / 40dB.
The Orb 822 SC mic (gain min/gain max) is -10dBu / -60dBu.
The Orb 822 SC line (gain min /gain max) is +10dBu / -40dBu.
The Orb 822 SC stereo line (gain min /gain max) is +10dBu / -20dBu.
