SM Professional
Orb 402 SC
- Channels
- 4 Channels
- Series
- Orb Series
- Category
- Mixers
- Category
- Analog Mixers

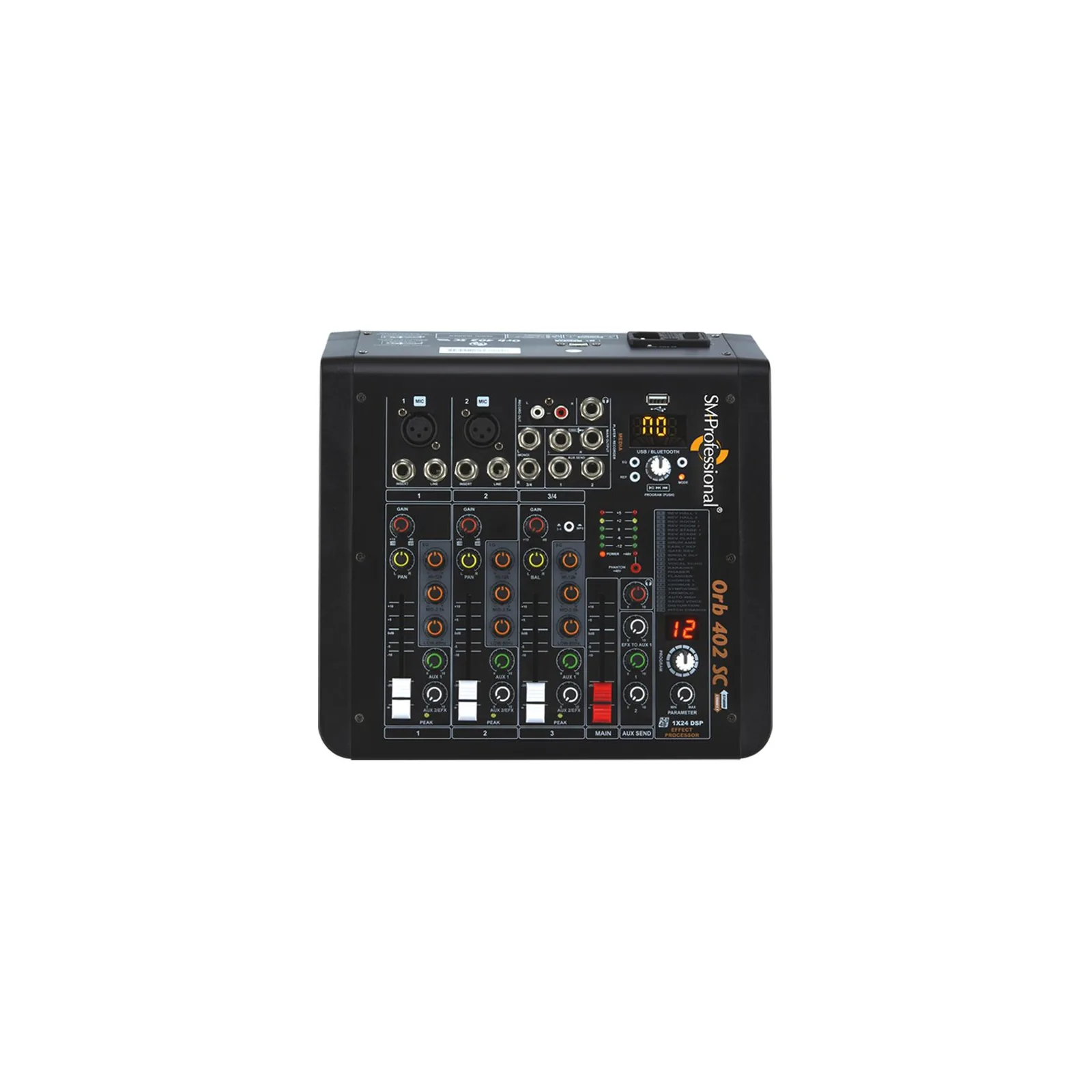

The Orb 402 SC is compact 4 channel mixer with dual functionality of playback and recording on a pen drive or on a PC via USB audio interface, DSP-based multi-EFX processor and host of professional-grade features ergonomically-designed for creators.
Features
- 2 mic/line & 1 stereo input.
- Gain with ultra low-noise preamps with wide headroom and dynamic range
- 3-band EQ on all inputs.
- Insert (send/return) on mono channels.
- 2 AUX send outputs.
- PAN/BAL (L/R), Peak (clip) LED and responsive faders.
- Built-in multi-EFX processor with 24 DSP presets and editable parameters.
- Provisions to route EFX to monitors via AUX 1 send.
- USB MP3 media player & recorder with Bluetooth.
- Dual USB audio interface with plug & play connectivity for recording and playback using a PC.
- ¼” jack main output.
- Stereo RCA record output.
- ¼” headphone output with level control.
- Globally switched +48V Phantom power supply.
- Dual 5-segment LED meter for monitoring.

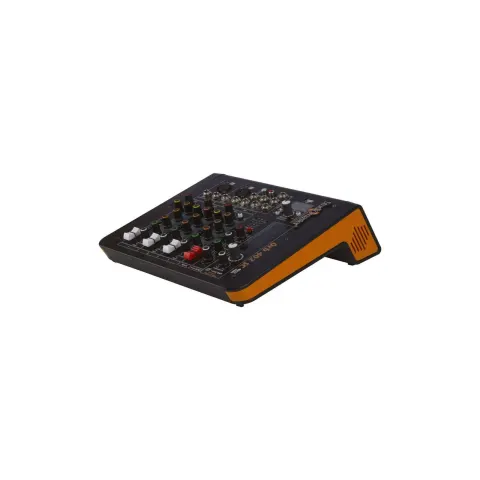

- Angled design, classy side cheeks and compact form factor for desktop use
- Ideal for musicians, podcasters, content creators, YouTubers, audio conferencing applications and more.
Specifications, Q&A and videos
| Series | Orb Series |
|---|---|
| Nominal Gain (Mic / Line / Stereo Line) | 60dB / 40dB / 20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB / 60dB / 40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo (Gain Min /Gain Max) | +10dBu / -20dBu |
| Aux Return (Nominal / Max) | -10dBu / +30dBu |
| Main Output level (Nominal / Max) | 0dB / +20dB |
| Insert In/Out (Nominal / Max) | 0dB / +20dB |
| Mic Input Impedance | 3 KΩ Balanced |
| Line Input Impedance | 20KΩ Balanced / 10kHz Unbalanced |
| Frequency Response | 20Hz-20kHz (+0 / -1dB) |
| MIC EIN (Equivalent Input Noise) | -128dB |
| Main Out/Group Out | -80dB |
| Dimension (W x D X H) mm | 274 x 285 x 90 |
| Net Weight | 1.9 |
| Mono MIC (Hi / Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 80Hz |
| Stereo Line (Hi / Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 80Hz |
The Orb 402 SC is an SM Professional 4 channel mixer in the Orb Series. The Orb 402 SC is compact 4 channel mixer with dual functionality of playback and recording on a pen drive or on a PC via USB audio interface, DSP-based multi-EFX processor and. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
2 mic/line & 1 stereo input; Gain with ultra low-noise preamps with wide headroom and dynamic range; 3-band EQ on all inputs; Insert (send/return) on mono channels; 2 AUX send outputs; PAN/BAL (L/R), Peak (clip) LED and responsive faders.
The Orb 402 SC nominal gain (mic / line / stereo line) is 60dB / 40dB / 20dB.
The Orb 402 SC max gain (mic/line/stereo line) is 80dB / 60dB / 40dB.
The Orb 402 SC mic (gain min/gain max) is -10dBu / -60dBu.
The Orb 402 SC line (gain min /gain max) is +10dBu / -40dBu.
The Orb 402 SC stereo (gain min /gain max) is +10dBu / -20dBu.
