SM Professional

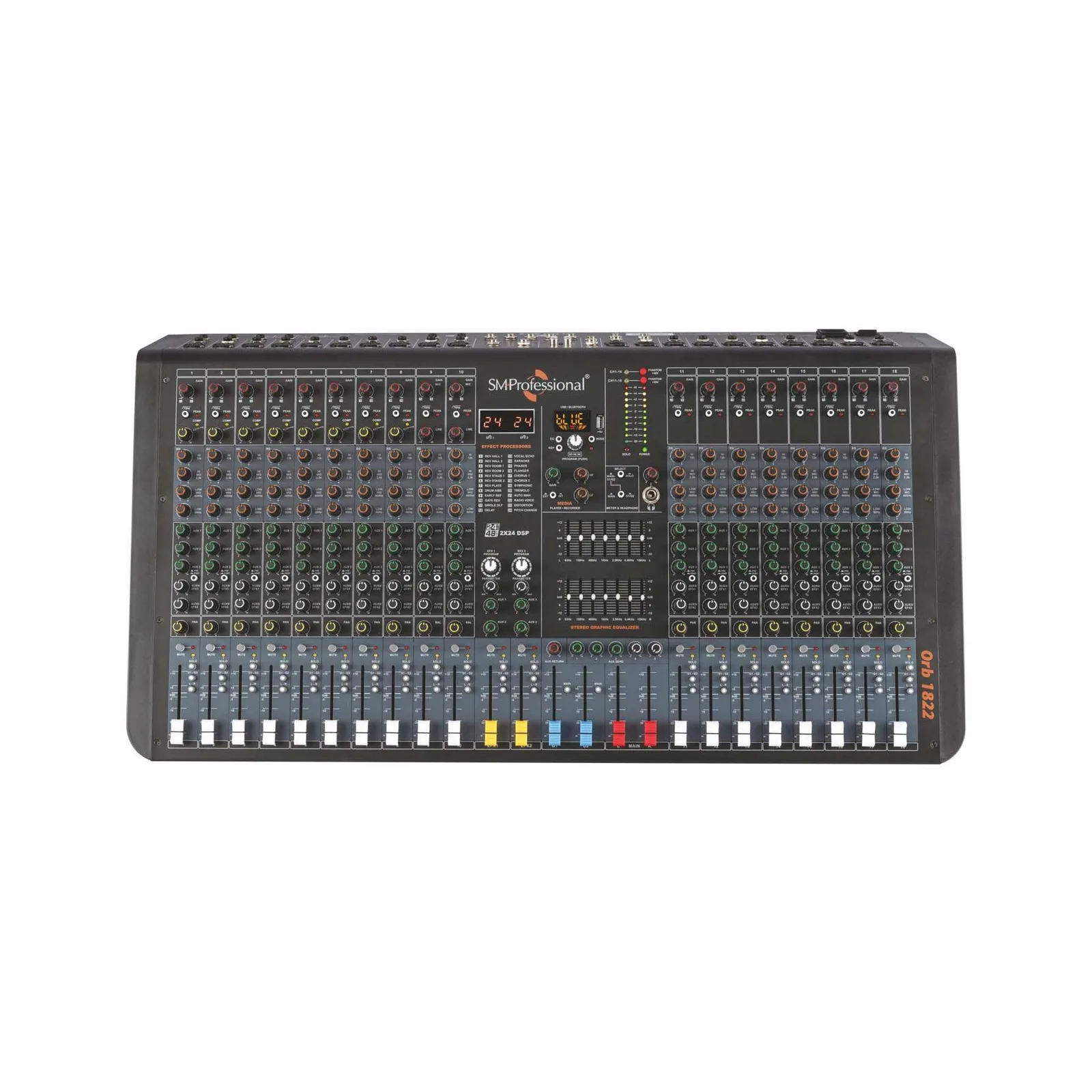

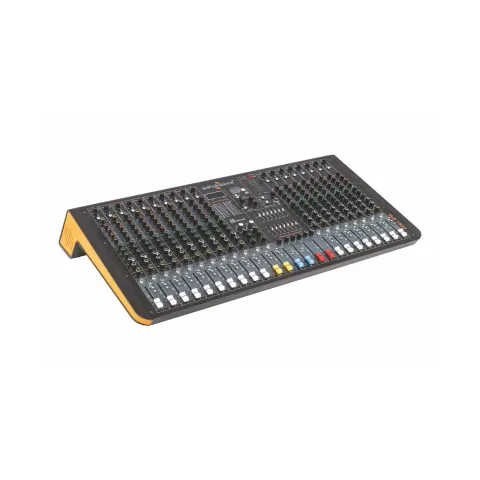

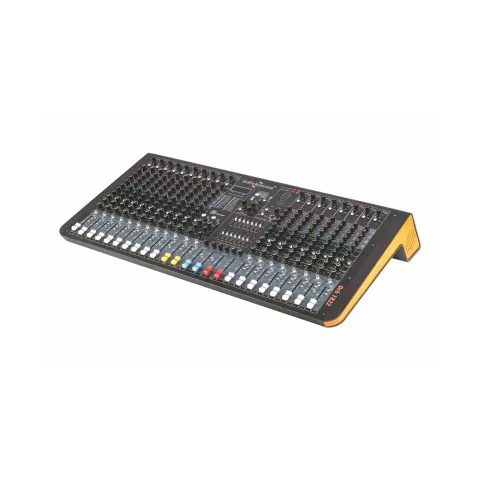

The SM Professional Orb 1822 is a premium mixing consoles integrating state-of-the-art One Knob compression, DSP-based dual multi-EFX processor, built-in USB MP3 media player and recorder and a host of inputs, outputs and routing options.
| Series | Orb Series |
|---|---|
| Nominal Gain (Mic / Line / Stereo Line) | 60dB / 40dB / 20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB / 60dB / 40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Aux Return (Nominal / Max) | -10dBu / +30dBu |
| Clip indication | 5dB prior to true clip |
| Main Output, Group Output, Aux Send, Record Out (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Insert In/Out (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Mic Input Impedance | 5KΩ Balanced |
| Line Input Impedance | 20KΩ Balanced / 10KΩ Unbalanced |
| Frequency Response | 20Hz-20kHz (+0 / -1dB) |
| Total Harmonic Distortion | < 0.02% |
| Cross-talk | -80dB |
| MIC EIN (Equivalent Input Noise) | -128dB |
| Main Out/Group Out | -80dB |
| Aux Send | -70dB |
| Record Out | -77dB |
| Mono MIC (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Stereo Line (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| 7-Band Stereo Equalizer | ±12dB @ 15kHz / 6.4kHz / 2.5kHz / 1kHz / 400Hz / 150Hz / 63Hz |
| Low Cut | -3dB @ 75Hz |
| Effects | 24-bit/48kHz Sampling Rate 2 x 24 DSP Presets |
| Phantom Supply | +48V |
| Power Supply | 150V-240V / 50Hz |
| Fuse | 2A 250V AC |
| Power Consumption | 22W Max |
| Dimensions (W x D x H) mm | 820 x 490 x 160 |
| Net Weight (Kg) | 13 |
The Orb 1822 is an SM Professional premium consoles with one-knob compression and dual multi-efx in the Orb Series. The SM Professional Orb 1822 is a premium mixing consoles integrating state-of-the-art One Knob compression, DSP-based dual multi-EFX processor, built-in USB MP3 media player and. Available from Mansukhlal Sales Corp, an authorized dealer.
MON:Ster (mono-stereo) inputs for full flexibility; One Knob Compressor on channels 1-8; Ultra low-noise preamps with wide headroom and dynamic range; Dual multi-EFX processor with 24 DSP presets and editable parameters; Provisions to route EFX to monitor via Aux 1 and Aux 2; Built-in USB MP3 media player and recorder with Bluetooth.
The Orb 1822 nominal gain (mic / line / stereo line) is 60dB / 40dB / 20dB.
The Orb 1822 max gain (mic/line/stereo line) is 80dB / 60dB / 40dB.
The Orb 1822 mic (gain min/gain max) is -10dBu / -60dBu.
The Orb 1822 line (gain min /gain max) is +10dBu / -40dBu.
The Orb 1822 stereo line (gain min /gain max) is +10dBu / -20dBu.
