SM Professional
Orb 622 SC
- Channels
- 6 Channels
- Series
- Orb Series
- Category
- Mixers
- Category
- Analog Mixers

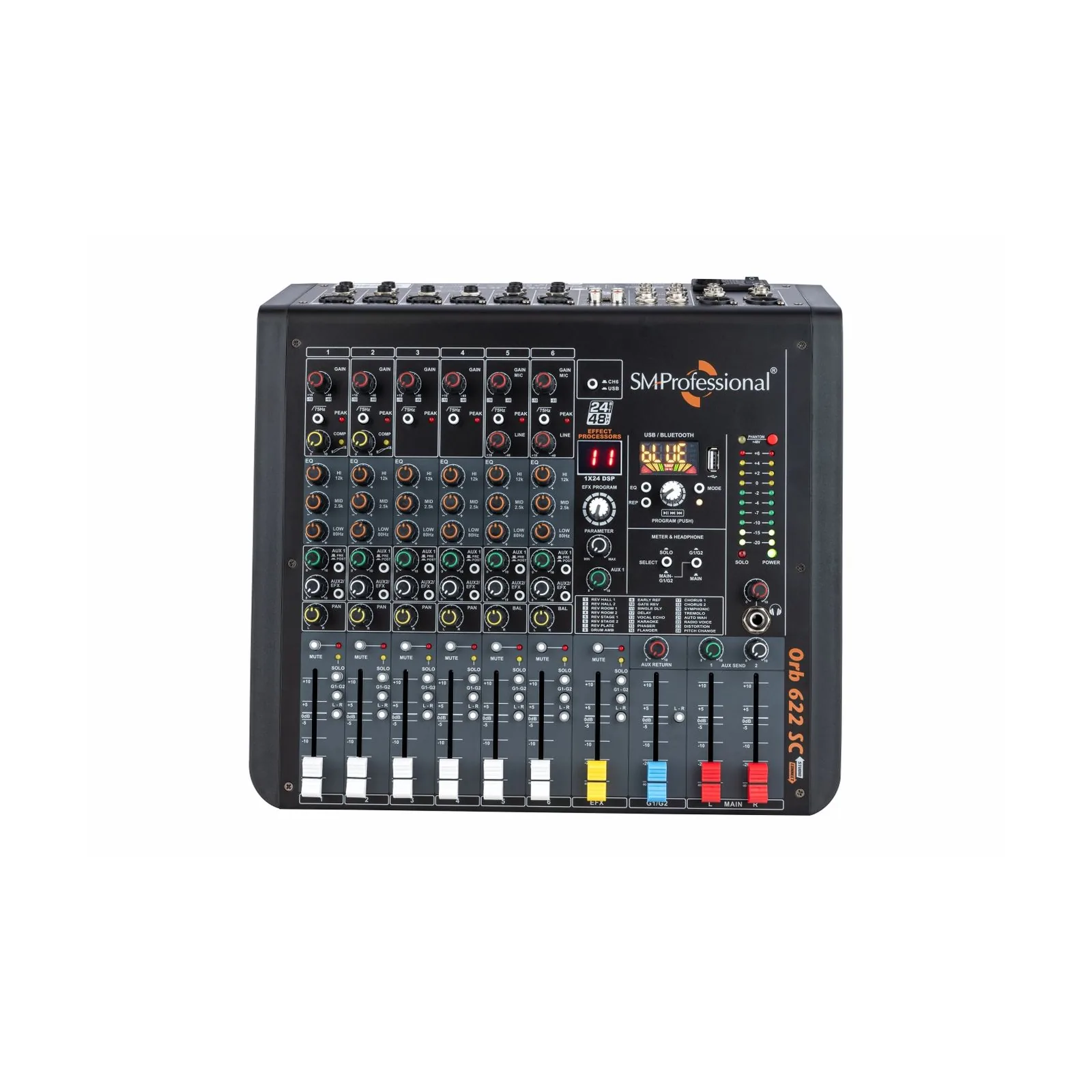

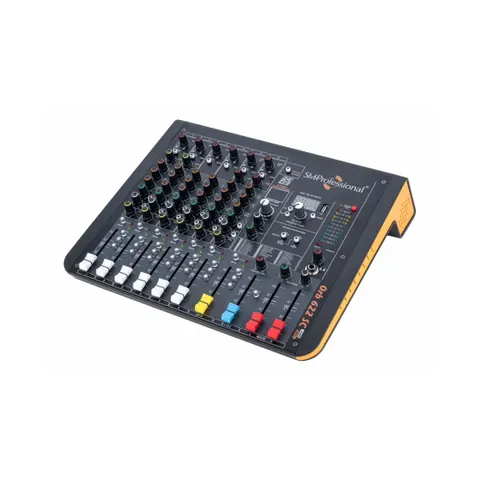

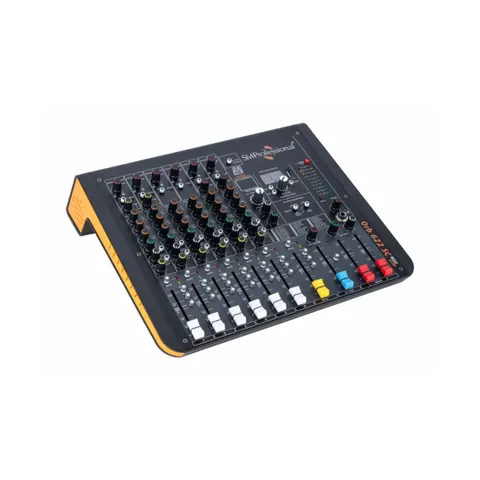

The SM Professional Orb 622 SC is a compact 6 channel live mixer from the premium Orb series mixing consoles.
Featuring 6 mic inputs, 2 AUX busses, One Knob Compressors (on 2 channels), USB media player with Bluetooth, dual USB audio interface phantom power supply and more, the Orb 622 SC is a value-driven console for compact mixing applications.
Features
- 6 channels: 6 mic / 8 line inputs.
- MON:Ster (mono-stereo) inputs for full flexibility.
- One Knob Compressor on 2 channels.
- Ultra low-noise preamps with wide headroom and dynamic range.
- Built-in multi-EFX processor with 24 DSP presets and editable parameters.
- Provisions to route EFX to monitor via Aux 1.
- Built-in USB MP3 media player and recorder with Bluetooth.
- Dual USB audio interface with plug & play connectivity for recording and playback using a PC.
- 75Hz low cut on all channels.
- 3-band EQ on all inputs.
- 2 Aux sends – 2 pre/post and 1 post / EFX.
- Stereo AUX returns.
- Balanced XLR and 1/4” jack main outputs.
- 2 sub groups with individual 1/4” outputs.
- Insert (send/return) on the first 2 mono channels and main output.
- Mute, solo, group (G1-G2) and main (L-R) routing per channel.
- Peak, comp, mute and solo LEDs per channel.
- Comp LED on first two mono channels.
- Stereo RCA input and record output.
- Headphone output with level control.
- Globally switched +48V phantom power supply.
- Responsive 60mm faders.
- Dual 10-segment LED meter for main, group and solo outputs.
- Ergonomic angled-design for better visibility.

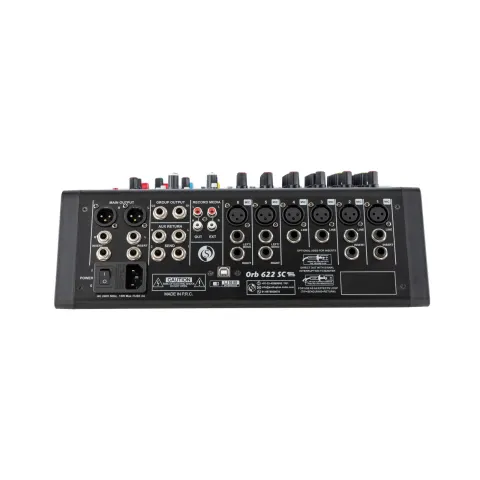

- Clutter-free rear panel input and output connectivity.
Specifications, Q&A and videos
| Series | Orb Series |
|---|---|
| Nominal Gain (Mic / Line / Stereo Line) | 60dB / 40dB / 20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB / 60dB / 40dB |
| Mic (Gain Min / Gain Max) | -10dBu / -60dBu |
| Line (Gain Min / Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min / Gain Max) | +10dBu / -20dBu |
| Aux Return (Nominal / Max) | -10dBu / +30dBu |
| Main Output (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Insert In/Out (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Mic Input Impedance | 5 KΩ Balanced |
| Line Input Impedance | 20KΩ Balanced / 10KΩ Unbalanced |
| Frequency Response | 20Hz-20kHz (+0 / -1dB) |
| Total Harmonic Distortion | < 0.02% |
| Mono MIC (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Main Out/Group Out | -80dB |
| Stereo Line (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Dimensions (W x D x H) mm | 370 x 355 x 100 |
| Net Weight (Kg) | 4 |
The Orb 622 SC is an SM Professional Premium consoles with one-knob compression and dual multi-EFX in the Orb Series. The SM Professional Orb 622 SC is a compact 6 channel live mixer from the premium Orb series mixing consoles. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 channels: 6 mic / 8 line inputs; MON:Ster (mono-stereo) inputs for full flexibility; One Knob Compressor on 2 channels; Ultra low-noise preamps with wide headroom and dynamic range; Built-in multi-EFX processor with 24 DSP presets and editable parameters; Provisions to route EFX to monitor via Aux 1.
The Orb 622 SC nominal gain (mic / line / stereo line) is 60dB / 40dB / 20dB.
The Orb 622 SC max gain (mic/line/stereo line) is 80dB / 60dB / 40dB.
The Orb 622 SC mic (gain min / gain max) is -10dBu / -60dBu.
The Orb 622 SC line (gain min / gain max) is +10dBu / -40dBu.
The Orb 622 SC stereo line (gain min / gain max) is +10dBu / -20dBu.
