SM Professional

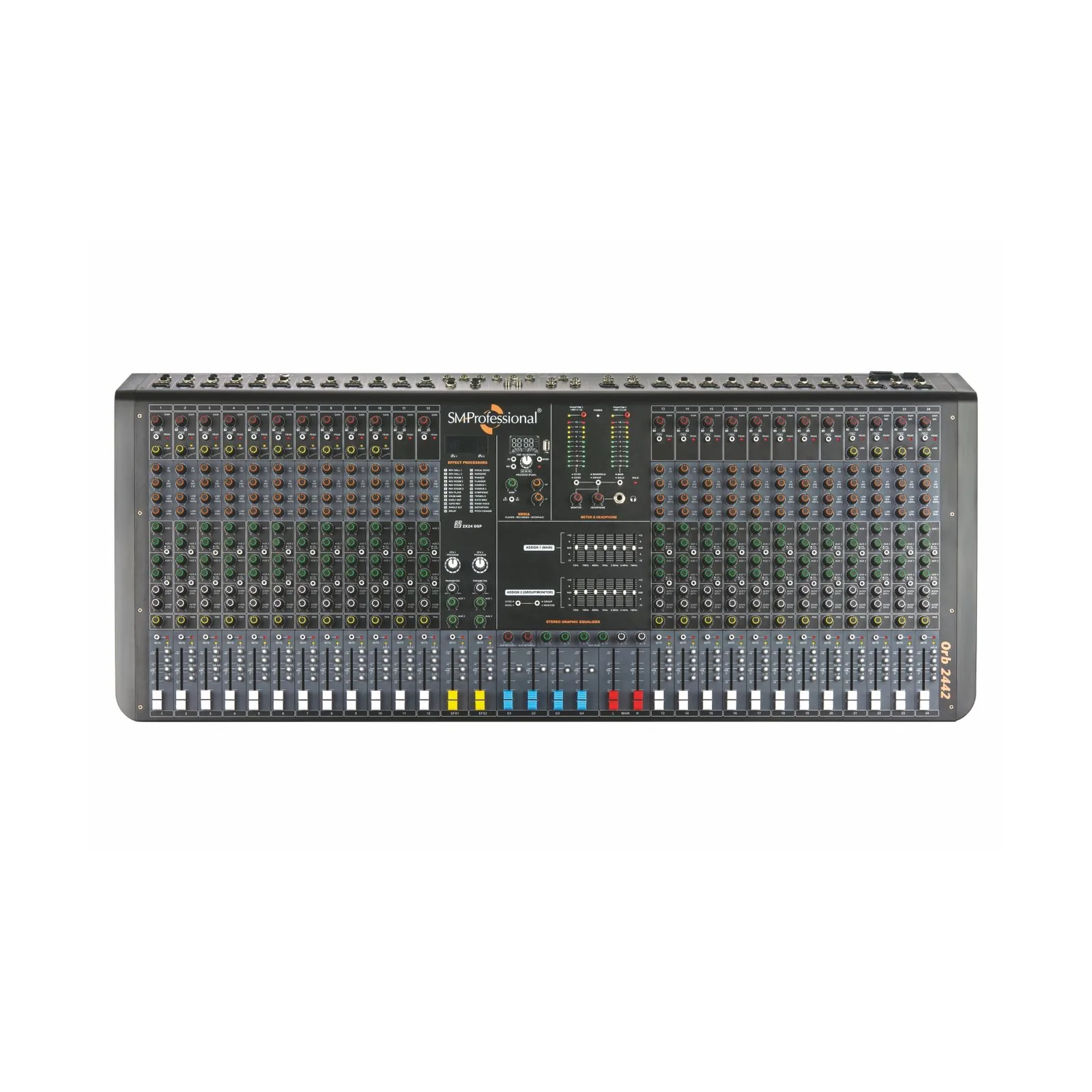

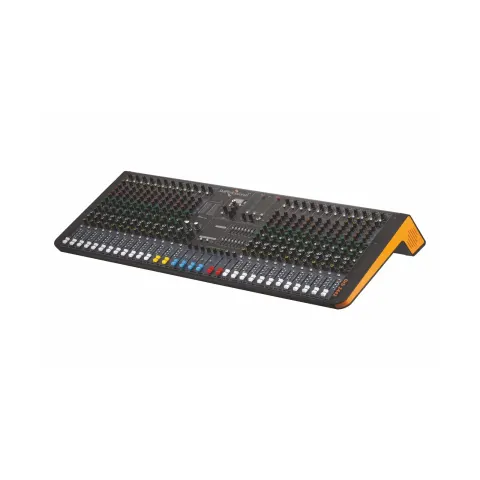

Orb 2442
- Series
- Orb Series
- Category
- Mixers
- Category
- Analog Mixers
The SM Professional Orb series is a range of premium mixing consoles integrating state-of-the-art One Knob compression, DSP-based dual multi-EFX processor, built-in USB MP3 media player and recorder and a host of inputs, outputs and routing options.
Features
- 24 mic / 28 line inputs
- MON:Ster (mono-stereo) inputs for full flexibility.
- Ultra low-noise preamps with wide headroom and dynamic range.
- 75Hz low cut on mono channels.
- 4-band EQ on all inputs.
- 6 Aux sends – 4 pre/post and 2 post.
- 4 sub groups with individual 1⁄4” outputs.
- Insert (send/return) on first 6 mono channels and main output.
- Globally switched +48V phantom power supply.
- Responsive 60mm faders.
- One Knob Compressor on channels 1-10.
- Dual multi-EFX processor with 24 DSP presets and editable parameters.
- Provisions to route EFX to monitor via Aux 1 and Aux 2.
- Built-in USB MP3 media player and recorder with Bluetooth.
- USB audio interface with plug & play connectivity for recording and playback using a PC.
- Level control, 2-band EQ with internal/external media input selection.
- Stereo AUX returns.
- Balanced XLR and 1⁄4” jack main outputs.
- Mute, solo, group and main (L-R) routing per channel.
- Peak, comp, mute and solo LEDs per channel.
- Stereo RCA input and record output.
- Headphone output with level control.
- Dual Assignable 7-Band Stereo Graphic Equalizers.
- Dual Assignable 10-Segment LED Meters for Main, Group and Solo Outputs.
- Ergonomic angled-design for better visibility.

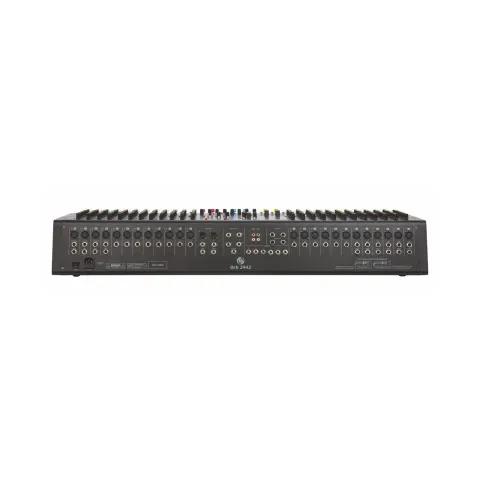

- Clutter-free rear panel input and output connectivity.
Specifications, Q&A and videos
| Series | Orb Series |
|---|---|
| Nominal Gain (Mic / Line / Stereo Line) | 60dB / 40dB / 20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB / 60dB / 40dB |
| Mic (Gain Min / Gain Max) | -10dBu / -60dBu |
| Line (Gain Min / Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min / Gain Max) | +10dBu / -20dBu |
| Aux Return (Nominal / Max) | -10dBu / +30dBu |
| Main Output (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Insert In/Out (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Mono MIC (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Stereo Line (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Mic Input Impedance | 5 KΩ Balanced |
| Line Input Impedance | 20KΩ Balanced / 10KΩ Unbalanced |
| Frequency Response | 20Hz-20kHz (+0 / -1dB) |
| Total Harmonic Distortion | < 0.02% |
| MIC EIN (Equivalent Input Noise) | -128dB |
| Main Out/Group Out | -80dB |
| Dimension (W x D X H) mm | 1070 x 490 x 160 |
| Net Weight (Kg) | 14 |
The Orb 2442 is an SM Professional Premium consoles with one-knob compression and dual multi-EFX in the Orb Series. The SM Professional Orb series is a range of premium mixing consoles integrating state-of-the-art One Knob compression, DSP-based dual multi-EFX processor, built-in USB MP3 media. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
24 mic / 28 line inputs; MON:Ster (mono-stereo) inputs for full flexibility; Ultra low-noise preamps with wide headroom and dynamic range; 75Hz low cut on mono channels; 4-band EQ on all inputs; 6 Aux sends – 4 pre/post and 2 post.
The Orb 2442 nominal gain (mic / line / stereo line) is 60dB / 40dB / 20dB.
The Orb 2442 max gain (mic/line/stereo line) is 80dB / 60dB / 40dB.
The Orb 2442 mic (gain min / gain max) is -10dBu / -60dBu.
The Orb 2442 line (gain min / gain max) is +10dBu / -40dBu.
The Orb 2442 stereo line (gain min / gain max) is +10dBu / -20dBu.
