Ahuja
N18-SW1800
- Power
- 1800 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

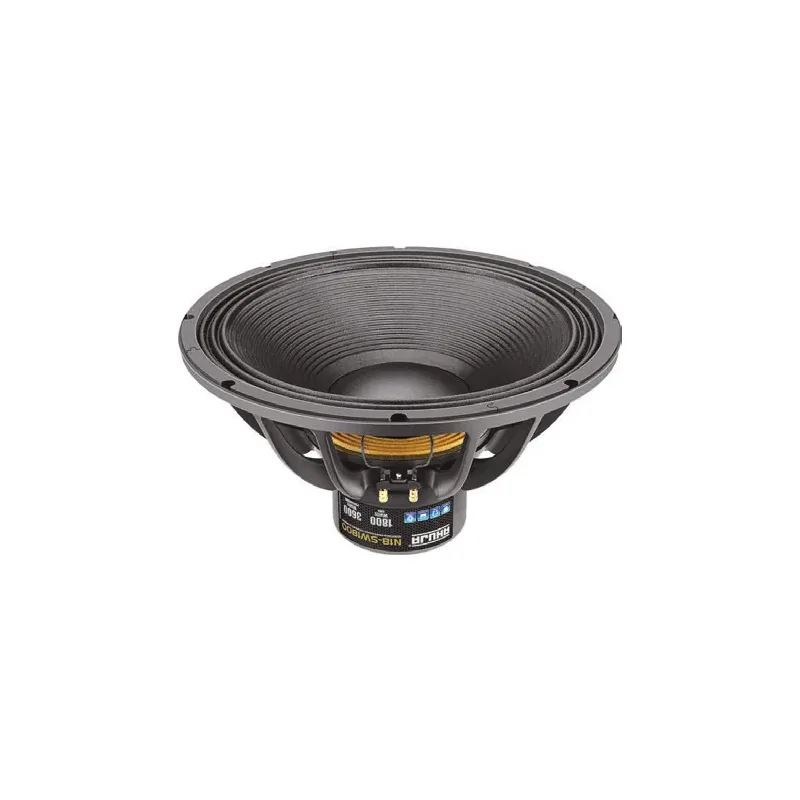

The Ahuja N18-SW1800 is a 1800W super power 18” extended low frequency speaker with a powerful and efficient neodymium speaker with extended low frequency response.
It has a robust aluminium die-cast frame with vents for efficient heat dissipation.
Features
- Powerful and efficient Neodymium speaker with extended low frequency response.
- Robust aluminium die-cast frame with vents for efficient heat dissipation.
- 11.43 cm (4.5") Aluminium I/O voice coil wound on Glass Fibre former to withstand high temperature.
Specifications, Q&A and videos
| Power Rating | 1800W RMS/3600W Programme |
|---|---|
| Nominal Diameter | 460 mm (18”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 99dB |
| Resonant FREQUENCY (Fs) | 35Hz |
| DC resistance (Re) | 5.6Ω |
| Electromagnetic Q (Qes) | 0.22 |
| Mechanical Q (Qms) | 14.63 |
| Total Q (Qts) | 0.21 |
| Compliance Equivalent Volume (VAS) | 330Litr |
| Surface Area of Cone | (Sd) 1288cm2 |
| Reference Efficiency | (ηo) 4.88% |
| Voice Coil | 4.5” |
| Overhang (Xmax) | 18.0 mm |
| Moving Mass (Mms) | 170.6gm |
| BL Product | (BL) 28.6TM |
| Coil Inductance (Le) | 1.82mH |
| Overall Diameter | 462 mm |
| Depth | 255 mm |
| Baffle Hole Diameter | 428 mm |
| Bolt Mount Diameter (PCD) | 446 mm (8 Bolts) |
| Weight | 12.40kg |
The N18-SW1800 is an Ahuja super power 18” extended low frequency speaker in the LF Speakers. The Ahuja N18-SW1800 is a 1800W super power 18” extended low frequency speaker with a powerful and efficient neodymium speaker with extended low frequency response. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Powerful and efficient Neodymium speaker with extended low frequency response; Robust aluminium die-cast frame with vents for efficient heat dissipation; 11.43 cm (4.5") Aluminium I/O voice coil wound on Glass Fibre former to withstand high temperature.
The N18-SW1800 nominal diameter is 460 mm (18”).
The N18-SW1800 nominal impedance is 8Ω.
The N18-SW1800 sensitivity (1w/1m ) is 99dB.
The N18-SW1800 resonant frequency (fs) is 35Hz.
The N18-SW1800 dc resistance (re) is 5.6Ω.
