Ahuja
MX-15
- Category
- Mixers
- Category
- Compact Mixers

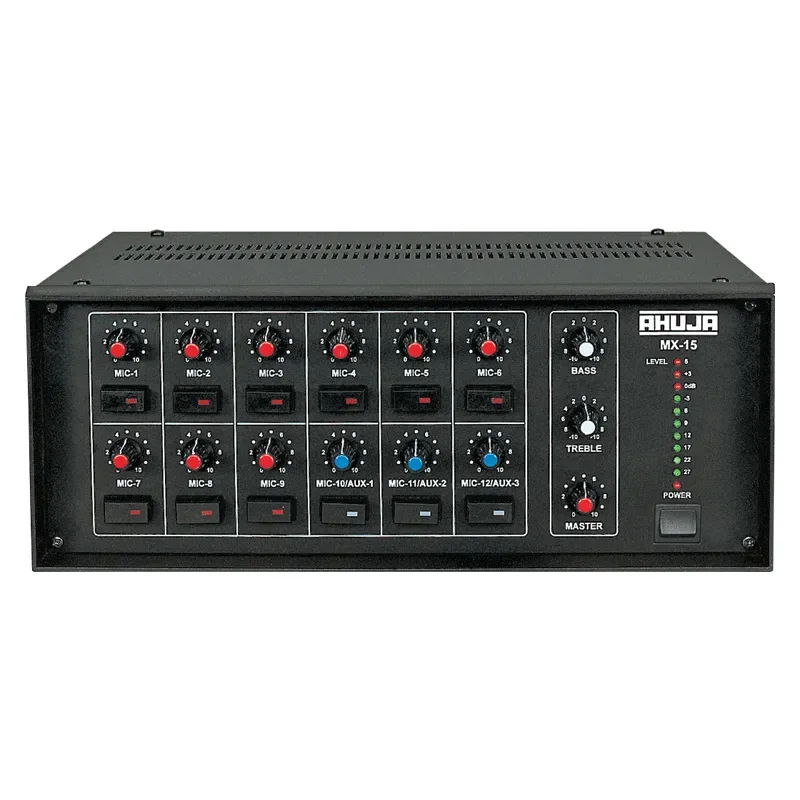

The Ahuja MX-15 is a PA analog mixer. 4 Line outputs for connecting a number of Amplifiers or Boosters.
All inputs with On/Off switches with LED display.
Features
- General Purpose 12 Channel PA Mixer Preamplifier
- 12 Mic & 3 Aux Inputs.
- All inputs with On/Off switches with LED display.
- Master control for overall adjustment.
- 4 Line outputs for connecting a number of Amplifiers or Boosters.
- Headphone output for monitoring.
- Active Bass and Treble tone controls.
Specifications, Q&A and videos
| Power Requirement | AC: 220-240v 50/60Hz, DC: 12V (1×12V Car Battery) |
|---|---|
| Outputs | 2 × Preamp 200mV/600Ω, 4 × Line 1V/1kΩ, 1 × Headphone 120mV@ 8Ω |
| Frequency Response | 20-20,000Hz (±3dB) |
| Distortion | < 1% |
| Signal to Noise Ratio | 50dB |
| Input Channels | 12 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Aux 500mV/100kΩ |
| Tone Controls | Bass: ± 10dB at 100Hz, Treble: ± 10dB at 10kHz |
| Dimensions | W350 × H145 × D200 mm |
| Weight | 3.9kg |
The MX-15 is an Ahuja PA analog mixer. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
General Purpose 12 Channel PA Mixer Preamplifier; 12 Mic & 3 Aux Inputs; All inputs with On/Off switches with LED display; Master control for overall adjustment; 4 Line outputs for connecting a number of Amplifiers or Boosters; Headphone output for monitoring.
The MX-15 power requirement is AC: 220-240v 50/60Hz, DC: 12V (1×12V Car Battery).
The MX-15 outputs is 2 × Preamp 200mV/600Ω, 4 × Line 1V/1kΩ, 1 × Headphone 120mV@ 8Ω.
The MX-15 frequency response is 20-20,000Hz (±3dB).
The MX-15 distortion is < 1%.
The MX-15 signal to noise ratio is 50dB.
