Ahuja
DMX-22
- Series
- DMX Processors
- Category
- Processors
- Category
- Effects Processors

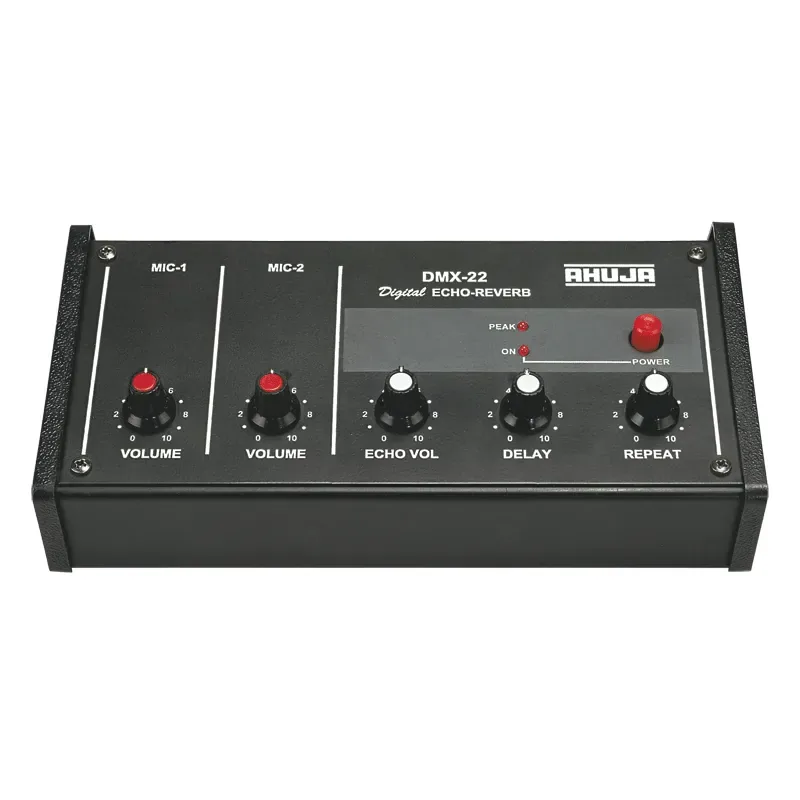

The Ahuja DMX-22 is a loudspeaker management system. Echo facility on all inputs through Echo volume, repeat and delay controls.
Adds colour to vocal and musical instruments.
Features
- 2 Channel Mixer Preamplifier for Echo, Reverb, Chorus, Effects
- Digital Signal Processing.
- Adds colour to vocal & musical instruments.
- Peak LED for setting optimum distortion free input levels.
- Echo facility on all inputs through Echo volume, repeat & delay controls.
Specifications, Q&A and videos
| Power Requirement | AC: 220-240V 50/60Hz, DC: 12V (1×12V Car Battery) |
|---|---|
| Outputs | Preamp: 200mV |
| Frequency Response | 20-20,000Hz (±3dB) |
| Distortion | < 1% |
| Signal to Noise Ratio | 40dB |
| Input Channels | 2 × Mic 0.6mV |
| Echo Reverb System | Digital Signal Processing |
| Dimensions | W220 × H60 × D120 mm |
| Weight | 1.2kg |
The DMX-22 is an Ahuja loudspeaker management system in the DMX Processors. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
2 Channel Mixer Preamplifier for Echo, Reverb, Chorus, Effects; Digital Signal Processing; Adds colour to vocal & musical instruments; Peak LED for setting optimum distortion free input levels; Echo facility on all inputs through Echo volume, repeat & delay controls.
The DMX-22 power requirement is AC: 220-240V 50/60Hz, DC: 12V (1×12V Car Battery).
The DMX-22 outputs is Preamp: 200mV.
The DMX-22 frequency response is 20-20,000Hz (±3dB).
The DMX-22 distortion is < 1%.
The DMX-22 signal to noise ratio is 40dB.
