Ahuja
DMX-40
- Series
- DMX Processors
- Category
- Processors
- Category
- Effects Processors

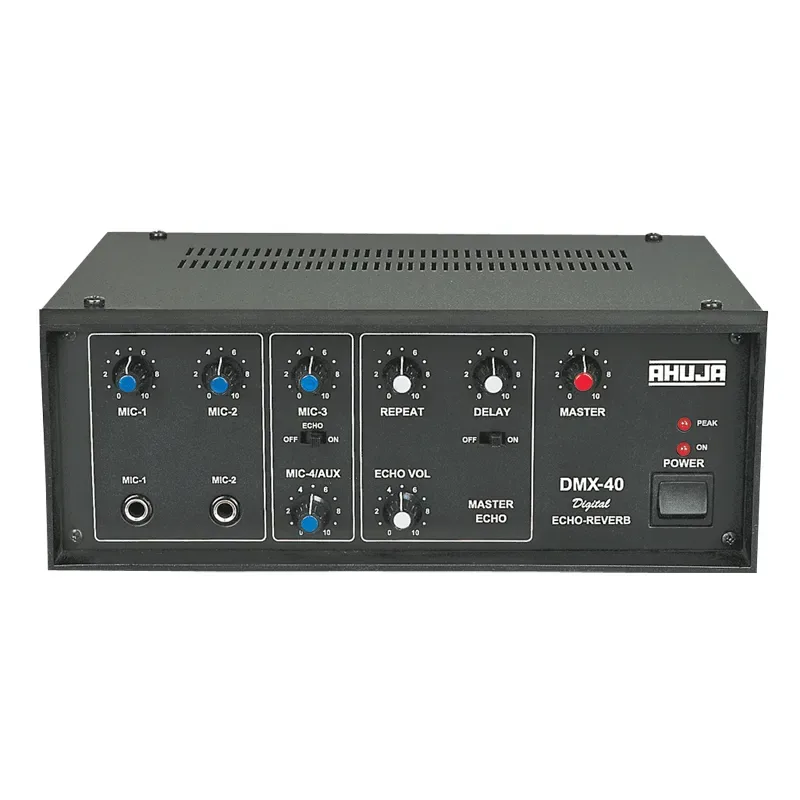

The Ahuja DMX-40 is a loudspeaker management system.
Echo facility on all inputs through Echo volume, repeat and delay controls.
Features
- 4 Channel Mixer Preamplifier for Echo, Reverb, Chorus Effect
- Digital Signal Processing.
- Compatible with Audio Mixing Consoles.
- Peak LED for setting optimum distortion free input levels.
- Echo facility on all inputs through Echo volume, repeat & delay controls.
Specifications, Q&A and videos
| Power Requirement | AC: 220-240V 50/60Hz, DC: 12V (1×12V Car Battery) |
|---|---|
| Outputs | Preamp: 200mV/2kΩ, Line: 775mV/10kΩ |
| Frequency Response | 20-20,000Hz (±3dB) |
| Distortion | < 1% |
| Signal to Noise Ratio | 45dB |
| Input Channels | 4 × Mic 0.7mV/10kΩ , 1 × Aux 200mV/470kΩ |
| Echo Reverb System | Digital Signal Processing |
| Delay Time | 20ms to 600ms |
| Dimensions | W280 × H100 × D170 mm |
| Weight | 2.4kg |
The DMX-40 is an Ahuja loudspeaker management system in the DMX Processors. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 Channel Mixer Preamplifier for Echo, Reverb, Chorus Effect; Digital Signal Processing; Compatible with Audio Mixing Consoles; Peak LED for setting optimum distortion free input levels; Echo facility on all inputs through Echo volume, repeat & delay controls.
The DMX-40 power requirement is AC: 220-240V 50/60Hz, DC: 12V (1×12V Car Battery).
The DMX-40 outputs is Preamp: 200mV/2kΩ, Line: 775mV/10kΩ.
The DMX-40 frequency response is 20-20,000Hz (±3dB).
The DMX-40 distortion is < 1%.
The DMX-40 signal to noise ratio is 45dB.
