SM Professional
MVC 8000
- Power
- 8000 WATTS
- Series
- MVC Series
- Category
- Power Supply
- Category
- Servo Stabilizers

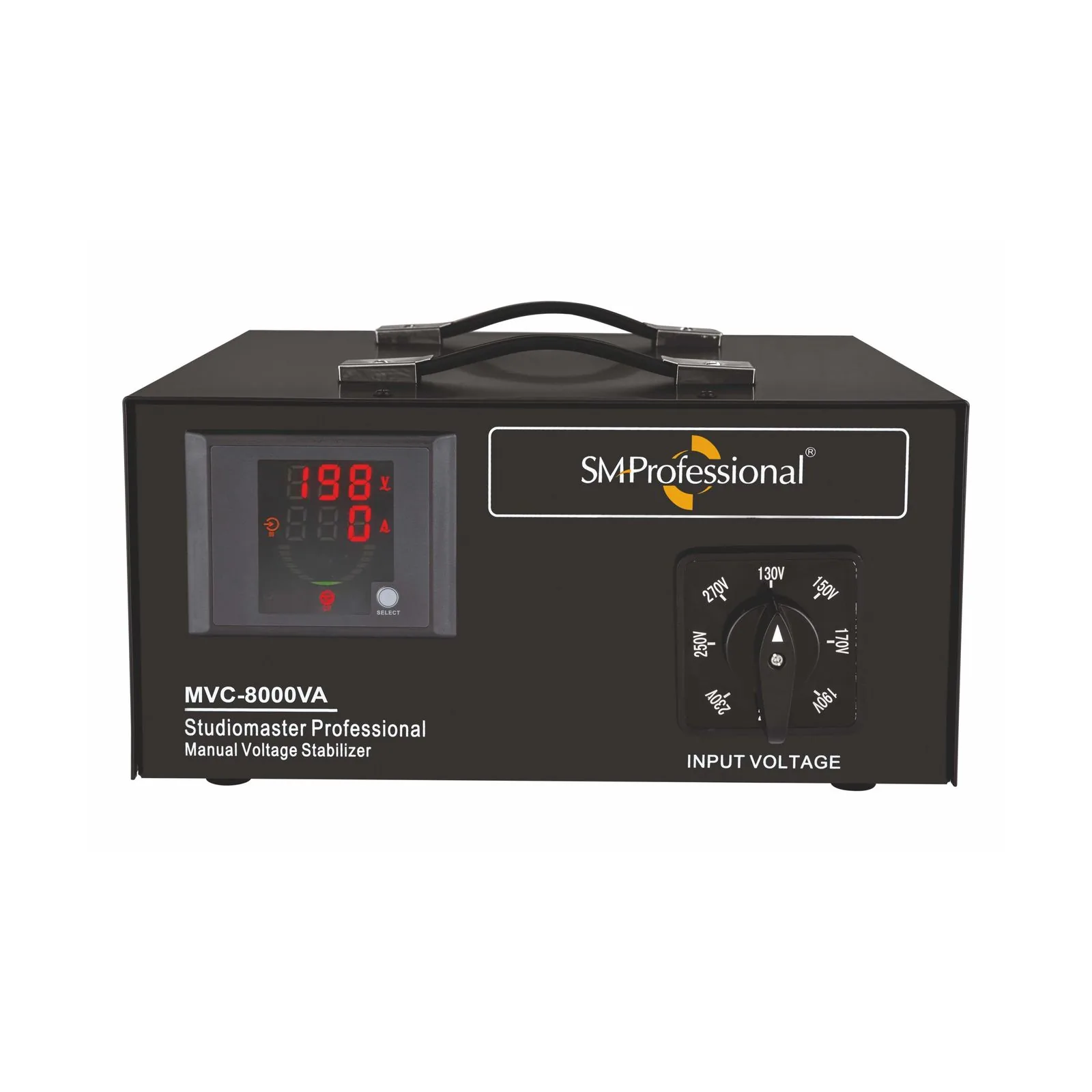

The SM Professional MVC 80000 is high-endurance 8KVA/8000W professional manual voltage stablizer for high power loads, specially designed for audio equipment.
Features
- High-endurance 8KVA/8000W professional manual stabilizers specially designed for audio equipment.
- Wide input voltage range and powerful load performance for Indian conditions.
- Protection features: over and under voltage, overload and short-circuit.
- Quick stabilization time.
- No waveform distortion.
- Low-noise operation.
- High lifespan and minimal servicing cycle.
- Accurate voltage control.
- Generator compatible.
- Rugged road-ready metal housing.
- Display meter indications: input and output voltage (via selection switch), output current, over and under voltage, load ratio, overload buzzer and power ON delay.
- Ships in a thick abuse-resistant wooden box for easy and safe transportation.
Specifications, Q&A and videos
| VA Rating | 8000VA |
|---|---|
| Input Voltage | Single Phase AC 130V-270V |
| Output Voltage | 230V AC (±10V) |
| Frequency | 50Hz-60Hz |
| Rated Current | 45A |
| Over-Voltage Protection | 250V |
| Under-Voltage Protection | 170V |
| Delay Output | 6 Seconds |
| Working Temperature | -10°C to +50°C |
| Relative Humidity | ≤90% |
| Waveform Distortion | No Additional Distortion |
| Efficiency | >95% |
| Withstanding Voltage | 1000V |
| Dimension (W x D X H) mm | 320 x 370 x 163 |
| Net Weight (Kg) | 15.9 |
The MVC 8000 is an SM Professional PA product in the MVC Series. The SM Professional MVC 80000 is high-endurance 8KVA/8000W professional manual voltage stablizer for high power loads, specially designed for audio equipment. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-endurance 8KVA/8000W professional manual stabilizers specially designed for audio equipment; Wide input voltage range and powerful load performance for Indian conditions; Protection features: over and under voltage, overload and short-circuit; Quick stabilization time; No waveform distortion; Low-noise operation.
The MVC 8000 va rating is 8000VA.
The MVC 8000 input voltage is Single Phase AC 130V-270V.
The MVC 8000 output voltage is 230V AC (±10V).
The MVC 8000 frequency is 50Hz-60Hz.
The MVC 8000 rated current is 45A.
