Ahuja
L18-SW650
- Power
- 650 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

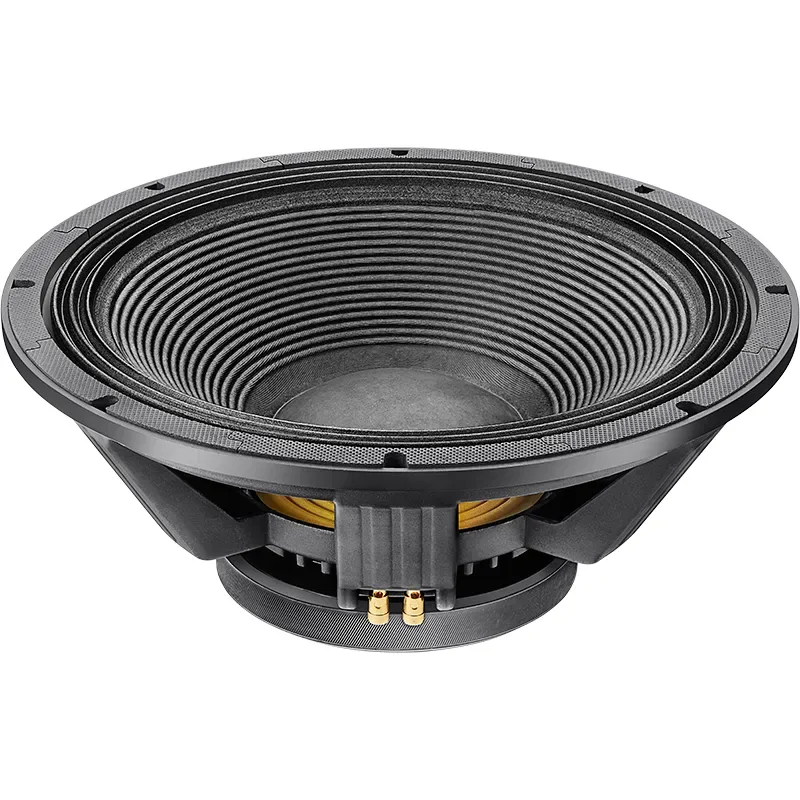

The Ahuja L18-SW650 is a 650W high power 45.72cm (18”) extended low frequency speaker with a 10.16cm (4") edge-wound aluminium wire voice coil for higher SPL.
It has an ideal professional bass speaker for all PA, sound reinforcement and live music application.
Features
- Extremely great linear excursion, ideal for powerful bass and subwoofer applications.
- Aluminium die-cast frame and robust construction.
- Tear resistant tetron-cotton blend rolled cloth edge.
- Cotton polyester blend spider.
- GLASS FIBRE former voice coil for withstanding high temperature.
- 10.16cm (4") Edge-wound aluminium wire voice coil for higher SPL.
- Ideal professional bass speaker for all PA, sound reinforcement and live music application.
Specifications, Q&A and videos
| Power Rating | 650W RMS |
|---|---|
| Nominal Diameter | 457mm (18”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 98 dB |
| Magnet Weight | 3.56kg |
| Resonant Frequencey (Fs) | 32Hz |
| DC resistance (Re) | 5.1Ω |
| Electromagnetic Q (Qes) | 0.26 |
| Mechanical Q (Qms) | 5.29 |
| Total Q (Qts) | 0.245 |
| Compliance Equivalent Volume (VAS) | 246 Litr |
| Surface Area of Cone (Sd) | 1225cm2 |
| Reference Efficiency (ηo) | 3.12% |
| Voice Coil | 4.0” |
| Overhang (Xmax) | 5.0 mm |
| Moving Mass (Mms) | 218gm |
| BL Product (BL) | 29.64TM |
| Coil Inductance (Le) | 1.9mH |
| Overall Diameter | 476 mm |
| Depth | 205 mm |
| Baffle Hole Diameter | 424 mm |
| Bolt Mount Diameter (PCD) | 450 mm (8 Bolts) |
| Weight | 12.00kg |
The L18-SW650 is an Ahuja high power 45.72cm (18”) extended low frequency speaker in the LF Speakers. The Ahuja L18-SW650 is a 650W high power 45.72cm (18”) extended low frequency speaker with a 10.16cm (4") edge-wound aluminium wire voice coil for higher SPL. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Extremely great linear excursion, ideal for powerful bass and subwoofer applications; Aluminium die-cast frame and robust construction; Tear resistant tetron-cotton blend rolled cloth edge; Cotton polyester blend spider; GLASS FIBRE former voice coil for withstanding high temperature; 10.16cm (4") Edge-wound aluminium wire voice coil for higher SPL.
The L18-SW650 nominal diameter is 457mm (18”).
The L18-SW650 nominal impedance is 8Ω.
The L18-SW650 sensitivity (1w/1m ) is 98 dB.
The L18-SW650 magnet weight is 3.56kg.
The L18-SW650 resonant frequencey (fs) is 32Hz.
