Ahuja
L15-MB900
- Power
- 900 WATTS
- Series
- LF Speakers
- Category
- Transducers
- Category
- Speaker Components

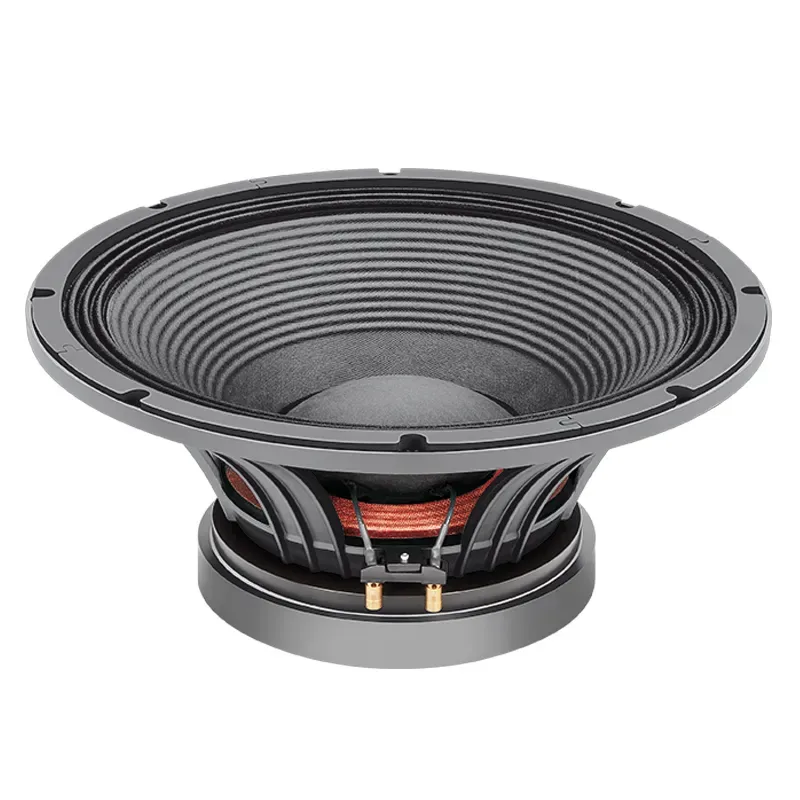

The Ahuja L15-MB900 is a 900W super power 15" low frequency loudspeaker with a 10.16 cm (4") edge-wound aluminium wire voice coil for higher SPL. It has aluminium die-cast frame with gold plated push type heavy duty terminals.
GLASS FIBRE former for withstanding high temperature.
Features
- Excellent bass and mid-bass response, high power handling capacity.
- Aluminium die-cast frame with gold plated push type heavy duty terminals.
- GLASS FIBRE former for withstanding high temperature.
- 10.16 cm (4") Edge-wound aluminium wire voice coil for higher SPL.
Specifications, Q&A and videos
| Power Rating | 900 Watts RMS |
|---|---|
| Nominal Diameter | 380mm (15") |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m) | 97dB |
| Magnet Weight | 3.56kg |
| Resonant Frequency (Fs) | 42Hz |
| DC resistance (Re) | 5.2Ω |
| Electromagnetic Q (Qes) | 0.37 |
| Mechanical Q (Qms) | 12.8 |
| Total Q (Qts) | 0.36 |
| Compliance Equivalent Volume (VAS) | 152 Litr |
| Surface Area of Cone (Sd) | 897cm2 |
| Reference Efficiency (ηo) | 3.36% |
| Voice Coil | 4.0" |
| Overhang (Xmax) | 9.0 mm |
| Moving Mass (Mms) | 135gm |
| BL Product (BL) | 21.8TM |
| Coil Inductance (Le) | 1.23mH |
| Overall Diameter | 397mm |
| Depth | 180mm |
| Baffle Hole Diameter | 359mm |
| Bolt Mount Diameter (PCD) | 379mm (8 Bolts) |
| Weight | 11.60kg |
The L15-MB900 is an Ahuja super power 15" low frequency loudspeaker in the LF Speakers. The Ahuja L15-MB900 is a 900W super power 15" low frequency loudspeaker with a 10.16 cm (4") edge-wound aluminium wire voice coil for higher SPL. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Excellent bass and mid-bass response, high power handling capacity; Aluminium die-cast frame with gold plated push type heavy duty terminals; GLASS FIBRE former for withstanding high temperature; 10.16 cm (4") Edge-wound aluminium wire voice coil for higher SPL.
The L15-MB900 nominal diameter is 380mm (15").
The L15-MB900 nominal impedance is 8Ω.
The L15-MB900 sensitivity (1w/1m) is 97dB.
The L15-MB900 magnet weight is 3.56kg.
The L15-MB900 resonant frequency (fs) is 42Hz.
