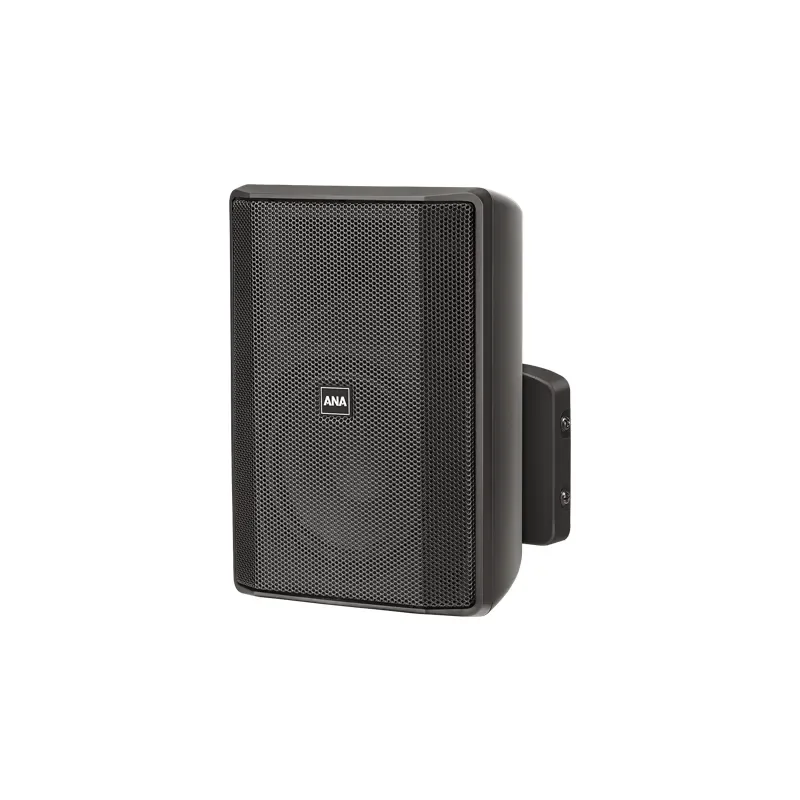

Ahuja
IMPRESS 75T
- Power
- 75 WATTS
- Series
- Impress Series
- Category
- Speakers
- Category
- Wall Speakers
The Ahuja IMPRESS 75T is a 75W PA amplifier with a 5.25" LF woofer. 75W power handling provides for 110dB maximum SPL.
It uses a long throw 13.33cm (5.25") woofer housed in ABS plastic enclosure for extended LF performance down to 60 hz.
Features
- Designed with superior aesthetics and engineered for unmatched sound reproduction.
- Long throw 13.33cm (5.25") woofer housed in ABS plastic enclosure for extended LF performance down to 60 Hz.
- 75W power handling provides for 110dB maximum SPL.
- 100V transformer is provided for constant voltage systems.
Specifications, Q&A and videos
| Power Rating | 75W RMS / 115W Max. |
|---|---|
| Nominal Impedance | 8Ω |
| Transformer Power Taps | 30/15/7.5W |
| Frequency Response | 60-20,000Hz |
| SPL at 1kHz (1W/1m) | 90dB |
| Max SPL | 110dB |
| Coverage Angle (HxV) | 90°× 90° |
| LF Speaker | 133mm (5.25”) |
| HF Tweeter | 20mm (0.75”) |
| Connectors | Removable locking 4-pin connector (Euroblock) for connection to additional speakers or to the binding post. |
| Dimensions | W180 × H255 × D163mm |
| Weight | 3.23kg |
The IMPRESS 75T is an Ahuja PA amplifier in the Impress Series rated 75 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Designed with superior aesthetics and engineered for unmatched sound reproduction; Long throw 13.33cm (5.25") woofer housed in ABS plastic enclosure for extended LF performance down to 60 Hz; 75W power handling provides for 110dB maximum SPL; 100V transformer is provided for constant voltage systems.
The IMPRESS 75T nominal impedance is 8Ω.
The IMPRESS 75T transformer power taps is 30/15/7.5W.
The IMPRESS 75T frequency response is 60-20,000Hz.
The IMPRESS 75T spl at 1khz (1w/1m) is 90dB.
The IMPRESS 75T max spl is 110dB.
