Ahuja

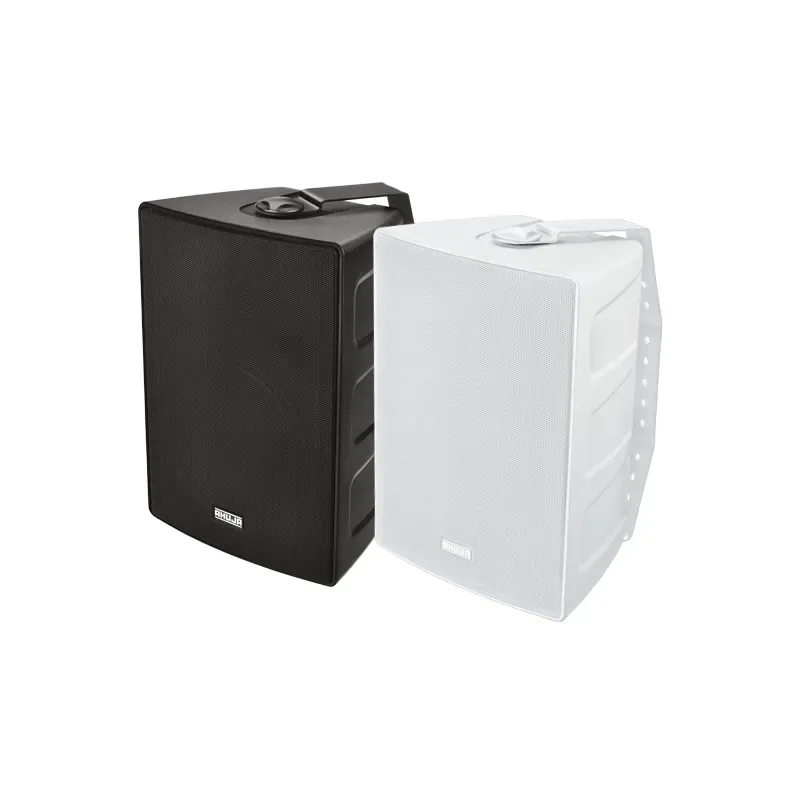

The Ahuja ASX-312B is a 30W compact PA wall speaker. It combines a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
It has an 'u' type bracket for convenient and firm mounting of the wall speaker.
| POWER RATING | 30W RMS/45W Max. |
|---|---|
| POWER TAPS | 30W, 30/20/15/10/5W |
| IMPEDANCE/VOLTAGE | 8Ω / 100V |
| FREQUENCY RESPONSE | 75-20,000Hz |
| SPL at 1kHz (1W/1m) | 87dB |
| SPEAKER | Woofer 100mm (4"), Tweeter 25mm (1") |
| DIMENSIONS | W180 × H248 × D140 mm |
| WEIGHT | 2.45kg/2.92kg |
The ASX-312B is an Ahuja compact PA wall speaker in the ASX Series rated 30 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network; ASX-312B, ASX-312W are low impedance 8Ω speakers; ASX-312BT and ASX-312WT are for use on 100V line with power taps of 30W, 20W, 15W, 10W & 5W; Easy power tap selection through a slotted rotary switch knob at the rear; 'U' type bracket for convenient & firm mounting of the wall speaker.
The ASX-312B power taps is 30W, 30/20/15/10/5W.
The ASX-312B impedance/voltage is 8Ω / 100V.
The ASX-312B frequency response is 75-20,000Hz.
The ASX-312B spl at 1khz (1w/1m) is 87dB.
The ASX-312B speaker is Woofer 100mm (4"), Tweeter 25mm (1").
