Ahuja
ASX-312W
- Power
- 30 WATTS
- Series
- ASX Series
- Category
- Speakers
- Category
- Wall Speakers

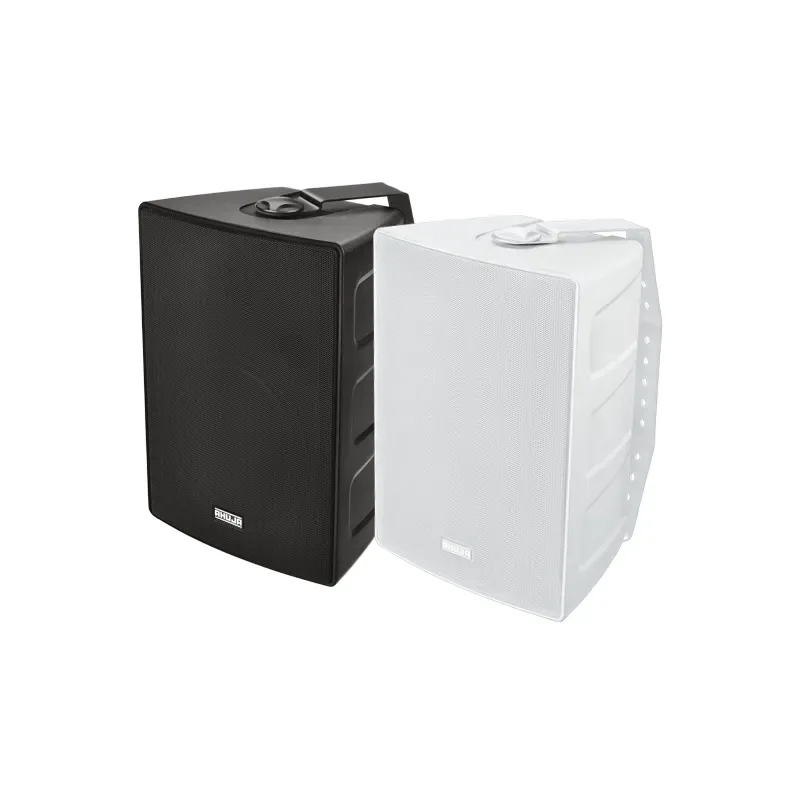

The Ahuja ASX-312W is a 30W compact PA wall speaker. It combines a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
It has an 'u' type bracket for convenient and firm mounting of the wall speaker.
Features
- High fidelity 2-Way speaker system in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet. Ideal for various indoor and outdoor (under eaves) applications in Airports, Banks, Schools, Hotels, Restaurants, Lounges, Hospitals, Showrooms etc.
- Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
- ASX-312B, ASX-312W are low impedance 8Ω speakers.
- ASX-312BT and ASX-312WT are for use on 100V line with power taps of 30W, 20W, 15W, 10W & 5W.
- Easy power tap selection through a slotted rotary switch knob at the rear.
- 'U' type bracket for convenient & firm mounting of the wall speaker.
Specifications, Q&A and videos
| POWER RATING | 30W RMS/45W Max. |
|---|---|
| POWER TAPS | 30W |
| IMPEDANCE/VOLTAGE | 8Ω |
| FREQUENCY RESPONSE | 75-20,000Hz |
| SPL at 1kHz (1W/1m) | 87dB |
| SPEAKER | Woofer 100mm (4"), Tweeter 25mm (1") |
| DIMENSIONS | W180 × H248 × D140 mm |
| WEIGHT | 2.45kg |
The ASX-312W is an Ahuja compact PA wall speaker in the ASX Series rated 30 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High fidelity 2-Way speaker system in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet. Ideal for various indoor and outdoor (under eaves) applications in Airports, Banks, Schools, Hotels, Restaurants, Lounges, Hospitals, Showrooms etc; Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network; ASX-312B, ASX-312W are low impedance 8Ω speakers; ASX-312BT and ASX-312WT are for use on 100V line with power taps of 30W, 20W, 15W, 10W & 5W; Easy power tap selection through a slotted rotary switch knob at the rear; 'U' type bracket for convenient & firm mounting of the wall speaker.
The ASX-312W power taps is 30W.
The ASX-312W impedance/voltage is 8Ω.
The ASX-312W frequency response is 75-20,000Hz.
The ASX-312W spl at 1khz (1w/1m) is 87dB.
The ASX-312W speaker is Woofer 100mm (4"), Tweeter 25mm (1").
