Ahuja
HD51-80T
- Power
- 80 WATTS
- Category
- Transducers
- Category
- PA Drivers

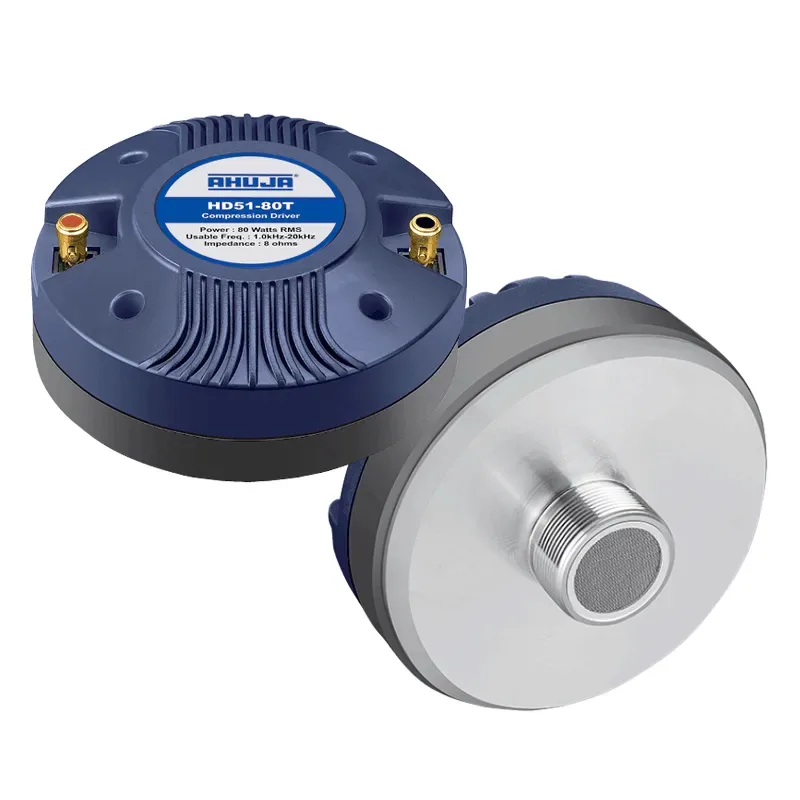

The Ahuja HD51-80T is an 80W PA compression driver. Professional compression driver HD51-80T, suitable for high power speakers.
It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL and superb HF response.
Features
- Professional compression driver HD51-80T, suitable for high power speakers.
- It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response.
- With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB400, L15- MB300, L15-MB400, L15-MB550, L15-MB700, N12-MB600X and N12-MB600Z.
Specifications, Q&A and videos
| Power Capacity | 80W RMS |
|---|---|
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 108dB (with Horn) |
| Usable Frequency Range | 1,000-20,000Hz |
| Recommended Crossover | 2.5kHz, 18db/Octave |
| Voice coil Diameter | 51.0 mm (2.0”) |
| Diaphragm Material | Titanium |
| Voice coil Material | Round Aluminium Wire |
| Voice Coil Former | Resin Bonded Kapton |
| Throat Coupling | 1-3/8” 18TPI, Throat Couple No.1 |
| Overall Dimensions | Ø133 × H75 mm |
| Weight | 2.50kg |
The HD51-80T is an Ahuja PA compression driver rated 80 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional compression driver HD51-80T, suitable for high power speakers; It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response; With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB400, L15- MB300, L15-MB400, L15-MB550, L15-MB700, N12-MB600X and N12-MB600Z.
The HD51-80T power capacity is 80W RMS.
The HD51-80T throat diameter is 25.4 mm (1”).
The HD51-80T nominal impedance is 8Ω.
The HD51-80T sensitivity (1w/1m ) is 108dB (with Horn).
The HD51-80T usable frequency range is 1,000-20,000Hz.
