Ahuja
HD44-60T
- Power
- 60 WATTS
- Category
- Transducers
- Category
- PA Drivers

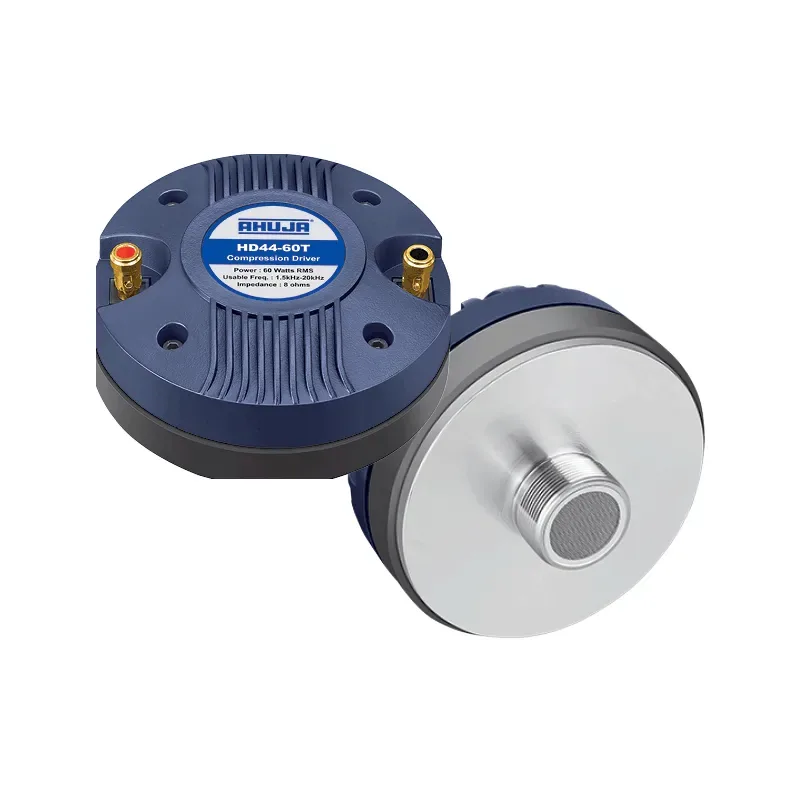

The Ahuja HD44-60T is a 60W PA compression driver. Professional compression driver HD44-60T, suitable for high power speakers.
It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL and superb HF response.
Features
- Professional compression driver HD44-60T, suitable for high power speakers.
- It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response.
- With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB300, L12-MB400, L15-MB300,
Specifications, Q&A and videos
| Power Capacity | 60W RMS |
|---|---|
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 106dB (with Horn) |
| Usable Frequency Range | 1,500-20,000Hz |
| Recommended Crossover | 2.5kHz, 18db/Octave |
| Voice Coil Diameter | 44.4 mm (1.74”) |
| Diaphragm Material | Titanium |
| Voice coil Material | Round Aluminium Wire |
| Voice Coil Former | Resin Bonded Kapton |
| Throat Coupling | 1-3/8” 18TPI, Throat Couple No.1 |
| Overall Dimensions | Ø114 × H67.5 mm |
| Weight | 1.51kg |
The HD44-60T is an Ahuja PA compression driver rated 60 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional compression driver HD44-60T, suitable for high power speakers; It features TITANIUM diaphragm round aluminium wire voice coil and strontium ferrite magnet for high SPL & superb HF response; With a suitable horn it is ideal for use with low frequency speakers AHUJA L12-MB300, L12-MB400, L15-MB300,.
The HD44-60T power capacity is 60W RMS.
The HD44-60T throat diameter is 25.4 mm (1”).
The HD44-60T nominal impedance is 8Ω.
The HD44-60T sensitivity (1w/1m ) is 106dB (with Horn).
The HD44-60T usable frequency range is 1,500-20,000Hz.
