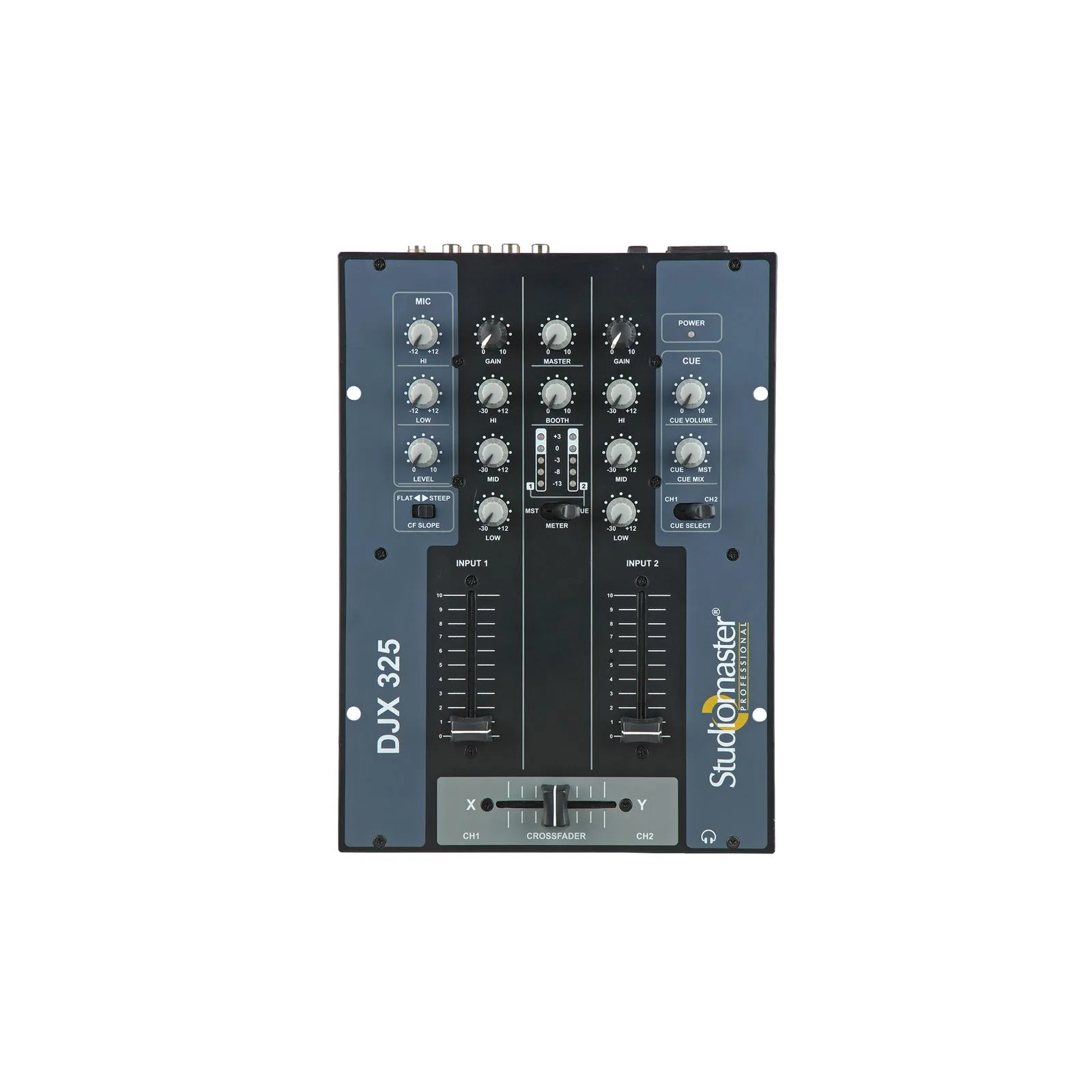

SM Professional DJX 325 – 3 Channel DJ Mixer | 3-band kill EQ (-30 dB) | 2 x RCA Inputs | 1/4 Mic with 2-band EQ
Features
- High quality 3 Channel DJ Mixer by SM Professional.
- Dual Input Stereo channels.
- 3-band kill EQ (-30 dB) and Gain control per stereo channel.
- Monitor function with master/CUE mix option.
- LED bargraph selectable to Master or CUE.
- Microphone input with 2-band equalizer.
- Master and Booth outputs.
Specifications, Q&A and videos
| Gain (Mic/Line) | 57dB/0dB |
|---|---|
| Input Level Sensitivity (Mic/Line) | -57dB/0dB |
| Main Output levels (Nominal/Max) | 0dBu(0.775V) / +18dBu(6.15V RMS) |
| Booth Output levels (Nominal/Max) | 0dBu(0.775V) Nominal/ +18dBu(6.15V RMS) Max |
| Frequency Response | 20Hz-22KHz (+/-3dB) |
| Total Harmonic Distortion | 0.07% @ 1KHz 0.1% @ 1KHz |
| Equalisation Line I/P (Treble/Mid/Bass) | +10/-12 dB @ 10KHz , +12/-24dB @ 1.3KHz , +12/-29dB @ 50Hz |
| Signal to Noise Ratio (Mic/Line) | 60dB/82dB |
| Power Supply | 150V~240V AC/50Hz |
| Dimensions (WxDxH in mm) | 204 x 293 x 77 |
| Net Weight (Kgs.) | 1.9 |
The DJX 325 is an SM Professional DJ mixers and performance product in the DJX Series. SM Professional DJX 325 – 3 Channel DJ Mixer | 3-band kill EQ (-30 dB) | 2 x RCA Inputs | 1/4 Mic with 2-band EQ. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High quality 3 Channel DJ Mixer by SM Professional; Dual Input Stereo channels; 3-band kill EQ (-30 dB) and Gain control per stereo channel; Monitor function with master/CUE mix option; LED bargraph selectable to Master or CUE; Microphone input with 2-band equalizer.
The DJX 325 gain (mic/line) is 57dB/0dB.
The DJX 325 input level sensitivity (mic/line) is -57dB/0dB.
The DJX 325 main output levels (nominal/max) is 0dBu(0.775V) / +18dBu(6.15V RMS).
The DJX 325 booth output levels (nominal/max) is 0dBu(0.775V) Nominal/ +18dBu(6.15V RMS) Max.
The DJX 325 frequency response is 20Hz-22KHz (+/-3dB).
