SM Professional
DJX 925
- Channels
- 5 Channels
- Series
- DJX Series
- Category
- DJ Products
- Category
- DJ Mixers

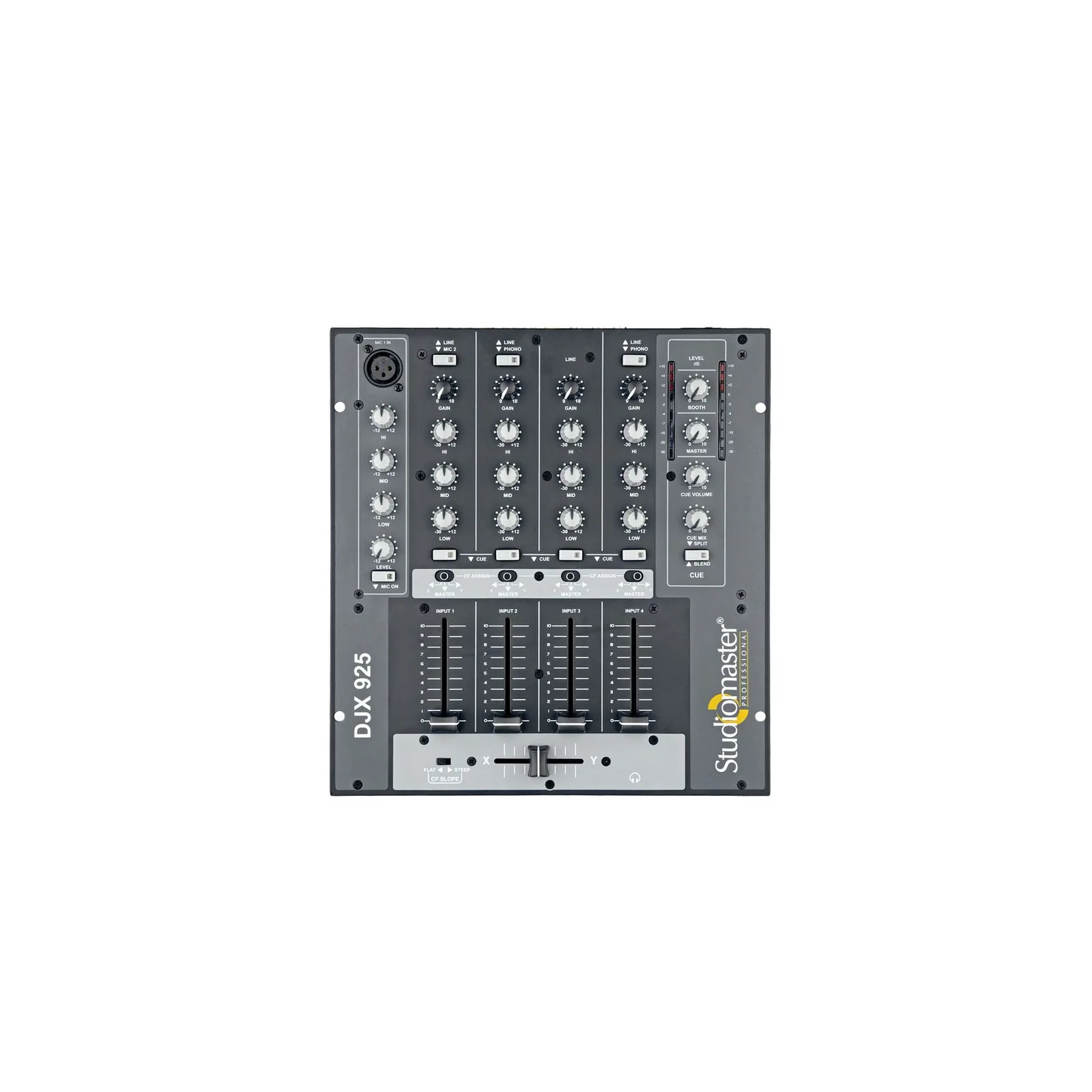

The DJX 925 is a high quality Professional 5-channel DJ mixer from SM Professional.
Features
- 3-Band Kill EQ (-30 dB) & Gain control per channel.
- Balanced MIC input with gain & 3 Band EQ (±12dB).
- Cross fader Reverse & Normal mode switch with Flat & Steep curve switch.
- CUE section with CUE/Main mix control & Blend / Split option.
- Separate Master, Record & Booth RCA out.
- Headphone Cue Mix facility with Cue blend switch.
- Balanced XLR Master Output.
Specifications, Q&A and videos
| Gain (Mic/Line) | 40dB/0dB |
|---|---|
| Input Level Sensitivity (Mic/Line) | -40dB/0dB |
| Main Output levels (Nominal/Max) | 0dBu(0.775V) / +18dBu(6.15V RMS) |
| Booth Output levels (Nominal/Max) | 0dBu(0.775V) / +18dBu(6.15V RMS) |
| Frequency Response | 20Hz-22KHz (+/-3dB) |
| Total Harmonic Distortion | 0.07% @ 1KHz 0.1% @ 1KHz |
| Equalisation Line I/P (Treble/Mid/Bass) | +10/-12 dB @ 10KHz , +12/-24dB @ 1.3KHz , +12/-29dB @ 50Hz |
| Signal to Noise Ratio (Mic/Line) | 60dB/82dB |
| Power Supply | 230V AC/50Hz |
| Dimensions (WxDxH in mm) | 278 x 302 x 106 |
| Net Weight (Kgs.) | 2.8 |
The DJX 925 is an SM Professional 5-channel DJ mixer from Studiomaster Professional in the DJX Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3-Band Kill EQ (-30 dB) & Gain control per channel; Balanced MIC input with gain & 3 Band EQ (±12dB); Cross fader Reverse & Normal mode switch with Flat & Steep curve switch; CUE section with CUE/Main mix control & Blend / Split option; Separate Master, Record & Booth RCA out; Headphone Cue Mix facility with Cue blend switch.
The DJX 925 gain (mic/line) is 40dB/0dB.
The DJX 925 input level sensitivity (mic/line) is -40dB/0dB.
The DJX 925 main output levels (nominal/max) is 0dBu(0.775V) / +18dBu(6.15V RMS).
The DJX 925 booth output levels (nominal/max) is 0dBu(0.775V) / +18dBu(6.15V RMS).
The DJX 925 frequency response is 20Hz-22KHz (+/-3dB).
