SM Professional
DJA 100
- Power
- 220 WATTS
- Channels
- 2 Channels
- Series
- DJA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

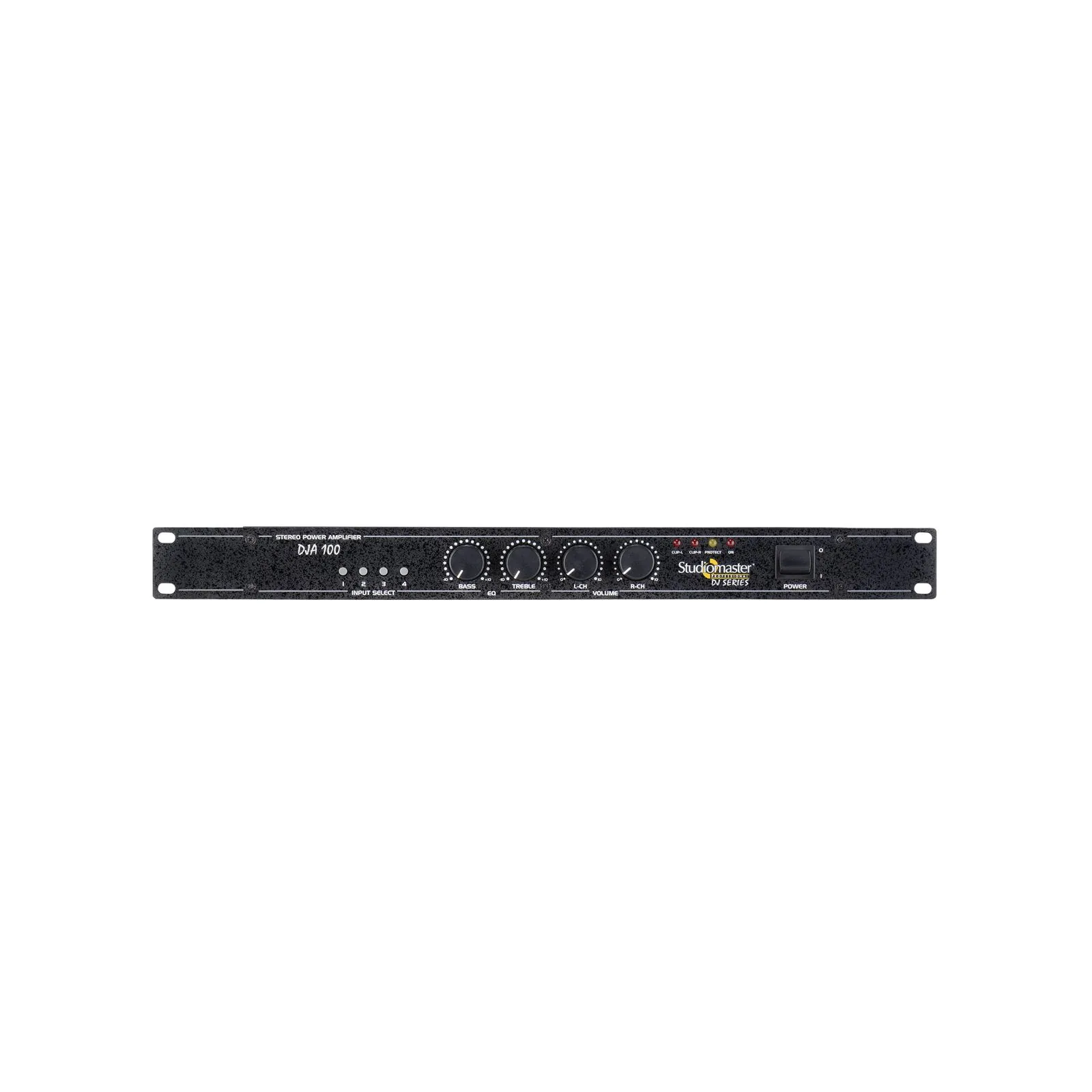

The DJA 100 is a multi input high quality stereo power amplifier offering great sound clarity & reliability, for a variety of applications.
Features
- 4 input amplifier
- EQ Bass / Treble control on Front Panel
- Speaker connections on push terminals & mono jack sockets.
- Separate level controls for L & R controls on Front Panel.
- Clip, Protect, Power LED indicators per channel.
- 19” rack mountable.
Specifications, Q&A and videos
| Series | DJA Series |
|---|---|
| Power Output (RMS) 4 Ω | 2 x 110 W |
| Power Output (RMS) 8 Ω | 2 x 80 W |
| Frequency Response | 20Hz-20KHz (±3db). |
| Damping Factor (8Ω) | > 100: 1 |
| Protection Devices | Short Circuit, Overheating |
| Input Connector (Per CH.) | RCA (4 input selector switches) |

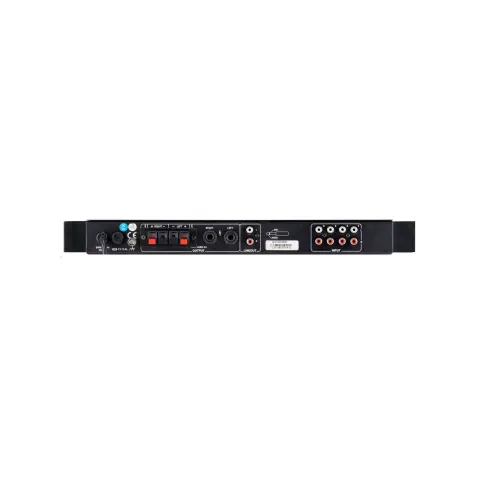

| Output Connector (Per CH.) | Spring loaded terminals, 1/4” TRS jack |
| Dimensions ( WxDxH )mm | 482 x 285 x 44 (1U) |
| Net Weight (Kgs.) | 7.2 |
The DJA 100 is an SM Professional DJ / entertainment amplifier in the DJA Series rated 220 WATTS. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 input amplifier; EQ Bass / Treble control on Front Panel; Speaker connections on push terminals & mono jack sockets; Separate level controls for L & R controls on Front Panel; Clip, Protect, Power LED indicators per channel; 19” rack mountable.
The DJA 100 power output (rms) 4 ω is 2 x 110 W.
The DJA 100 power output (rms) 8 ω is 2 x 80 W.
The DJA 100 frequency response is 20Hz-20KHz (±3db)..
The DJA 100 damping factor (8ω) is > 100: 1.
The DJA 100 protection devices is Short Circuit, Overheating.
