SM Professional
DJA 800
- Power
- 830 WATTS
- Channels
- 2 Channels
- Series
- DJA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

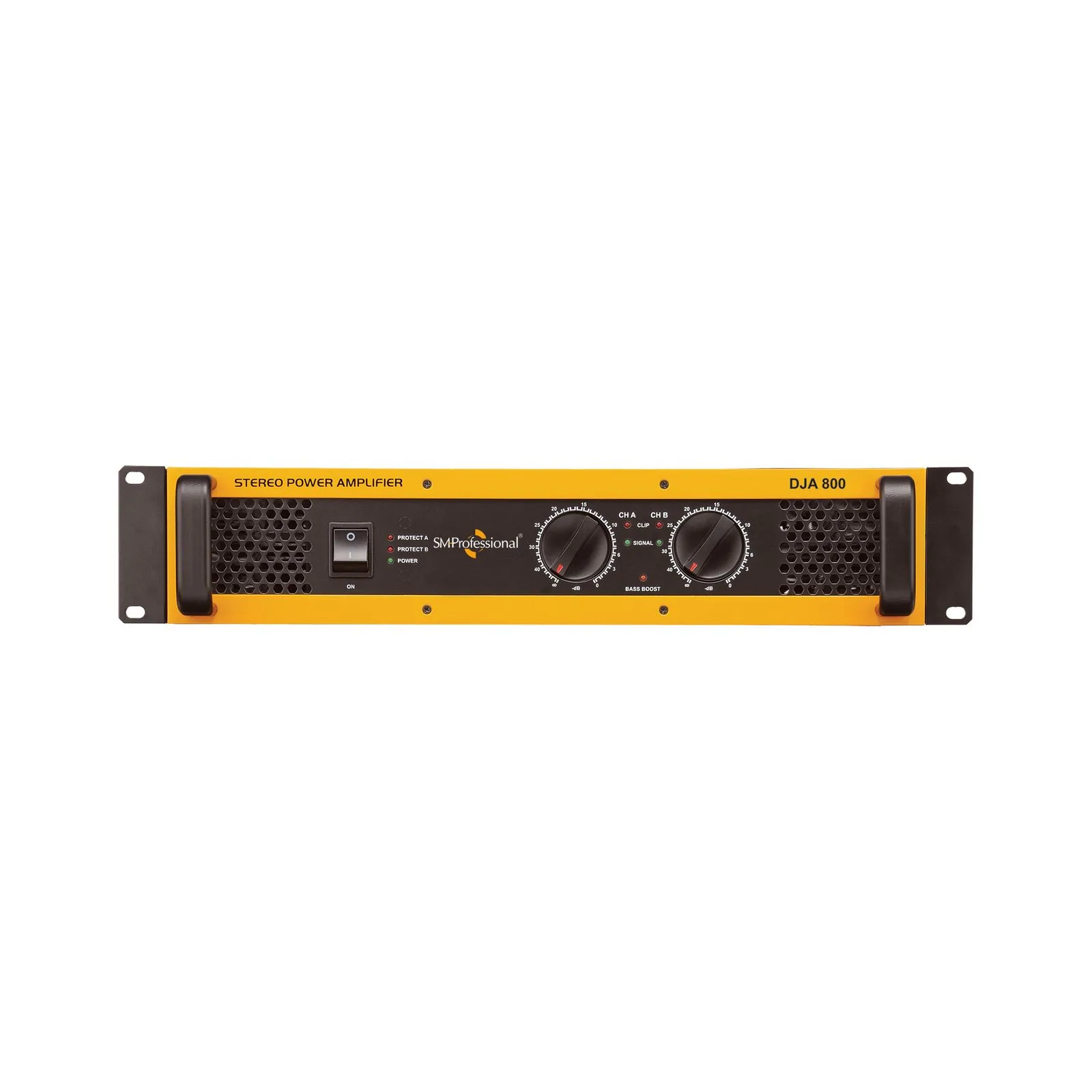

The DJA Series power amplifiers are designed to give clean, dynamic power with the legendary SM Professional sound quality and reliability that professionals depend on.
Features
- Rugged & Reliable Professional Stereo Power Amplifier.
- Input: Balanced XLR & 1/4” Jack.

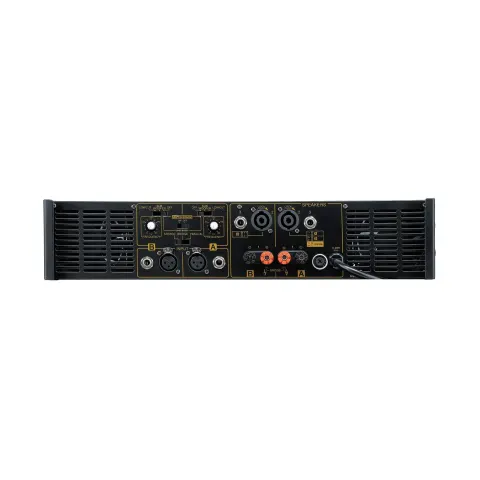

- EQ Processing, Low Cut, Subwoofer selection options on rear panel.
- Stereo, Bridge & Parallel mode selection switch.
- Protection: Temperature ,DC Short Circuit.
- Large cooling Fans.
- LED Indicators on front panel for power, Signal, Clip, bass boost & Protect.
- Mains voltage operation 220V AC-240V AC as well as low voltage operation (150V AC).
- Output: Speakon & Binding Post Connectors.
- 19” rack mountable.
Specifications, Q&A and videos
| Series | DJA Series |
|---|---|
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 250 W |
| 4 Ω (EIA), 1kHz , 1%THD | 2 x 415 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 165 W |
| 8 Ω (EIA), 1kHz , 1%THD | 2 x 245 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 525 W |
| 8 Ω (EIA), 1kHz , 1%THD | 830 W |
| Damping factor | > 350 :1 (8 Ω) |
| Frequency Response | 20Hz - 20kHz (-3dB) |
| Protection Devices | Temperature, DC, Short Circuit, Soft Start |
| Input Connector (Per Channel) | XLR, 1/4” TRS Jack |
| Output Connector (Per Channel) | Speakon / Binding Posts / 6.3mm Jack |
| Dimensions (W x D x H)mm | 482 x 456 x 88 (2U) |
| Net Weight (Kgs.) | 12.5 |
The DJA 800 is an SM Professional DJ / entertainment amplifier in the DJA Series rated 830 WATTS. The DJA Series power amplifiers are designed to give clean, dynamic power with the legendary SM Professional sound quality and reliability that professionals depend on. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Rugged & Reliable Professional Stereo Power Amplifier; Input: Balanced XLR & 1/4” Jack; EQ Processing, Low Cut, Subwoofer selection options on rear panel; Stereo, Bridge & Parallel mode selection switch; Protection: Temperature ,DC Short Circuit; Large cooling Fans.
The DJA 800 4 ω (true rms),20hz-20khz,1% thd is 2 x 250 W.
The DJA 800 4 ω (eia), 1khz , 1%thd is 2 x 415 W.
The DJA 800 8 ω (true rms),20hz-20khz,1% thd is 2 x 165 W.
The DJA 800 8 ω (eia), 1khz , 1%thd is 2 x 245 W.
The DJA 800 8 ω (true rms), 20hz-20khz, 1% thd is 525 W.
