SM Professional
DJA 550
- Power
- 500 WATTS
- Channels
- 2 Channels
- Series
- DJA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

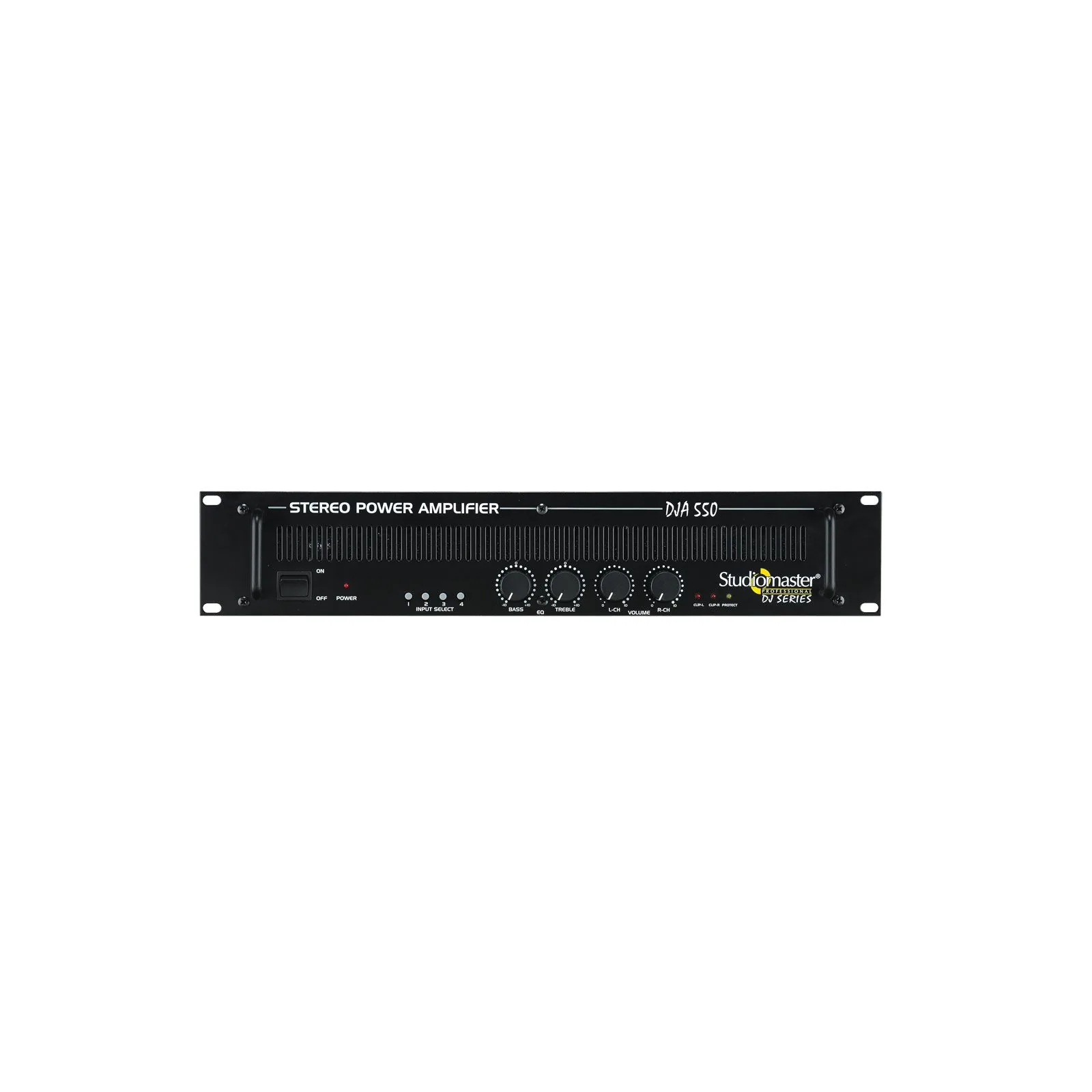

The DJA 550 is a multi input high quality stereo power amplifier offering great sound clarity & reliability, for a variety of applications.
Features
- 4 input amplifier
- EQ Bass / Treble control on Front Panel
- Speaker connections on push terminals & mono jack sockets.
- Separate level controls for L & R controls on Front Panel.
- Clip, Protect, Power LED indicators per channel.
- 19” rack mountable.
Specifications, Q&A and videos
| Series | DJA Series |
|---|---|
| Power Output (RMS) 4 Ω | 2 x 250 W |
| 8 Ω | 2 x 130 W |
| Frequency Response | 20Hz-20KHz (±3db). |
| Damping Factor (8Ω) | > 100: 1 |
| Protection Devices | Short Circuit, Overheating |
| Input Connector (Per CH.) | RCA (4 input selector switches) |
| Output Connector (Per CH.) | Spring loaded terminals, 1/4” TRS jack |
| Dimensions ( WxDxH )mm | 482 x 330 x 88 (2U) |
| Net Weight (Kgs.) | 10.5 |
The DJA 550 is an SM Professional DJ / entertainment amplifier in the DJA Series rated 500 WATTS. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 input amplifier; EQ Bass / Treble control on Front Panel; Speaker connections on push terminals & mono jack sockets; Separate level controls for L & R controls on Front Panel; Clip, Protect, Power LED indicators per channel; 19” rack mountable.
The DJA 550 power output (rms) 4 ω is 2 x 250 W.
The DJA 550 8 ω is 2 x 130 W.
The DJA 550 frequency response is 20Hz-20KHz (±3db)..
The DJA 550 damping factor (8ω) is > 100: 1.
The DJA 550 protection devices is Short Circuit, Overheating.
