SM Professional
DJA 4002
- Power
- 4000 WATTS
- Channels
- 2 Channels
- Series
- DJA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers

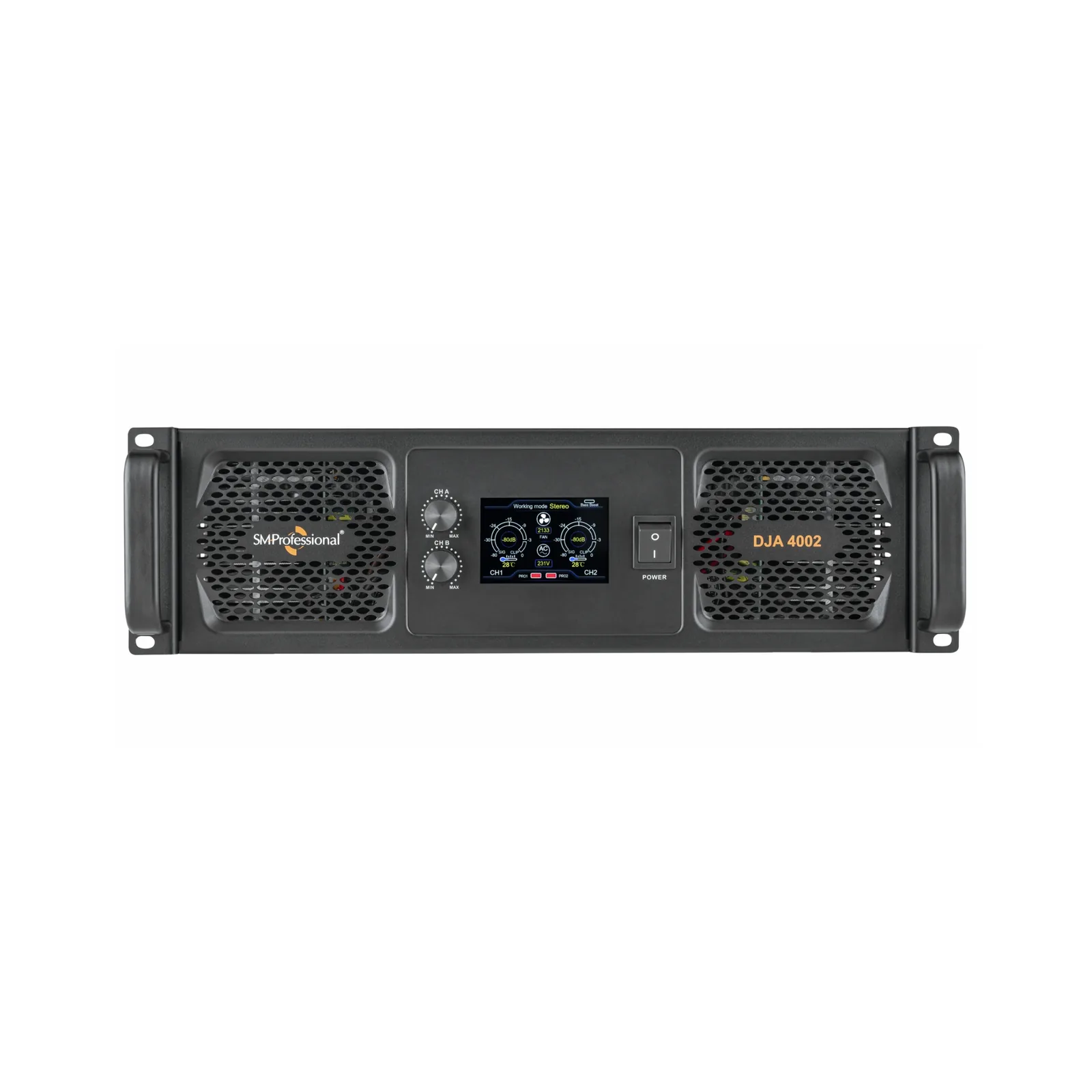

The SM Professional DJA 4002 is a high performance stereo power amplifier with digital colour display.
Engineered with high quality components, the amplifier is designed to give clean, dynamic power and smart features with the legendary SM Professional sound quality and reliability.
Features
- Rugged and reliable professional stereo power amplifier.
- High-current toroidal transformers with high-endurance cores for superior transient response.
- Ultra-functional EQ Processing, Low Cut, and Subwoofer with crossover selection options.
- Smart LCD screen displays real-time system status, including fan speed, temperature, and protection alerts.
- Intuitive LED indicators in green (signal present), yellow (peak/limit), and red (protection/clipping) for quick monitoring.
- 3 switchable operational modes: stereo, parallel, and bridge.
- Intelligent cooling and heat dissipation using large low-noise variable speed fans.
- Mains voltage operation 240V AC as well as low voltage operation at 150V AC.
- Audio-grade balanced XLR and ¼” jack input connectors.
Specifications, Q&A and videos
| 2 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 1600W |
|---|---|
| 2 Ω (EIA), 1kHz, 1%THD | 2 x 2100W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 1400W |
| 4 Ω (EIA), 1kHz, 1%THD | 2 x 1950W |
| 8 Ω (EIA), 1kHz, 1%THD | 2 x 1100W |
| 4 Ω (True RMS), 20Hz-20kHz,1% THD | 3200W |
| 4 Ω (EIA), 1kHz , 1% THD | 4000W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 900W |
| 8 Ω (EIA), 1kHz , 1% THD | 3900W |
| Damping Factor (8 Ω) | >500:1 |
| Frequency Range | 20Hz-20kHz (± 0.5dB) |
| Protection | Temperature, DC, Short Circuit, Soft-Start |
| Input Connector (Per Channel) | XLR, jack stereo 6.3mm |
| Output Connector (Per Channel) | Speak-on connector & Binding Posts |
| Dimensions (W x D x H) mm | 482 x 495 x 132 (3U) |
| Net Weight (Kg) | 29.5 |
The DJA 4002 is an SM Professional high performance stereo power amplifier in the DJA Series rated 4000 WATTS. The SM Professional DJA 4002 is a high performance stereo power amplifier with digital colour display. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Rugged and reliable professional stereo power amplifier; High-current toroidal transformers with high-endurance cores for superior transient response; Ultra-functional EQ Processing, Low Cut, and Subwoofer with crossover selection options; Smart LCD screen displays real-time system status, including fan speed, temperature, and protection alerts; Intuitive LED indicators in green (signal present), yellow (peak/limit), and red (protection/clipping) for quick monitoring; 3 switchable operational modes: stereo, parallel, and bridge.
The DJA 4002 2 ω (true rms), 20hz-20khz, 1% thd is 2 x 1600W.
The DJA 4002 2 ω (eia), 1khz, 1%thd is 2 x 2100W.
The DJA 4002 4 ω (true rms), 20hz-20khz, 1% thd is 2 x 1400W.
The DJA 4002 4 ω (eia), 1khz, 1%thd is 2 x 1950W.
The DJA 4002 8 ω (eia), 1khz, 1%thd is 2 x 1100W.
