Ahuja
CSD-8401T
- Power
- 40 WATTS
- Series
- CSD Ceiling Speakers
- Category
- Speakers
- Category
- Ceiling Speakers

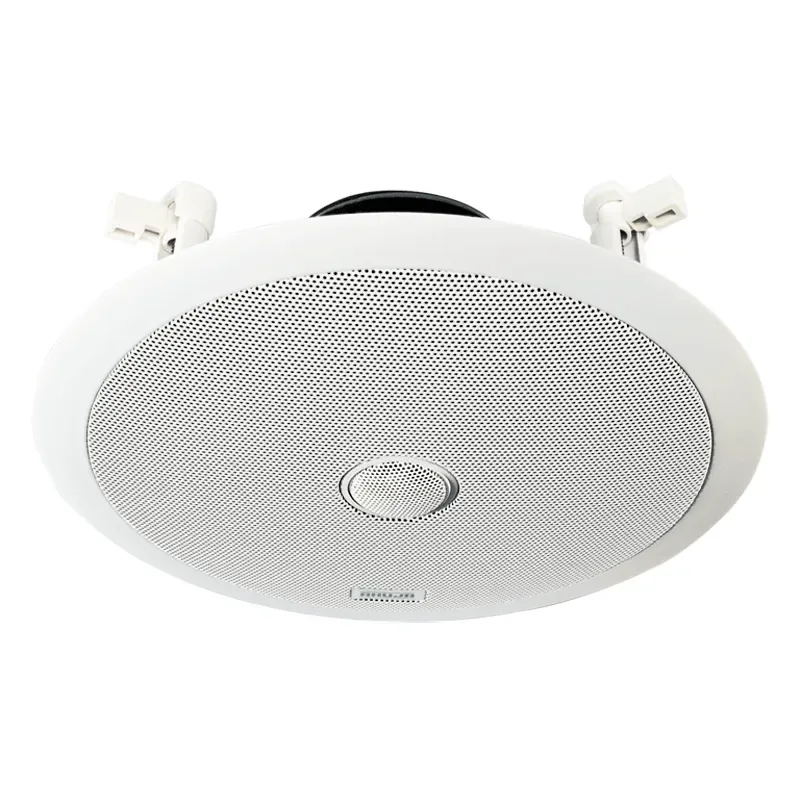

The Ahuja CSD-8401T is a 40W 2-way PA ceiling speaker with 8" LF woofer. Operates on 100V line with power taps of 40/20/10W.
It uses a 200mm (8") woofer and adjustable 25mm (1") tweeter.
Features
- Operates on 100V line with power taps of 40/20/10W.
- Moulded plastic frame with metal mesh grill.
- 200mm (8") woofer and adjustable 25mm (1") tweeter.
- 100V line operation with easy power tap selection through a terminal block.
- Ideal for Hotels… Office Buildings… Restaurants… Hospitals… Shopping Malls… Department Stores… Cinemas… Gyms…
Specifications, Q&A and videos
| Input Power | 40W RMS |
|---|---|
| Power Taps on 100V | 40/20/10W |
| Impedance | 250/500/1kΩ |
| Frequency Response | 90-18,000Hz |
| SPL at 1kHz (1W/1m) | 93dB |
| Speaker | Woofer 200mm (8”), Tweeter 25mm (1”) |
| Dimensions | ø272 × H120 mm |
| Weight | 2.10kg |
The CSD-8401T is an Ahuja 2-way PA ceiling speaker in the CSD Ceiling Speakers rated 40 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Operates on 100V line with power taps of 40/20/10W; Moulded plastic frame with metal mesh grill; 200mm (8") woofer and adjustable 25mm (1") tweeter; 100V line operation with easy power tap selection through a terminal block; Ideal for Hotels… Office Buildings… Restaurants… Hospitals… Shopping Malls… Department Stores… Cinemas… Gyms….
The CSD-8401T input power is 40W RMS.
The CSD-8401T power taps on 100v is 40/20/10W.
The CSD-8401T impedance is 250/500/1kΩ.
The CSD-8401T frequency response is 90-18,000Hz.
The CSD-8401T spl at 1khz (1w/1m) is 93dB.
