Ahuja
CSD-6303T
- Power
- 30 WATTS
- Series
- CSD Ceiling Speakers
- Category
- Speakers
- Category
- Ceiling Speakers

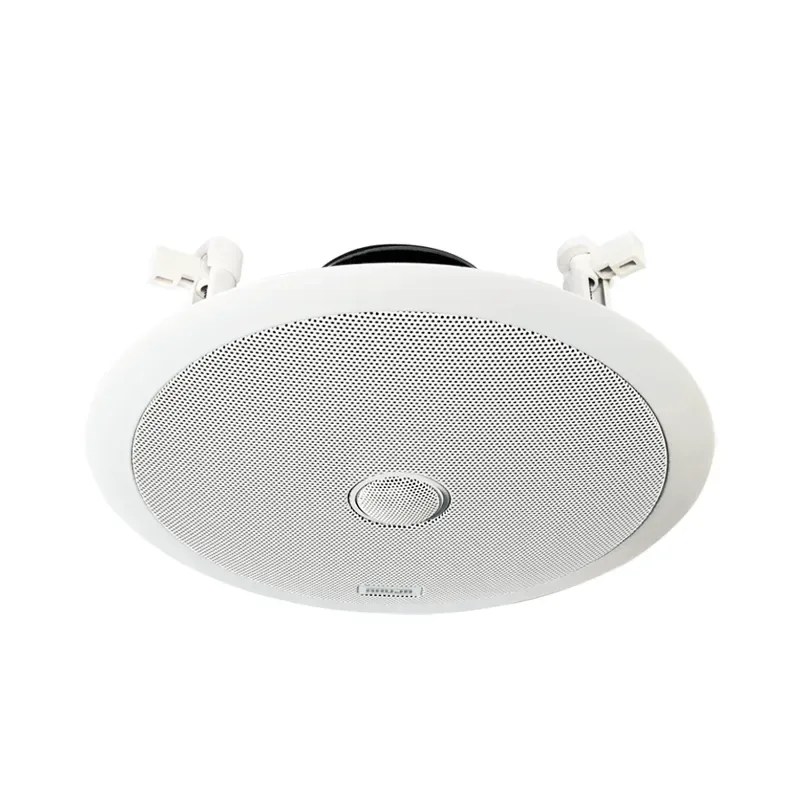

The Ahuja CSD-6303T is a 30W PA ceiling speaker. Operates on 100V line with power taps of 30/15/7.5W.
It has a moulded plastic frame with metal mesh grill.
Features
- Operates on 100V line with power taps of 30/15/7.5W.
- Moulded plastic frame with metal mesh grill.
- Tweeter can be tilted at an angle to focus clear, intelligible sound in the desired direction.
- 100V line operation with easy power tap selection through a terminal block.
- Ideal for Hotels… Office Buildings… Restaurants… Hospitals… Shopping Malls… Department Stores… Cinemas… Gyms…
Specifications, Q&A and videos
| Input Power | 30W RMS |
|---|---|
| Power Taps on 100V | 30/15/7.5W |
| Impedance | 330/670/1.33kΩ |
| Frequency Response | 90-18,000Hz |
| SPL at 1kHz (1W/1m) | 92dB |
| Speaker | Woofer 150mm (6”), Tweeter 25mm (1”) |
| Dimensions | ø230 × H120 mm |
| Weight | 1.65kg |
The CSD-6303T is an Ahuja PA ceiling speaker in the CSD Ceiling Speakers rated 30 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Operates on 100V line with power taps of 30/15/7.5W; Moulded plastic frame with metal mesh grill; Tweeter can be tilted at an angle to focus clear, intelligible sound in the desired direction; 100V line operation with easy power tap selection through a terminal block; Ideal for Hotels… Office Buildings… Restaurants… Hospitals… Shopping Malls… Department Stores… Cinemas… Gyms….
The CSD-6303T input power is 30W RMS.
The CSD-6303T power taps on 100v is 30/15/7.5W.
The CSD-6303T impedance is 330/670/1.33kΩ.
The CSD-6303T frequency response is 90-18,000Hz.
The CSD-6303T spl at 1khz (1w/1m) is 92dB.
