Ahuja
CSD-5201T
- Power
- 20 WATTS
- Series
- CSD Ceiling Speakers
- Category
- Speakers
- Category
- Ceiling Speakers

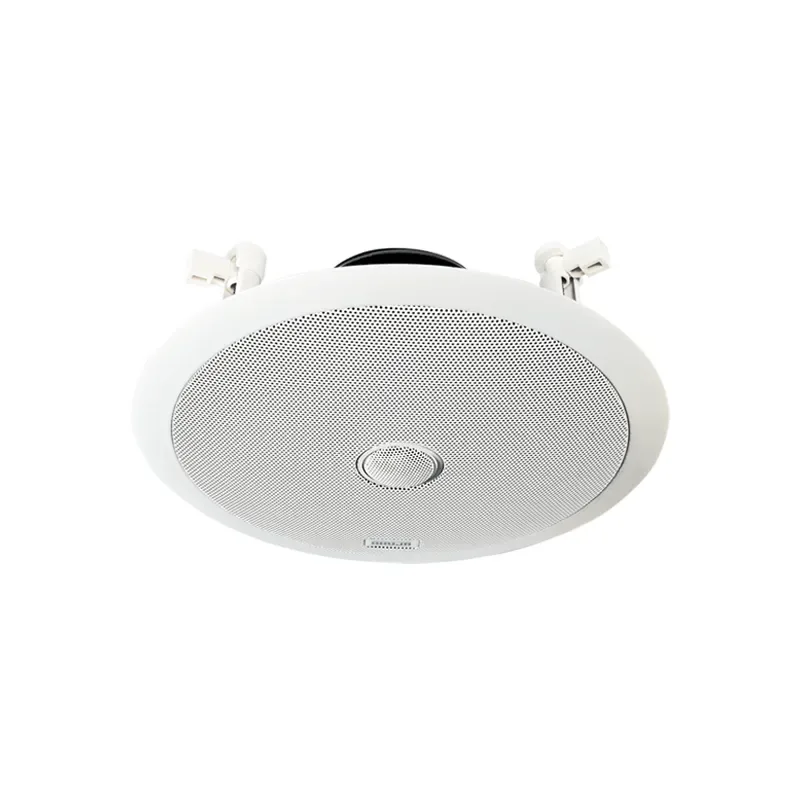

The Ahuja CSD-5201T is a 20W 2-way PA ceiling speaker. Operates on 100V line with power taps of 20/10/5W.
It has a moulded plastic frame with metal mesh grill.
Features
- High power 2-way flush mount ceiling speaker for excellent reproduction of both speech and music. Wide frequency response and adjustable tweeter for optimum directivity.
- Operates on 100V line with power taps of 20/10/5W.
- Moulded plastic frame with metal mesh grill.
- Tweeter can be tilted at an angle to focus clear, intelligible sound in the desired direction.
- 100V line operation with easy power tap selection through a terminal block.
- Ideal for Hotels… Office Buildings… Restaurants… Hospitals… Shopping Malls… Department Stores… Cinemas… Gyms…
Specifications, Q&A and videos
| Input Power | 20W RMS |
|---|---|
| Power Taps on 100V | 20/10/5W |
| Impedance | 500/1k/2kΩ |
| Frequency Response | 90-18,000Hz |
| SPL at 1kHz (1W/1m) | 91dB |
| Speaker | Woofer 150mm (5”), Tweeter 25mm (1”) |
| Dimensions | ø200 × H85 mm |
| Weight | 1.36kg |
The CSD-5201T is an Ahuja 2-way PA ceiling speaker in the CSD Ceiling Speakers rated 20 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High power 2-way flush mount ceiling speaker for excellent reproduction of both speech and music. Wide frequency response and adjustable tweeter for optimum directivity; Operates on 100V line with power taps of 20/10/5W; Moulded plastic frame with metal mesh grill; Tweeter can be tilted at an angle to focus clear, intelligible sound in the desired direction; 100V line operation with easy power tap selection through a terminal block; Ideal for Hotels… Office Buildings… Restaurants… Hospitals… Shopping Malls… Department Stores… Cinemas… Gyms….
The CSD-5201T input power is 20W RMS.
The CSD-5201T power taps on 100v is 20/10/5W.
The CSD-5201T impedance is 500/1k/2kΩ.
The CSD-5201T frequency response is 90-18,000Hz.
The CSD-5201T spl at 1khz (1w/1m) is 91dB.
