Ahuja
CDH-200
- Power
- 20 WATTS
- Category
- Transducers
- Category
- Horn Drivers

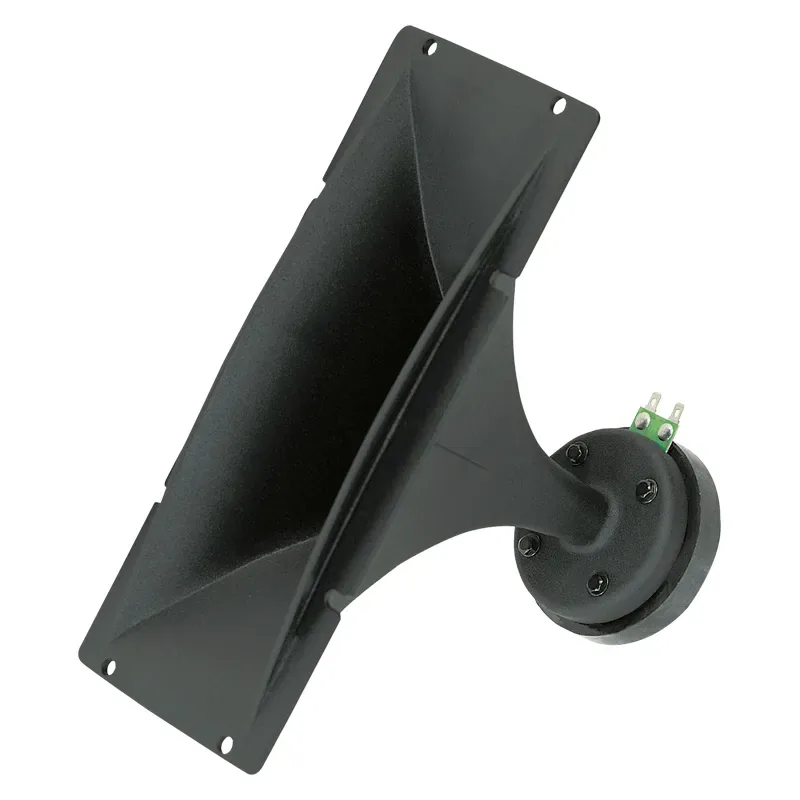

The Ahuja CDH-200 is a 20W PA compression horn driver. Professional compression driver-horn CDH-200 loudspeaker, is suitable for medium power speaker systems.
It is ideal for use in a 200W to 300W system.
Features
- Professional compression driver-horn CDH-200 loudspeaker, is suitable for medium power speaker systems.
- It is ideal for use in a 200W to 300W system.
- Can be combined with a single Low Frequency speaker like L12-MB150 or L15-MB300, to make an excellent medium power full range speaker system.
Specifications, Q&A and videos
| Power Capacity | 20W RMS |
|---|---|
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 105dB |
| Usable Frequency Range | 3kHz-15kHz |
| Recommended Crossover | 4kHz 12dB/oct |
| Voice Coil Diameter | 25.4 mm |
| Diaphragm Material | Phenolic Resin |
| Voice Coil Material | Round Copper Wire |
| Voice Coil Former | Nomex |
| Horn Material | ABS with Glass Filled Black Polycarbonate |
| Nominal Coverage Angle | H100° x V80° (-5 dB) |
| Horn Cut off Frequency | 780Hz |
| Mounting Cutout | W235 × H82 mm |
| Overall Dimensions | W270 × H110 × D205 mm |
| Weight | 1.36kg |
The CDH-200 is an Ahuja PA compression horn driver rated 20 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional compression driver-horn CDH-200 loudspeaker, is suitable for medium power speaker systems; It is ideal for use in a 200W to 300W system; Can be combined with a single Low Frequency speaker like L12-MB150 or L15-MB300, to make an excellent medium power full range speaker system.
The CDH-200 power capacity is 20W RMS.
The CDH-200 throat diameter is 25.4 mm (1”).
The CDH-200 nominal impedance is 8Ω.
The CDH-200 sensitivity (1w/1m ) is 105dB.
The CDH-200 usable frequency range is 3kHz-15kHz.
