Ahuja
CDH-1000
- Power
- 100 WATTS
- Category
- Transducers
- Category
- Horn Drivers
The Ahuja CDH-1000 is a 100W PA compression horn driver.

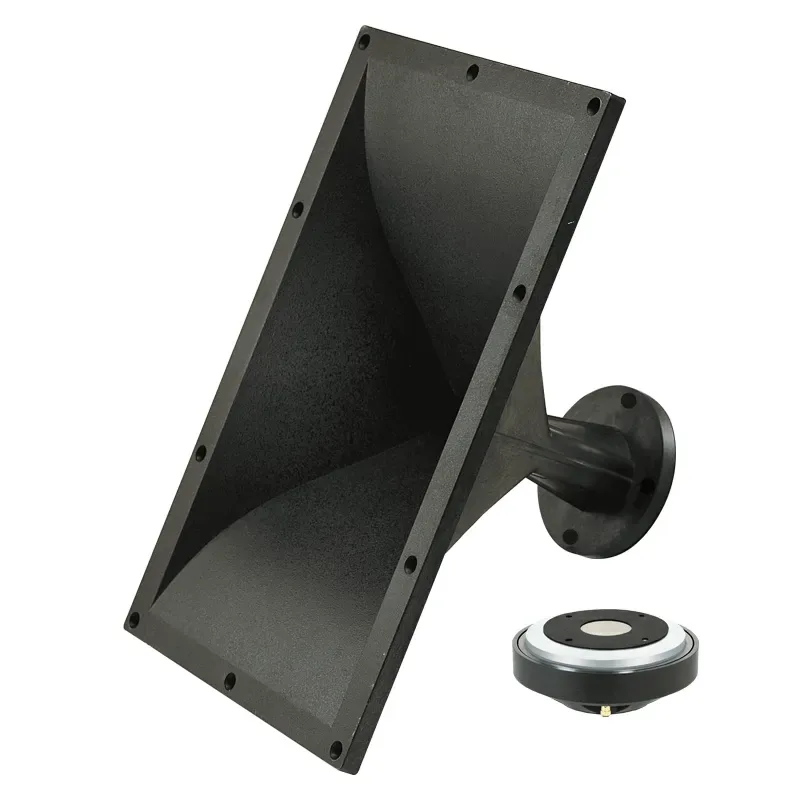

Professional heavy duty 5.08cm (2") throat compression driver-horn loudspeaker CDH-1000 (Horn H-7380 + Driver CD-750) is suitable for very high power speaker systems.
Features
- Professional heavy duty 5.08cm (2") throat compression driver-horn loudspeaker CDH-1000 (Horn H-7380 + Driver CD-750) is suitable for very high power speaker systems.
- It reproduces Mid and High frequencies with superb accuracy.
- Ideal for use with 2 nos.
- Low Frequency speakers AHUJA L15-LF500 to make a 1000 watts speaker system.
- It can also be used with a single L15-LF500. The horn is made of solid glass filled ABS.
- It has been designed specifically for all outdoor sound reinforcement applications.
Specifications, Q&A and videos
| Power Capacity | 100W RMS |
|---|---|
| Throat Diameter | 50 mm (2”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 108dB |
| Usable Frequency Range | 500Hz-18kHz |
| Recommended Crossover | 1.2kHz 18dB/oct |
| Voice Coil Diameter | 72.2 mm |
| Diaphragm Material | Titanium |
| Voice Coil Material | Edge Wound Copper Clad Aluminium Ribbon |
| Voice Coil Former | Resin Bonded Kapton |
| Horn Material | ABS with Glass Filled Black Polycarbonate |
| Nominal Coverage Angle | H90° x V40° (-6dB) |
| Horn Cut off Frequency | 400Hz |
| Mounting Cutout | W375 × H240 mm |
| Overall Dimensions | W440 × H280 × D241 mm (Horn only) |
| Weight | 6.2kg |
The CDH-1000 is an Ahuja PA compression horn driver rated 100 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional heavy duty 5.08cm (2") throat compression driver-horn loudspeaker CDH-1000 (Horn H-7380 + Driver CD-750) is suitable for very high power speaker systems; It reproduces Mid and High frequencies with superb accuracy; Ideal for use with 2 nos; Low Frequency speakers AHUJA L15-LF500 to make a 1000 watts speaker system; It can also be used with a single L15-LF500. The horn is made of solid glass filled ABS; It has been designed specifically for all outdoor sound reinforcement applications.
The CDH-1000 power capacity is 100W RMS.
The CDH-1000 throat diameter is 50 mm (2”).
The CDH-1000 nominal impedance is 8Ω.
The CDH-1000 sensitivity (1w/1m ) is 108dB.
The CDH-1000 usable frequency range is 500Hz-18kHz.
