SM Professional
V 12H
- Power
- 240 WATTS
- Series
- V Series Components
- Category
- Transducers
- Category
- Horn Drivers

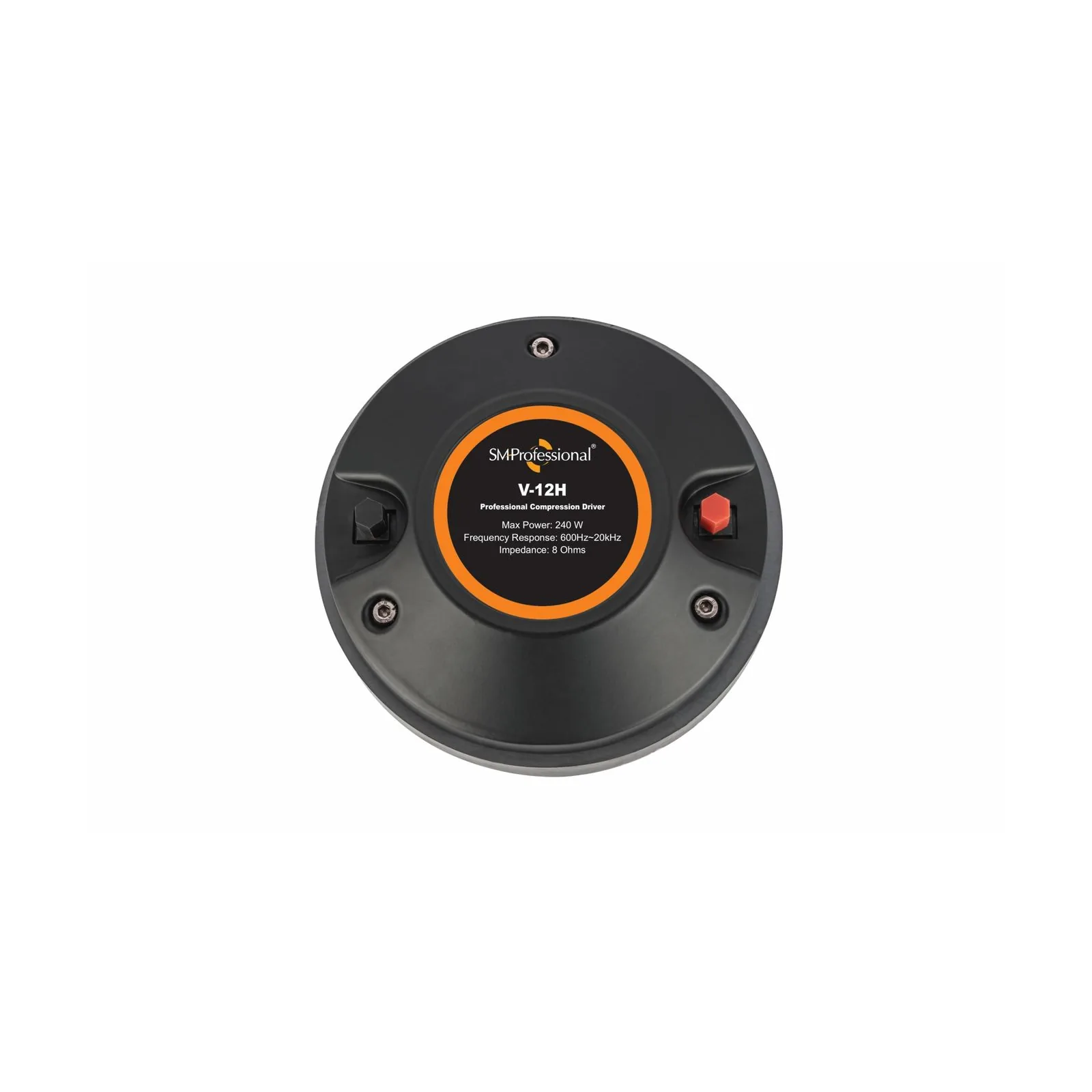

The SM Professional V-12H is a 120W (RMS) high frequency compression driver.
Engineered with high-performance components for immense clarity and throw, the HF driver is ideal for a wide variety of line array systems and high power loudspeaker cabinet enclosure designs.
Features
- High-quality 2.85” CCAR voice coil for immense clarity and throw.
- Engineered with high-performance components for incredible sensitivity.
- Ideal for a wide variety of line array systems and high power loudspeaker cabinet enclosure designs.
Specifications, Q&A and videos
| Product Type | HF |
|---|---|
| Power Output - (RMS / Peak) Watts | 120 /240 |
| Frequency Range (Hz) | 600-20000 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @1m) dB | 105 |
| Voice Coil Diameter (mm / inch) | 72.5/2.85 |
| Voice Coil Material | CCAR |
| Net Weight (Kg) | 4.5 |
The V 12H is an SM Professional 120W (RMS) high frequency compression driver in the V Series Components rated 240 WATTS. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-quality 2.85” CCAR voice coil for immense clarity and throw; Engineered with high-performance components for incredible sensitivity; Ideal for a wide variety of line array systems and high power loudspeaker cabinet enclosure designs.
The V 12H product type is HF.
The V 12H power output - (rms / peak) watts is 120 /240.
The V 12H frequency range (hz) is 600-20000.
The V 12H impedance (ω) is 8.
The V 12H sensitivity (1w @1m) db is 105.
