Ahuja
BTZ-10000
- Power
- 1000 WATTS
- Zones
- 2 Zones
- Series
- BTZ Series
- Category
- Power Amplifiers
- Category
- Zone Power Amplifiers

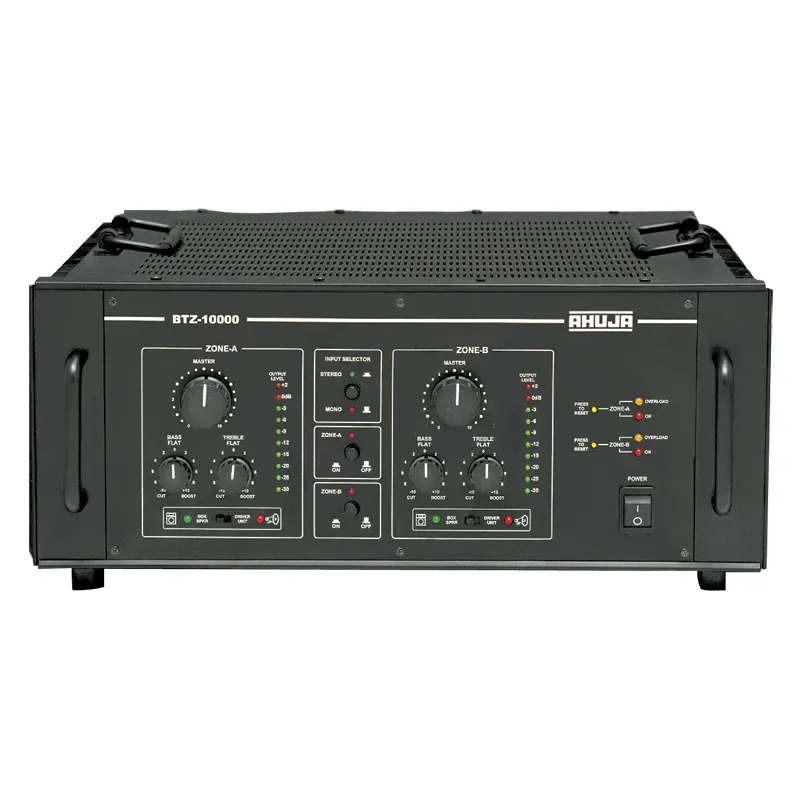

The Ahuja BTZ-10000 is a 1000W 2 zone PA power amplifier. Facilitates connection and operation of two groups of speakers simultaneously on 'Mono' mode.
Ideal for Places of Worship. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
Features
- Ahuja model BTZ-10000 is rugged, reliable, cost-effective 1000 watts Two Zone Amplifier. BTZ-10000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors.
- Stereo Music input for DJ programmes.
- Facilitates connection and operation of two groups of speakers simultaneously on 'Mono' mode. Ideal for Places of Worship.
- Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively.
- Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuit.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
Specifications, Q&A and videos
| Power Output | 750W + 750W Max., 500W + 500W RMS at 10% THD 450W + 450W RMS at 5% THD, 415W + 415W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V for each zone |
| Power Supply | AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1600VA DC: 16A |
| Dimensions | W510 × H220 × D440 mm |
| Weight | 40.0kg |
The BTZ-10000 is an Ahuja 2 zone PA power amplifier in the BTZ Series rated 1000 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Ahuja model BTZ-10000 is rugged, reliable, cost-effective 1000 watts Two Zone Amplifier. BTZ-10000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors; Stereo Music input for DJ programmes; Facilitates connection and operation of two groups of speakers simultaneously on 'Mono' mode. Ideal for Places of Worship; Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively; Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units; Resettable circuit breaker for protection against overload and short circuit.
The BTZ-10000 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The BTZ-10000 input channels is Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ.
The BTZ-10000 frequency response is 50-15,000Hz ±3dB.
The BTZ-10000 signal to noise ratio is 60dB.
The BTZ-10000 tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
