Ahuja
AWM-630VG
- Series
- AWM Wireless Microphones
- Category
- Microphones
- Category
- Wireless Microphones
Ahuja AWM-630VG is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Share application (school, temple, retail, events) for specification and quote.

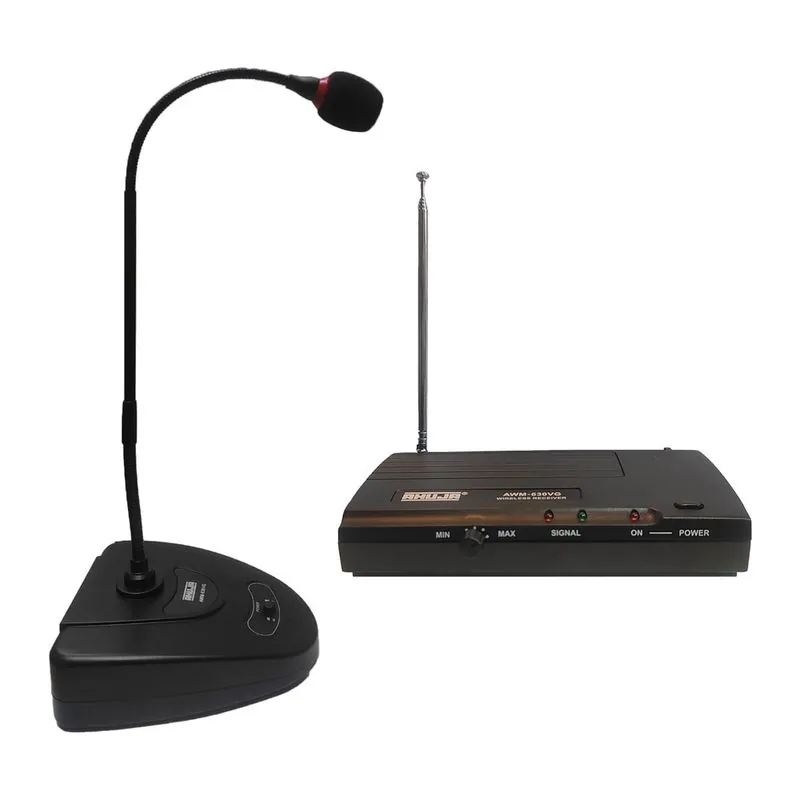

The Ahuja AWM-630VG is a high-band VHF wireless desktop microphone with a gooseneck condenser transmitter and table-top receiver. Optional wired XLR mode on the transmitter for podium and desk applications.
Features
- Stylish, rugged high-band VHF wireless desktop microphone and receiver available in multiple frequencies.

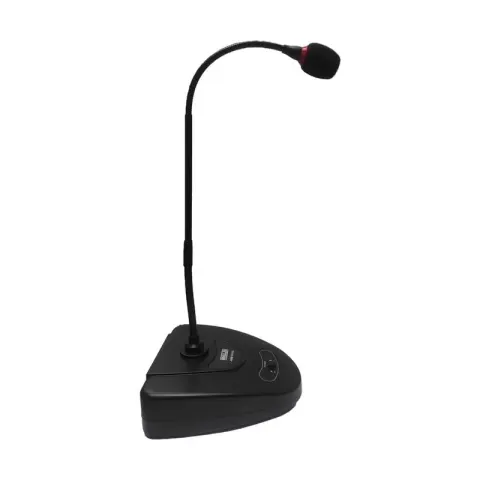

- Condenser unidirectional transmitter with sleek gooseneck and ring LED indication.
- Push-type ON/OFF switch on transmitter.

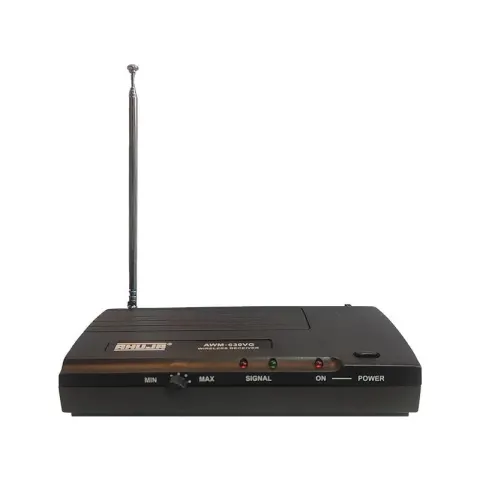

- Sensitive table-top receiver with telescopic antenna and noise squelch.

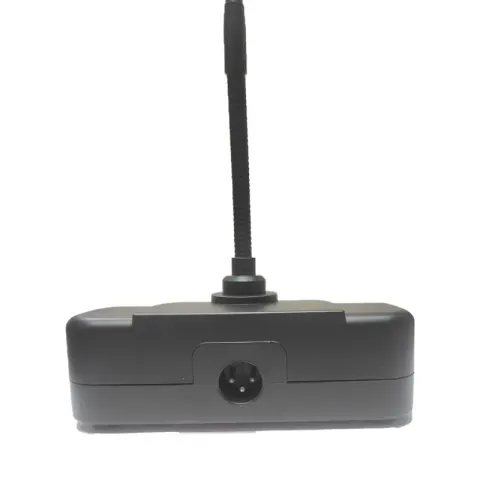

- Male XLR connector and cable on transmitter for wired mode when required.
- Transmitter operates on 2 × 1.5V UM-3 cells; receiver on 9V DC via supplied AC adaptor.
Specifications, Q&A and videos
| Transmitter RF Output | 10mW (Max.) |
|---|---|
| Transmitter Modulation | FM |
| Microphone Element | Condenser, Cardioid |
| Transmitter Frequency Response | 100-12,000Hz |
| Transmitter Power | 2 × 1.5V pencil cells |
| Transmitter Current | <40mA |
| Transmitter Dimensions | W145 × H50 × D155 mm |
| Transmitter Weight | 560g (w/o battery) |
| Receiver Frequency Stability | ±0.005% |
| Receiver Audio Output | 0-50mV adjustable |
| Receiver S/N | >90dB |
| Receiver Distortion | <0.5% |
| Receiver Power | 220-240V AC 50Hz via adaptor |
| Receiver Dimensions | W152 × H40 × D110 mm |
| Receiver Weight | 200g |
What type of PA vhf wireless desktop microphone is the AWM-630VG?
The AWM-630VG is an Ahuja PA vhf wireless desktop microphone in the AWM Wireless Microphones. Ahuja AWM-630VG is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the AWM-630VG?
Stylish, rugged high-band VHF wireless desktop microphone and receiver available in multiple frequencies; Condenser unidirectional transmitter with sleek gooseneck and ring LED indication; Push-type ON/OFF switch on transmitter; Sensitive table-top receiver with telescopic antenna and noise squelch; Male XLR connector and cable on transmitter for wired mode when required; Transmitter operates on 2 × 1.5V UM-3 cells; receiver on 9V DC via supplied AC adaptor.
What is the transmitter rf output of the AWM-630VG?
The AWM-630VG transmitter rf output is 10mW (Max.).
What is the transmitter modulation of the AWM-630VG?
The AWM-630VG transmitter modulation is FM.
What is the microphone element of the AWM-630VG?
The AWM-630VG microphone element is Condenser, Cardioid.
What is the transmitter frequency response of the AWM-630VG?
The AWM-630VG transmitter frequency response is 100-12,000Hz.
What is the transmitter power of the AWM-630VG?
The AWM-630VG transmitter power is 2 × 1.5V pencil cells.
