Ahuja
AWM-495VL
- Series
- AWM Wireless Microphones
- Category
- Microphones
- Category
- Wireless Microphones
Ahuja AWM-495VL is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Share application (school, temple, retail, events) for specification and quote.

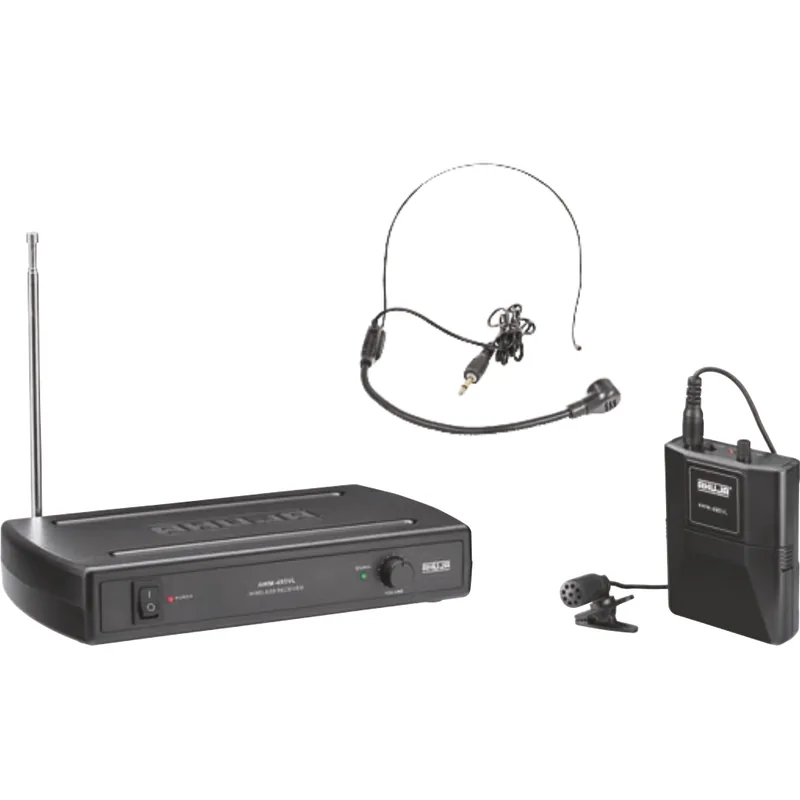

The Ahuja AWM-495VL is a compact single-channel VHF wireless microphone with a bodypack/lapel-style condenser transmitter and table-top receiver. Ideal for seminars, worship, and stage applications where a handheld is not required.
Features
- Single-channel VHF with quartz crystal locked high-band frequency and multiple frequency options.
- Internal transmitter antenna and telescopic receiver antenna for clear reception.
- Receiver operates on 12V DC via supplied AC adaptor; transmitter on 2 × 1.5V AA cells.
- 2-position ON/OFF slide switch and transmitter volume control.
- Receiver audio output via 6.3 mm (1/4") jack socket.
- Ideal for PA, stage, auditoriums, seminar halls, places of worship, and recreation centres.
Specifications, Q&A and videos
| Transmitter RF Output | 15mW (Max.) |
|---|---|
| Transmitter Modulation | FM (F3E) |
| Microphone Element | Condenser, Omnidirectional |
| Transmitter Dynamic Range | 80dB |
| Frequency Response | 80-15,000Hz |
| Transmitter Power | 3V (2 × 1.5V AA) |
| Transmitter Dimensions | W67 × H32 × D95 mm |
| Transmitter Weight | 60g (w/o battery) |
| Receiver Frequency Stability | ±0.005% quartz crystal |
| Receiver Audio Output | 0-55mV/1kΩ |
| Receiver S/N | >80dB |
| Receiver Distortion | <0.5% |
| Receiver Frequency Response | 50-15,000Hz |
| Receiver Power | 240V AC 50Hz via adaptor |
| Receiver Dimensions | W230 × H42 × D150 mm |
| Receiver Weight | 305g |
What type of single channel PA vhf wireless microphone is the AWM-495VL?
The AWM-495VL is an Ahuja single channel PA vhf wireless microphone in the AWM Wireless Microphones. Ahuja AWM-495VL is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the AWM-495VL?
Single-channel VHF with quartz crystal locked high-band frequency and multiple frequency options; Internal transmitter antenna and telescopic receiver antenna for clear reception; Receiver operates on 12V DC via supplied AC adaptor; transmitter on 2 × 1.5V AA cells; 2-position ON/OFF slide switch and transmitter volume control; Receiver audio output via 6.3 mm (1/4") jack socket; Ideal for PA, stage, auditoriums, seminar halls, places of worship, and recreation centres.
What is the transmitter rf output of the AWM-495VL?
The AWM-495VL transmitter rf output is 15mW (Max.).
What is the transmitter modulation of the AWM-495VL?
The AWM-495VL transmitter modulation is FM (F3E).
What is the microphone element of the AWM-495VL?
The AWM-495VL microphone element is Condenser, Omnidirectional.
What is the transmitter dynamic range of the AWM-495VL?
The AWM-495VL transmitter dynamic range is 80dB.
What is the frequency response of the AWM-495VL?
The AWM-495VL frequency response is 80-15,000Hz.
