Ahuja
AWM-495VHL
- Channels
- 2 Channels
- Series
- AWM Wireless Microphones
- Category
- Microphones
- Category
- Wireless Microphones

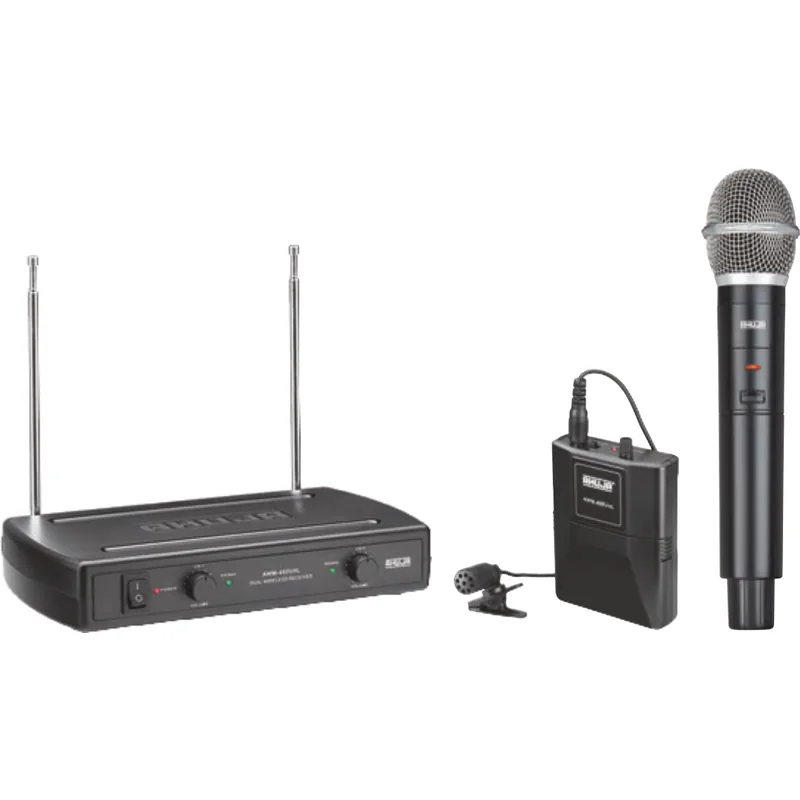

The Ahuja AWM-495VHL is a dual-channel VHF wireless microphone system with a handheld dynamic transmitter and a bodypack transmitter paired with one dual-channel receiver.
Ideal for PA, stage, auditoriums, seminar halls, and places of worship.
Features
- Compact dual-channel VHF system available in multiple frequency groups.
- Handheld dynamic transmitter and bodypack transmitter for mixed applications.
- Internal transmitter antennas and two telescopic receiver antennas for clear reception.
- Receiver operates on 12V DC via supplied AC adaptor; each transmitter on 2 × 1.5V AA cells.
- 2-position ON/OFF slide switch on transmitters.
- Individual OUT 1 and OUT 2 plus mixed OUT 1+2 audio outputs.
- Ideal for PA, stage, auditoriums, seminar halls, places of worship, and recreation centres.
Specifications, Q&A and videos
| Handheld TX RF Output | 15mW (Max.) |
|---|---|
| Handheld TX Microphone Element | Dynamic, Cardioid |
| Handheld TX Frequency Response | 50-12,000Hz |
| Handheld TX Power | 3V (2 × 1.5V AA) |
| Handheld TX Dimensions | Ø55 (L248) mm |
| Handheld TX Weight | 180g (w/o battery) |
| Bodypack TX RF Output | 15mW (Max.) |
| Bodypack TX Microphone Element | Condenser, Omnidirectional |
| Bodypack TX Frequency Response | 80-15,000Hz |
| Bodypack TX Power | 3V (2 × 1.5V AA) |
| Bodypack TX Dimensions | W67 × H32 × D95 mm |
| Bodypack TX Weight | 60g (w/o battery) |
| Receiver Frequency Stability | ±0.005% quartz crystal |
| Receiver Audio Output | Ch1 / Ch2 / Ch1+2: 0-55mV/1kΩ |
| Receiver S/N | >80dB |
| Receiver Distortion | <0.5% |
| Receiver Frequency Response | 50-15,000Hz |
| Receiver Power | 240V AC 50Hz via adaptor |
| Receiver Dimensions | W230 × H42 × D150 mm |
| Receiver Weight | 353g |
The AWM-495VHL is an Ahuja dual channel PA vhf wireless microphone in the AWM Wireless Microphones. The Ahuja AWM-495VHL is a dual-channel VHF wireless microphone system with a handheld dynamic transmitter and a bodypack transmitter paired with one dual-channel receiver. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Compact dual-channel VHF system available in multiple frequency groups; Handheld dynamic transmitter and bodypack transmitter for mixed applications; Internal transmitter antennas and two telescopic receiver antennas for clear reception; Receiver operates on 12V DC via supplied AC adaptor; each transmitter on 2 × 1.5V AA cells; 2-position ON/OFF slide switch on transmitters; Individual OUT 1 and OUT 2 plus mixed OUT 1+2 audio outputs.
The AWM-495VHL handheld tx rf output is 15mW (Max.).
The AWM-495VHL handheld tx microphone element is Dynamic, Cardioid.
The AWM-495VHL handheld tx frequency response is 50-12,000Hz.
The AWM-495VHL handheld tx power is 3V (2 × 1.5V AA).
The AWM-495VHL handheld tx dimensions is Ø55 (L248) mm.
