Ahuja
AU-60
- Power
- 60 WATTS
- Series
- AU Driver Units
- Category
- Transducers
- Category
- Driver Units

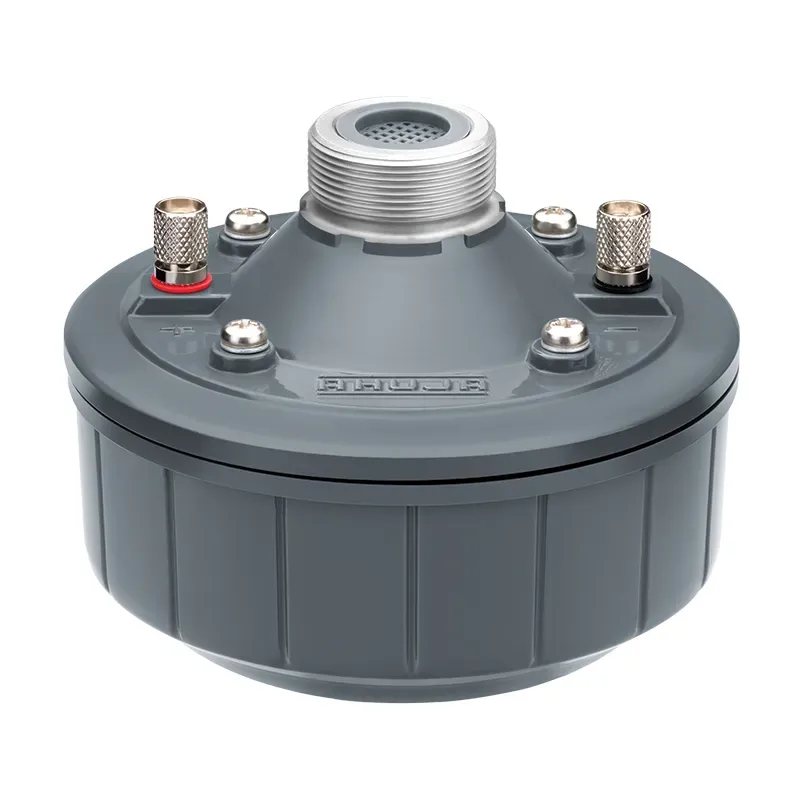

The Ahuja AU-60 is a 60W driver unit.
It uses a degree of protection ip 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use.
Features
- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
Specifications, Q&A and videos
| Input Power | 60W RMS/90W Max. |
|---|---|
| Impedance | 16Ω |
| Frequency Response | 160-7,000Hz |
| SPL at 1kHz | 113.5dB/1W/1m, 132dB/60W/1m |
| Temperature Range | -30° to + 70°C |
| Throat Coupling | 1-3/8” - 18TPI, Throat Couple No.1 |
| Dimensions | ø125 x H100 mm |
| Weight | 2.05kg |
| Material | Die-cast Aluminium Acoustic Head (Flange) |
The AU-60 is an Ahuja driver unit in the AU Driver Units rated 60 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Weatherproof and rugged construction; High SPL, crisp penetrating sound; Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation; Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
The AU-60 input power is 60W RMS/90W Max..
The AU-60 impedance is 16Ω.
The AU-60 frequency response is 160-7,000Hz.
The AU-60 spl at 1khz is 113.5dB/1W/1m, 132dB/60W/1m.
The AU-60 temperature range is -30° to + 70°C.
