Ahuja
AU-50XT
- Power
- 50 WATTS
- Series
- AU Driver Units
- Category
- Transducers
- Category
- Driver Units

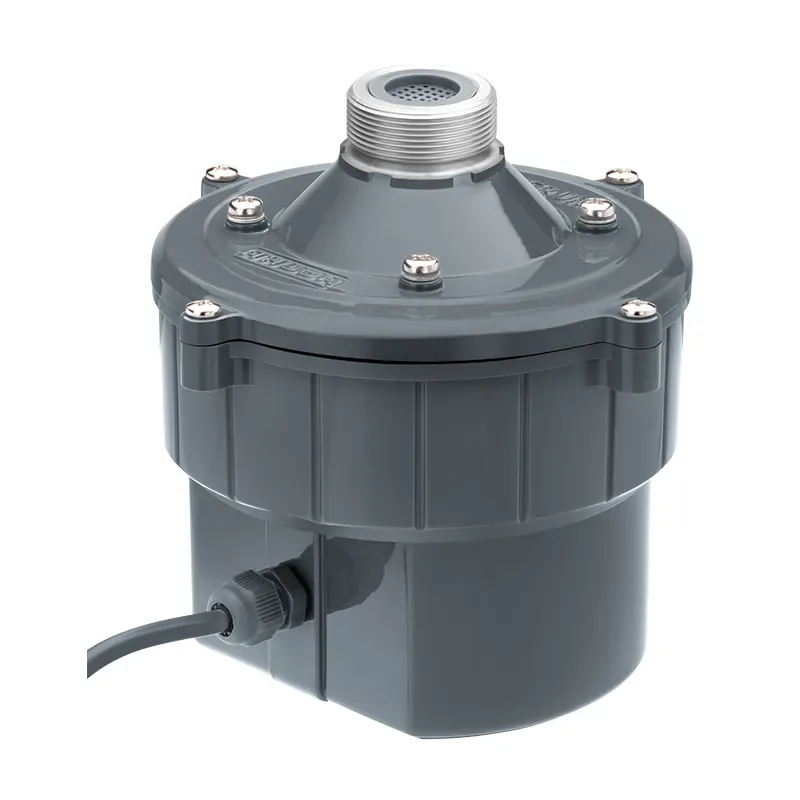

The Ahuja AU-50XT is a 50W driver unit. It uses a degree of protection ip 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use.
It has a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
Features
- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Models AU-50XT have a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
Specifications, Q&A and videos
| Input Power | 50W RMS/70W Max. |
|---|---|
| Impedance/Power Taps | On 100V Line 200Ω/50W, 250Ω/40W, 500Ω/20W, 1kΩ/10W, 2kΩ/5W |
| Frequency Response | 160-7,000Hz |
| SPL at 1kHz | 113dB/1W/1m, 130dB/50W/1m |
| Temperature Range | -30° to + 70°C |
| Throat Coupling | 1-3/8” - 18TPI, Throat Couple No.1 |
| Dimensions | ø150 x H143 mm |
| Weight | 2.47kg |
| Material | Die-cast Aluminium Acoustic Head (Flange) |
The AU-50XT is an Ahuja driver unit in the AU Driver Units rated 50 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Weatherproof and rugged construction; High SPL, crisp penetrating sound; Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation; Models AU-50XT have a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear; Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
The AU-50XT input power is 50W RMS/70W Max..
The AU-50XT impedance/power taps is On 100V Line 200Ω/50W, 250Ω/40W, 500Ω/20W, 1kΩ/10W, 2kΩ/5W.
The AU-50XT frequency response is 160-7,000Hz.
The AU-50XT spl at 1khz is 113dB/1W/1m, 130dB/50W/1m.
The AU-50XT temperature range is -30° to + 70°C.
