Ahuja

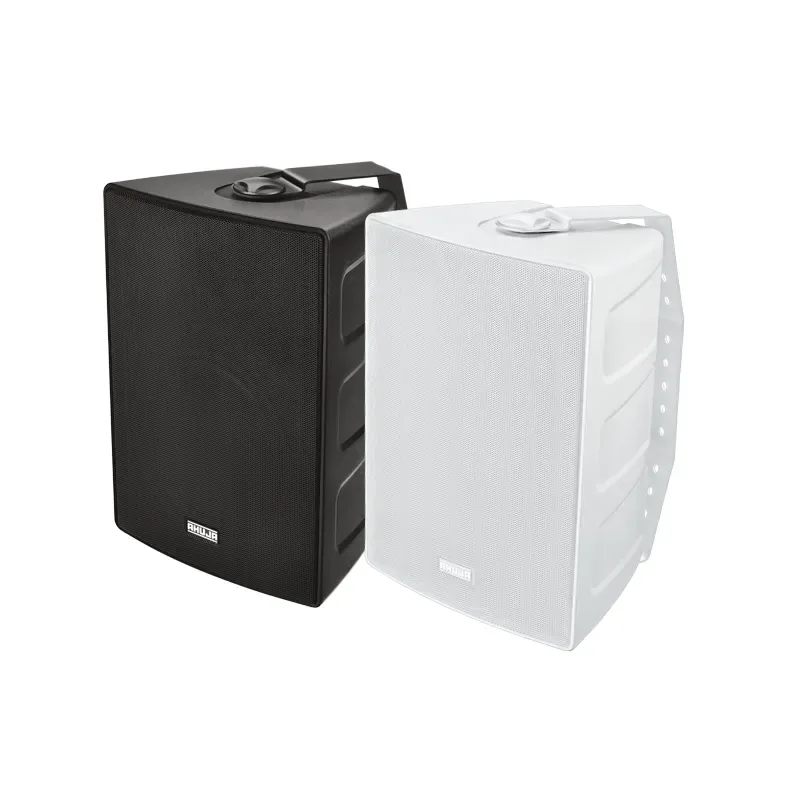

The Ahuja ASX-612B is a 60W compact PA wall speaker. It combines a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
Ideal for various indoor and outdoor applications in Airports, Banks, Schools, Hotels, Hospitals, Showrooms etc.
| Power Rating | 60W RMS/90W Max. |
|---|---|
| Power Taps | 60W, 60/40/30/20/10W |
| Impedance/Voltage | 8Ω / 100V |
| Frequency Response | 50-20,000Hz |
| SPL at 1kHz (1W/1m) | 87dB |
| Speaker | Woofer 163mm (6½”), Tweeter 25mm (1”) |
| Dimensions | W215 × H310 × D175 mm |
| Weight | 3.22kg/3.80kg |
The ASX-612B is an Ahuja compact PA wall speaker in the ASX Series rated 60 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network; ASX-612B and ASX-612W are low impedance 8Ω speakers; ASX-612BT and ASX-612WT are meant for use on 100V line with power taps of 60W, 40W, 30W, 20W &10W; Easy power tap selection through a slotted rotary switch knob at the rear; 'U' type bracket for convenient & firm mounting of the wall speaker.
The ASX-612B power taps is 60W, 60/40/30/20/10W.
The ASX-612B impedance/voltage is 8Ω / 100V.
The ASX-612B frequency response is 50-20,000Hz.
The ASX-612B spl at 1khz (1w/1m) is 87dB.
The ASX-612B speaker is Woofer 163mm (6½”), Tweeter 25mm (1”).
