SM Professional

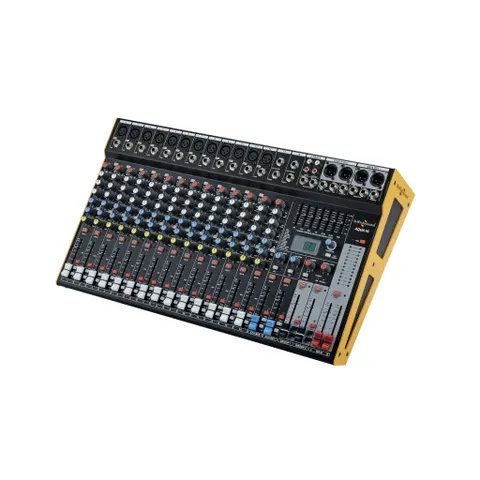

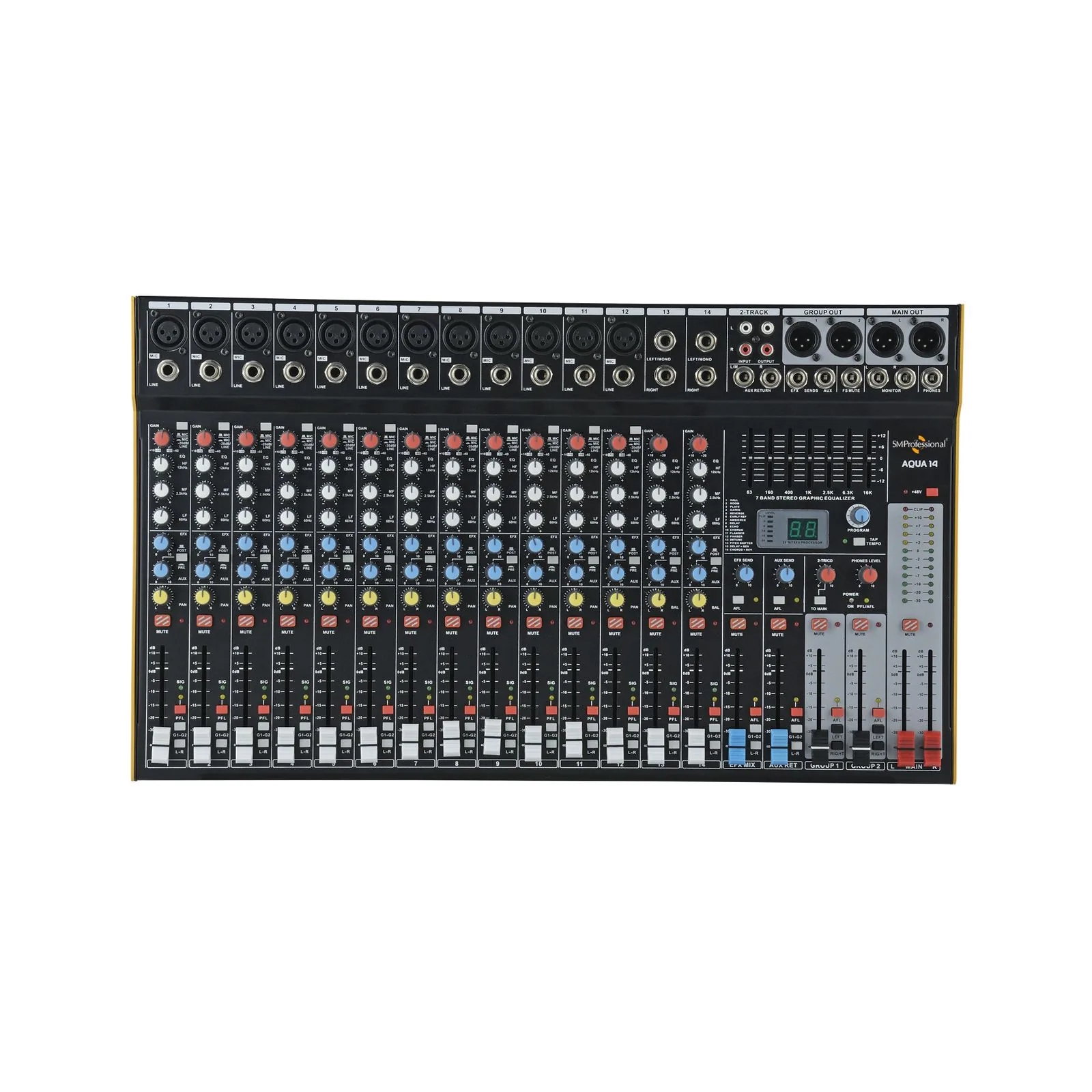

AQUA 14
- Series
- Aqua Series
- Category
- Mixers
- Category
- Analog Mixers
The SM Professional Aqua Series are a range Compact Professional Mixing Consoles designed for a large variety of applications.
Features
- 12 Mic/Line + 2 Stereo
- 2 Aux Sends – Aux + EFX (When internal FX is not used).
- 2 Sub groups with Individual outputs.
- Globally Switched +48V Phantom Power.
- 3 Band EQ per Channel.
- Mic / Line selectivity switch on each mono channel with 20 dB PAD for mic input.
- Mix, Group & PFL Routing per channel.
- L/R Pan control & signal LED per channel.
- Headphone and monitor outputs with level control.
- Stereo RCA Playback & record outputs.
- Built in 24-bit Multi-FX processor with Tap Tempo.
- FS mute jack to connect to a standard footswitch to switch On/Off internal EFX.
- Balanced XLR Outputs.
Specifications, Q&A and videos
| Series | Aqua Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 0dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu/ -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min / Gain Max) | +10dBu / -20dBu |
| Mic Input | 2KΩ Balanced |
| Line Input | 20KΩ (Balanced) / 10KΩ (Unbalanced) |
| Main Output level (Nominal / Max) | 0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | 75Ω |
| Frequency Response | 20Hz to 20KHz (+0/-2 dB) |
| Total Harmonic Distortion | < 0.006% |
| Signal to Noise Ratio | 85dB |
| Equalisation (Mic / Stereo Line) | -±15dB (12KHz HF / 2.5 KHz MF/60Hz LF) / ±15dB (12KHz HF / 2.5 KHz MF/80Hz LF) |
| Effect | 16 Effects, 24-Bit EFX Processor |
| Phantom Supply | +48V |
| Dimensions (W x D x H) mm | 538 x 317 x 134 |
| Net Weight (Kgs.) | 6.5 |
The AQUA 14 is an SM Professional Compact mixers with multi-EFX and graphic EQ in the Aqua Series. The SM Professional Aqua Series are a range Compact Professional Mixing Consoles designed for a large variety of applications. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
12 Mic/Line + 2 Stereo; 2 Aux Sends – Aux + EFX (When internal FX is not used); 2 Sub groups with Individual outputs; Globally Switched +48V Phantom Power; 3 Band EQ per Channel; Mic / Line selectivity switch on each mono channel with 20 dB PAD for mic input.
The AQUA 14 nominal gain (mic/line/stereo line) is 0dB/40dB/20dB.
The AQUA 14 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The AQUA 14 mic (gain min/gain max) is -10dBu/ -60dBu.
The AQUA 14 line (gain min /gain max) is +10dBu / -40dBu.
The AQUA 14 stereo line (gain min / gain max) is +10dBu / -20dBu.
