SM Professional
The SM Professional Aqua Series is a Compact Professional mixer, designed for a large variety of applications.
| Series | Aqua Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain ( Mic/Line/Sterio Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu/ -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Mic Input | 2KΩ Balanced |
| Line Input | 20KΩ (Balanced) / 10KΩ (Unbalanced) |
| Main Output Level (Nominal / Max) | 0dBu (0.775V RMS) / +22dBu (10V RMS) |
| Main Output Impedance | 75Ω |
| Frequency Response | 20Hz to 20KHz (+0/-2 dB) |
| Total Harmonic Distortion | < 0.006% |
| Signal to Noise Ratio | 85dB |
| Mono MIC (Treble/Mid/Bass) | ±15dB (12KHz HF / 2.5 KHz MF/60Hz LF) |
| Stereo Line (Treble/Mid/Bass) | ±15dB (12KHz HF / 2.5 KHz MF/80Hz LF) |
| Effects | 16 Effects, 24-Bit EFX Processor |
| Phantom Supply | +48V |
| Dimensions (W x D x H in mm) | 430 x 317x 134 |
| Net Weight (Kgs.) | 5.5 |

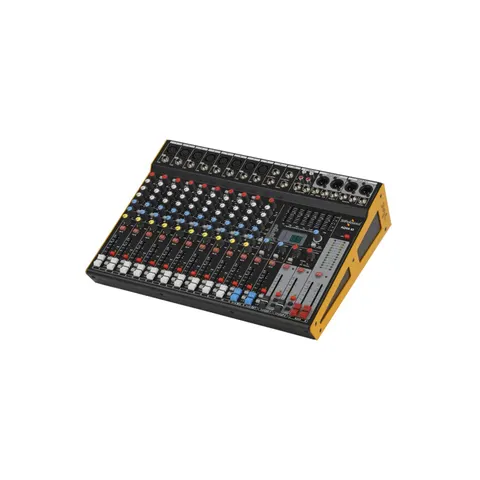

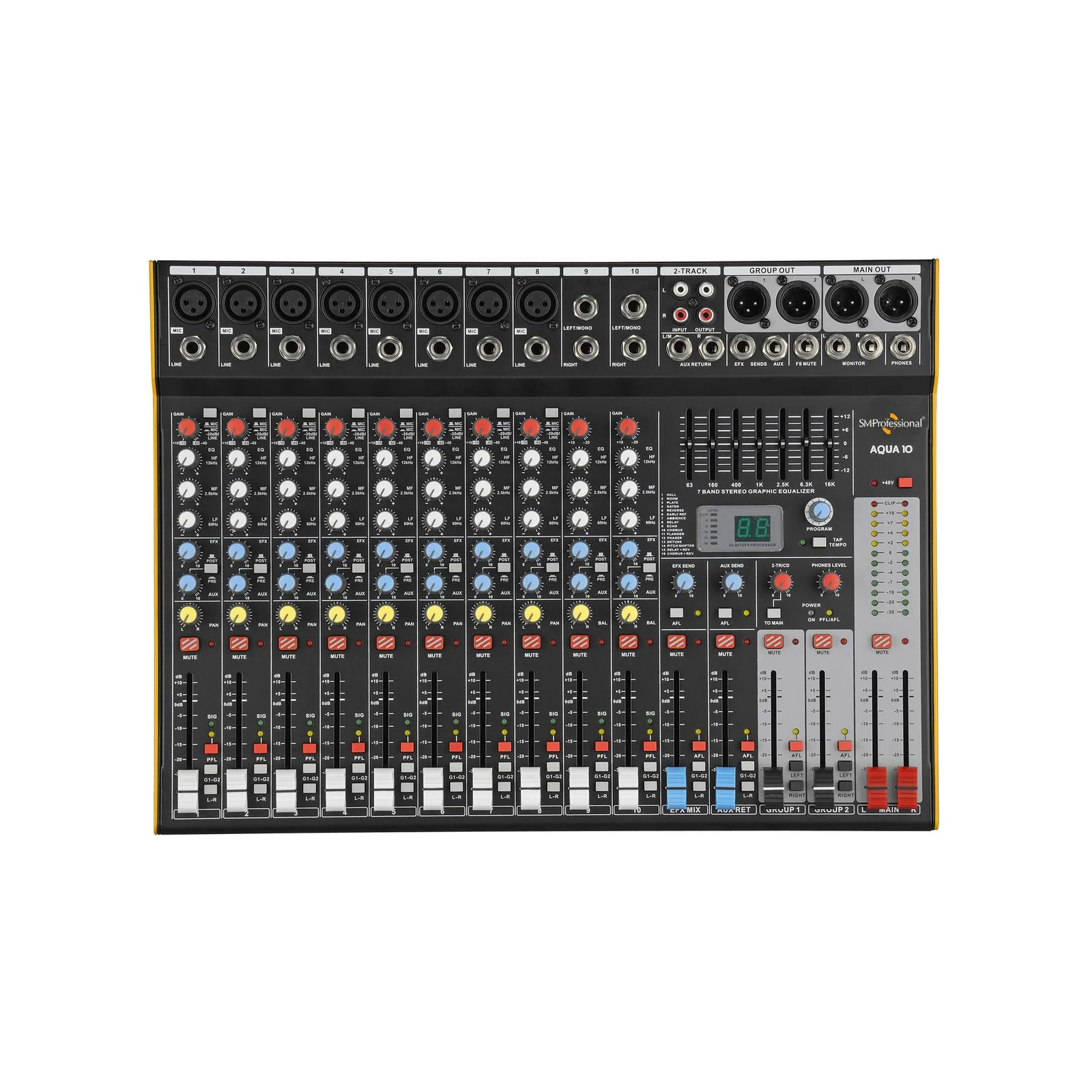

The AQUA 10 is an SM Professional compact mixers with multi-efx and graphic eq in the Aqua Series. The SM Professional Aqua Series is a Compact Professional mixer, designed for a large variety of applications. Available from Mansukhlal Sales Corp, an authorized dealer.
8 Mic/Line + 2 Stereo; 3 Band EQ per channel; Mic / Line selectivity switch on each mono channel with 20 dB PAD for mic input; Mix, Group & PFL Routing per channel; L/R Pan control & signal LED per channel; 2 Aux Sends - Aux + EFX (When internal FX is not used).
The AQUA 10 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The AQUA 10 max gain ( mic/line/sterio line) is 80dB/60dB/40dB.
The AQUA 10 mic (gain min/gain max) is -10dBu/ -60dBu.
The AQUA 10 line (gain min /gain max) is +10dBu / -40dBu.
The AQUA 10 stereo line (gain min /gain max) is +10dBu / -20dBu.
