SM Professional
The SM Professional AiR Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability.
| Series | AiR Series |
|---|---|
| Gain (Mic/Line) | 60dB/40dB |
| Mic (Gain Min/Gain Max) | -5dBu / -60dBu |
| Line (Gain Min /Gain Max) | +6dBu / -40dBu |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-3 dB) |
| Total Harmonic Distortion | < 0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80Hz |
| EFX | delay with repeat |
| Power Supply | AC 240 V/50Hz |
| Dimensions (W x D x H in mm) | 250 x 335 x 115 |
| Net Weight (Kgs.) | 3 |

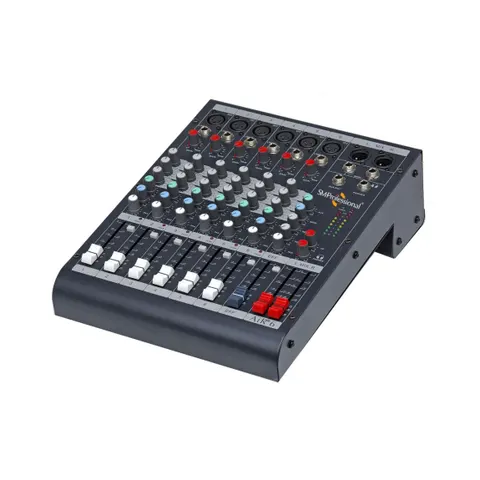

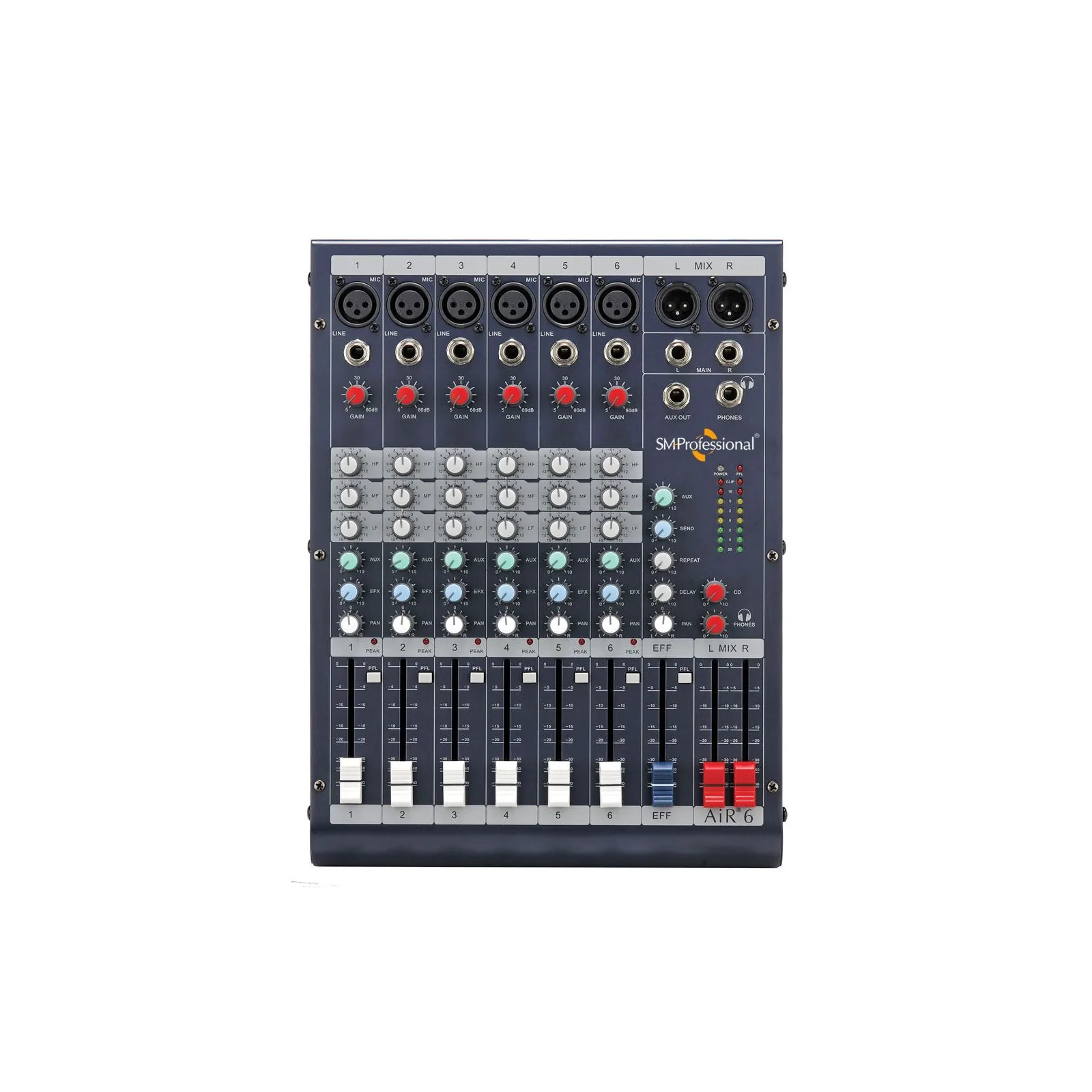

The AiR 6 is an SM Professional analog mixing console in the AiR Series. The SM Professional AiR Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability. Available from Mansukhlal Sales Corp, an authorized dealer.
6 Mic / Line; 3 Band EQ per channel; 1 Aux send; PFL (Cue) Switch with individual channel control; L/R pan pot and clip LED per channel; Stereo RCA CD input with Control.
The AiR 6 gain (mic/line) is 60dB/40dB.
The AiR 6 mic (gain min/gain max) is -5dBu / -60dBu.
The AiR 6 line (gain min /gain max) is +6dBu / -40dBu.
The AiR 6 main output level (nominal / max) is +0dBu (0.775V RMS) / +20dBu (7.75V RMS).
The AiR 6 frequency response is 20Hz to 20KHz (+0/-3 dB).
