SM Professional
AiR 4
- Series
- AiR Series
- Category
- Mixers
- Category
- Analog Mixers

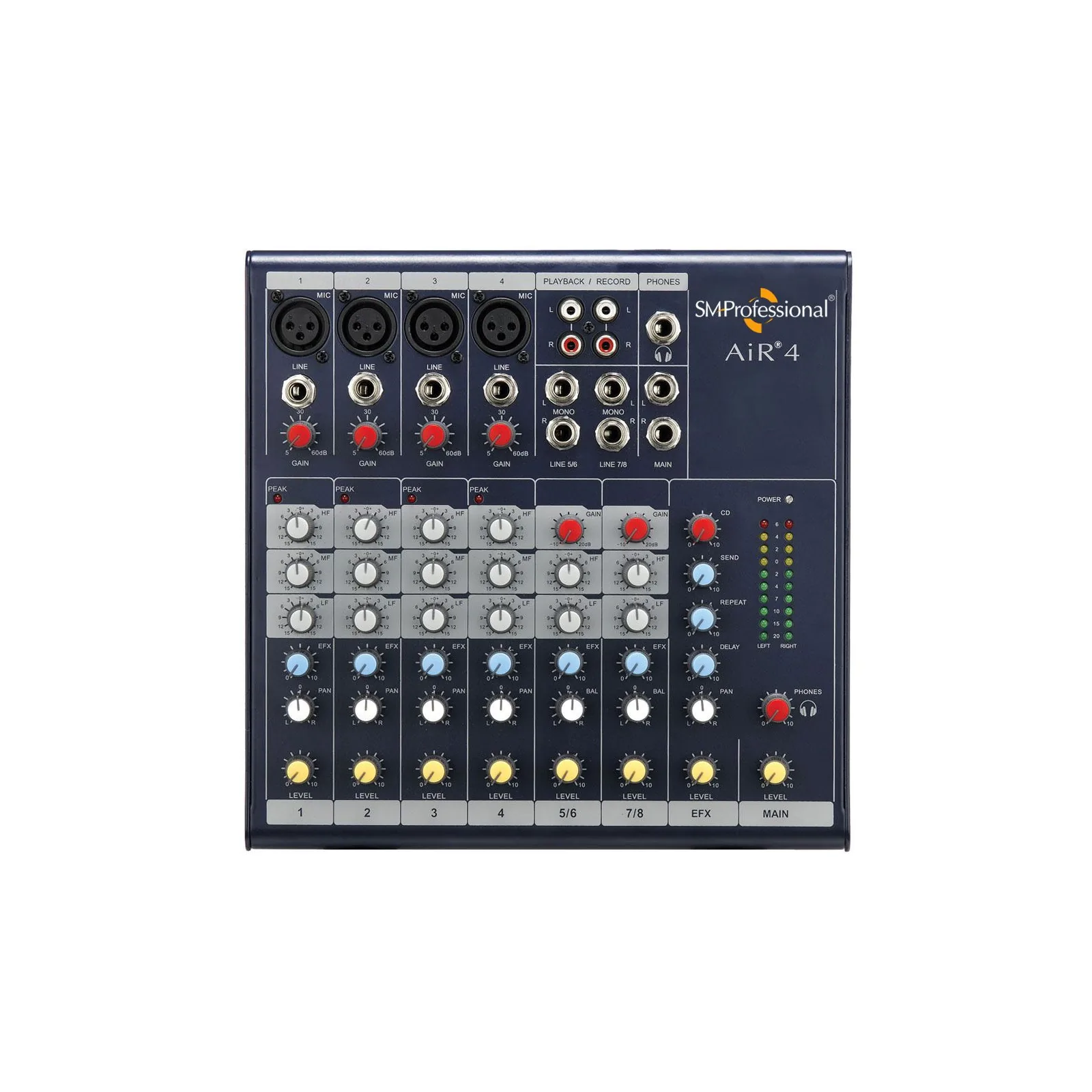

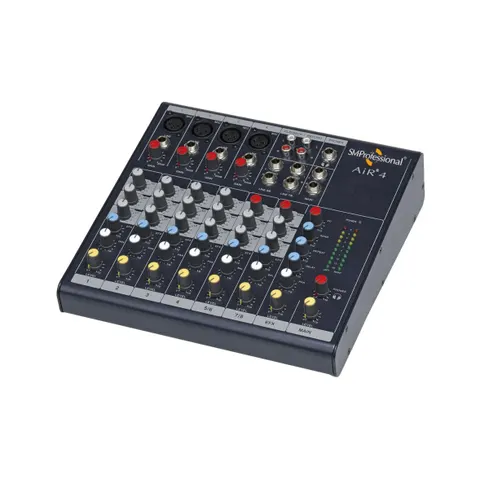

The SM Professional AiR 4 is a professional compact mixer designed to fit your needs, as well as your workspace.
With the abundant features this mixer is ideal for applications ranging from small PA set-ups to broadcasters & home studios.
Features
- 4 Mic / Line + 2 Stereo Line Inputs
- 3 Band EQ per channel
- Rotary control knobs per channel
- Delay EFX on board & FX send per channel.
- Dual 10 Segment L/R LED meter for master level.
- Stereo RCA CD In & Out with Control.
- L/R Pan Pot & Clip LED per Channel
- Headphone output with control
- Balanced ¼” Jack Master outputs.
Specifications, Q&A and videos
| Series | AiR Series |
|---|---|
| Gain (Mic/Line) | 60dB/40dB |
| Mic (Gain Min/Gain Max) | -5dBu / -60dBu |
| Line (Gain Min /Gain Max) | +6dBu / -40dBu |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-3 dB) |
| Total Harmonic Distortion | < 0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80 Hz |
| EFX | Delay with repeat |
| Power Supply | AC 240 V / 50Hz |
| Dimensions (W x D x H in mm) | 245 x 245 x 85 |
| Net Weight (Kgs.) | 2.25 |
The AiR 4 is an SM Professional Robust analog mixing consoles for budget-conscious professional in the AiR Series. The SM Professional AiR 4 is a professional compact mixer designed to fit your needs, as well as your workspace. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
4 Mic / Line + 2 Stereo Line Inputs; 3 Band EQ per channel; Rotary control knobs per channel; Delay EFX on board & FX send per channel; Dual 10 Segment L/R LED meter for master level; Stereo RCA CD In & Out with Control.
The AiR 4 gain (mic/line) is 60dB/40dB.
The AiR 4 mic (gain min/gain max) is -5dBu / -60dBu.
The AiR 4 line (gain min /gain max) is +6dBu / -40dBu.
The AiR 4 main output level (nominal / max) is +0dBu (0.775V RMS) / +20dBu (7.75V RMS).
The AiR 4 frequency response is 20Hz to 20KHz (+0/-3 dB).
