Ahuja
AI-22
- Category
- Mixers
- Category
- USB Audio Interfaces

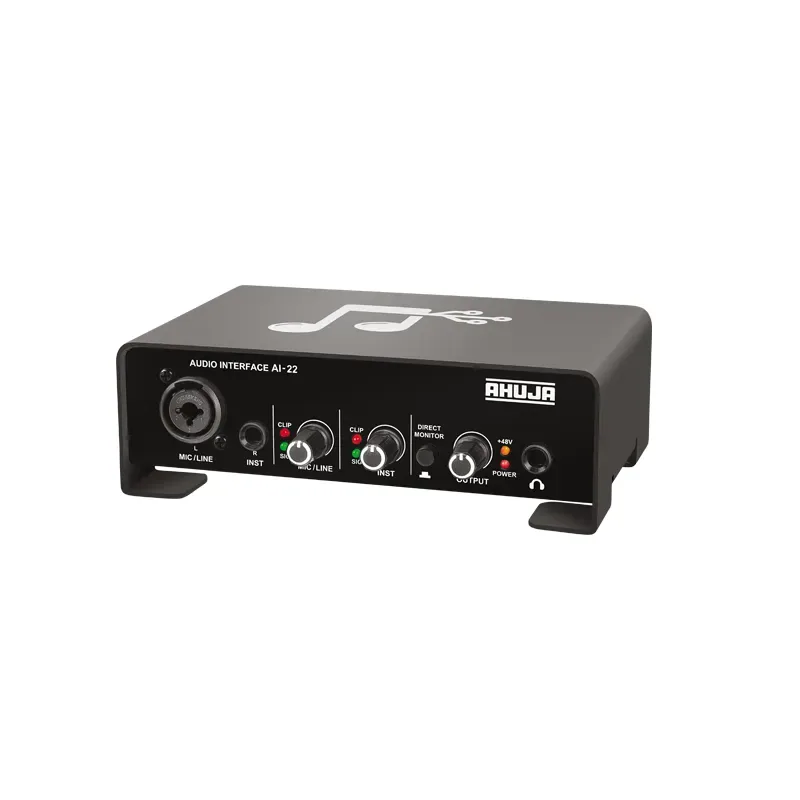

The Ahuja AI-22 is a 2 x 2 USB audio interface. It has a balanced mic/line input.
Features 2 inputs (Mic/Line and Instrument Level) and 2 outputs.
Features
- Studio Quality(16Bit/48kHz) Digital Recording.
- Features 2 inputs (Mic/Line & Instrument Level) and 2 outputs.
- Extreme low-Latency digital streaming.
- Switchable Phantom power.
- Supports Windows/Android & Mac iOS.
- Compatible with popular DAW software.
- USB 2.0 Bus-powered.
- Compact durable Aluminum body.
Specifications, Q&A and videos
| Type | Combo XLR Female / 6.3mm (¼") TRS balanced |
|---|---|
| Frequency Response (±1.0dB) | 30Hz to 20kHz |
| Input Impedance (Balanced) | 2.2kΩ / 18kΩ |
| THD+N (1kHz @ +0dBu Output) | £ 0.5% |
| S/N Ratio (1kHz @ +0dBu Output) | >55dB |
| Input Level (0dBu Gain, 1kHz) | 3mV (±1mV) / 35mV (±2mV) |
| Phantom Power (±2 VDC) | +48 VDC ( at XLR female only) |
| Input Impedance | 1MΩ |
| Frequency Response (±1dB) | 20Hz to 20kHz |
| Maximum Output (±20mV) | 775mV |
| Bit Depth | 16 bit |
| Internal Sample Frequency Selections | 44.1, 48 (kHz) |
| Power | USB bus-powered |
| Dimensions | W175 × H58 × D123 mm |
| Weight | 550g approx. |
The AI-22 is an Ahuja 2 x 2 USB audio interface. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Studio Quality(16Bit/48kHz) Digital Recording; Features 2 inputs (Mic/Line & Instrument Level) and 2 outputs; Extreme low-Latency digital streaming; Switchable Phantom power; Supports Windows/Android & Mac iOS; Compatible with popular DAW software.
The AI-22 type is Combo XLR Female / 6.3mm (¼") TRS balanced.
The AI-22 frequency response (±1.0db) is 30Hz to 20kHz.
The AI-22 input impedance (balanced) is 2.2kΩ / 18kΩ.
The AI-22 thd+n (1khz @ +0dbu output) is £ 0.5%.
The AI-22 s/n ratio (1khz @ +0dbu output) is >55dB.
