Ahuja
AI-202
- Category
- Mixers
- Category
- USB Audio Interfaces

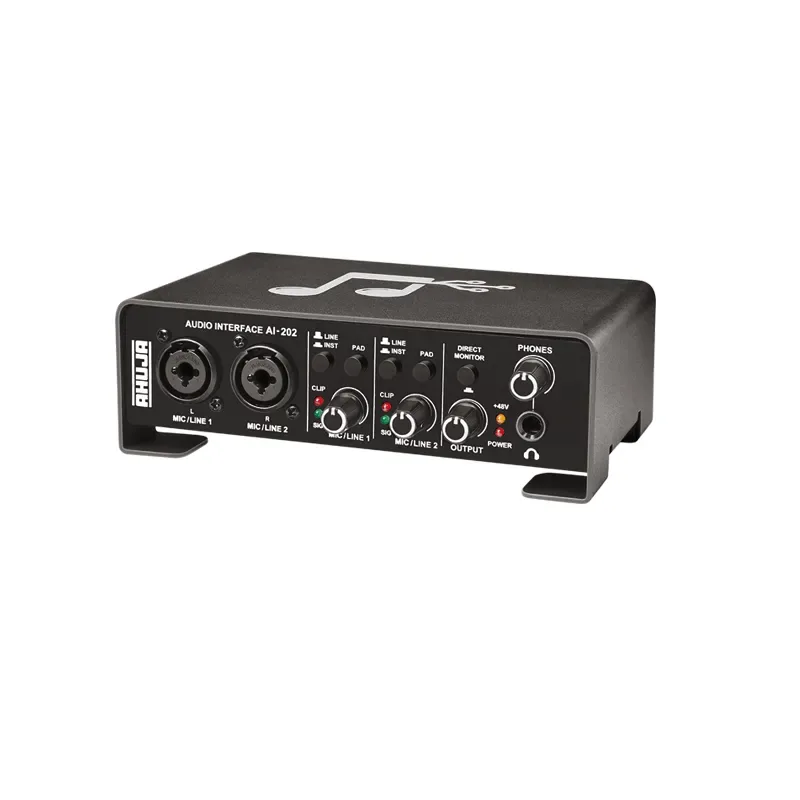

The Ahuja AI-202 is a 2 x 2 USB audio interface. It has a balanced mic/line input.
Features two inputs (Mic/Line and Instrument Level) and two outputs.
Features
- Studio Quality(16Bit/48kHz) Digital Recording.
- Features two inputs (Mic/Line & Instrument Level) and two outputs.
- Extreme low-Latency digital streaming.
- Switchable Phantom power.
- Supports Windows/Android & Mac iOS.
- Compatible with popular DAW softwares.
- USB 2.0 Bus-powered.
- Compact durable Aluminum body.
Specifications, Q&A and videos
| Type | Combo XLR Female X2/ 2 x 6.3mm TRS, Balanced |
|---|---|
| Input Impedance (Balanced) | 2.2kΩ/ 18kΩ |
| THD+N (1kHz @ +0dBu Output) | <0.5% |
| S/N Ratio (1kHz @ +0dBu Output) | >55dB |
| Input Level (0dBu Gain, 1kHz) | 3mV ±1mV / 45mV ± 2mV |
| Phantom Power | +48 VDC at both XLR Female only |
| Input Impedance | 1MΩ |
| Frequency Response | 20-20,000Hz |
| Pad ON | -18dB |
| Maximum Output ±20mV | 550mV |
| Bit Depth | 16 bit |
| Internal Sample Frequency Selections | 44.1, 48 kHz |
| Power | USB Bus Powered |
| Dimensions | W175 × H58 × D123 mm |
| Weight | 615g |
The AI-202 is an Ahuja 2 x 2 USB audio interface. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Studio Quality(16Bit/48kHz) Digital Recording; Features two inputs (Mic/Line & Instrument Level) and two outputs; Extreme low-Latency digital streaming; Switchable Phantom power; Supports Windows/Android & Mac iOS; Compatible with popular DAW softwares.
The AI-202 type is Combo XLR Female X2/ 2 x 6.3mm TRS, Balanced.
The AI-202 input impedance (balanced) is 2.2kΩ/ 18kΩ.
The AI-202 thd+n (1khz @ +0dbu output) is <0.5%.
The AI-202 s/n ratio (1khz @ +0dbu output) is >55dB.
The AI-202 input level (0dbu gain, 1khz) is 3mV ±1mV / 45mV ± 2mV.
