SM Professional
Mini Pro 12
- Channels
- 12 Channels
- Series
- Mini Series
- Category
- Mixers
- Category
- Compact Mixers

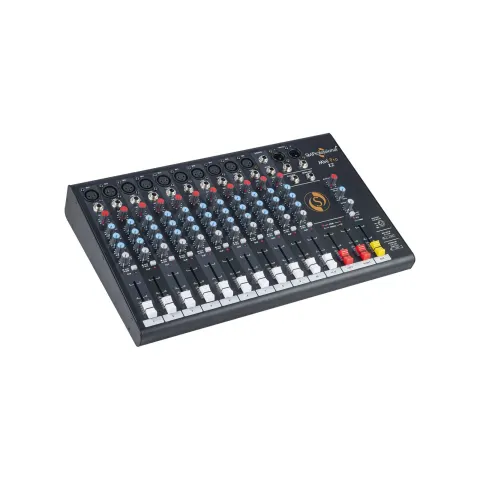

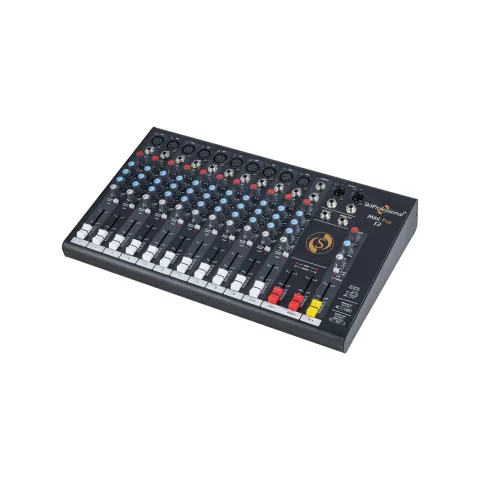

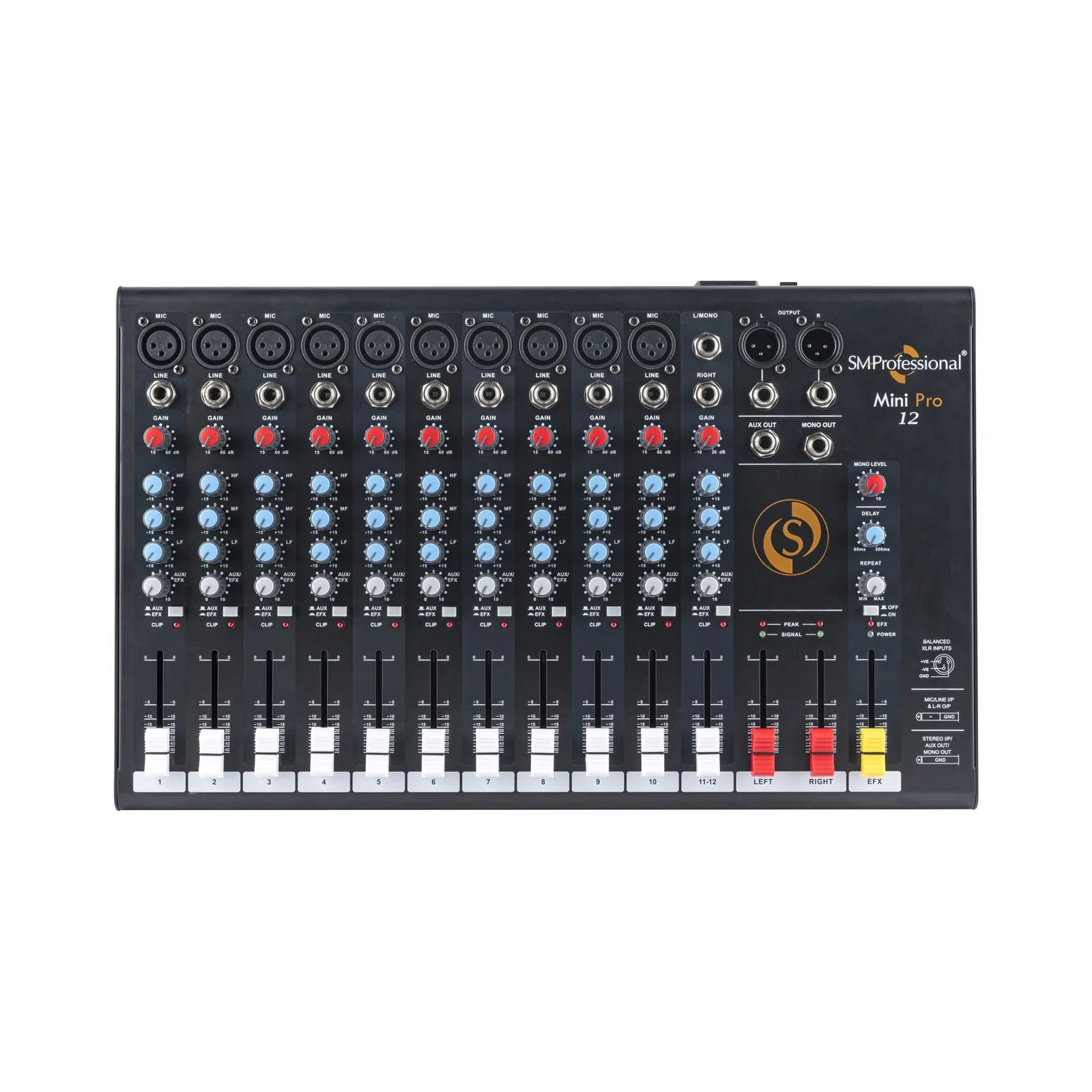

The SM Professional Mini Pro 12 is an ultra-compact and portable 12 channel audio mixing console with professional-grade features. Sporting a small footprint, the mixer features 12 inputs (10 x XLR mic / 12 x ¼” line), 3-band EQ, delay EFX, XLR & ¼” jack master outputs and individual ¼” Aux and mono summed output.
This compact mixer is ideal for a wide variety of mobile PA applications.
Features
- Gain control and 3-band EQ per channel.
- Switchable gain & EQ between media player and stereo channel.
- Built-in echo/delay processor with unique e- delay.
- Clip LED indication per channel.
- Balanced XLR & 1⁄4” jack master output.
- Individual 1⁄4” Aux and mono summed output.
- Responsive 45mm faders.
Specifications, Q&A and videos
| Number of Inputs | 10 XLR Mic / 12 1⁄4” Line |
|---|---|
| Mic Input | 48dB |
| Line input | 48dB |
| Stereo Input | 30dB |
| Signal/Noise Ratio | -64dB |
| Clip indication | -4dB prior to true clip. |
| Equalisation (Treble / Mid / Bass) | ±15dB @ 10kHz / 2.5kHz / 100Hz |
| Dimensions (W x D x H) mm | 426 x 180 x 57 |
| Net Weight (Kg) | 2.5 |
The Mini Pro 12 is an SM Professional and portable 12 channel audio Mixer in the Mini Series. The SM Professional Mini Pro 12 is an ultra-compact and portable 12 channel audio mixing console with professional-grade features. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Gain control and 3-band EQ per channel; Switchable gain & EQ between media player and stereo channel; Built-in echo/delay processor with unique e- delay; Clip LED indication per channel; Balanced XLR & 1⁄4” jack master output; Individual 1⁄4” Aux and mono summed output.
The Mini Pro 12 number of inputs is 10 XLR Mic / 12 1⁄4” Line.
The Mini Pro 12 mic input is 48dB.
The Mini Pro 12 line input is 48dB.
The Mini Pro 12 stereo input is 30dB.
The Mini Pro 12 signal/noise ratio is -64dB.
