SM Professional
XSM 585
- Power
- 1600 WATTS
- Series
- XSM Series
- Category
- Transducers
- Category
- Speaker Components

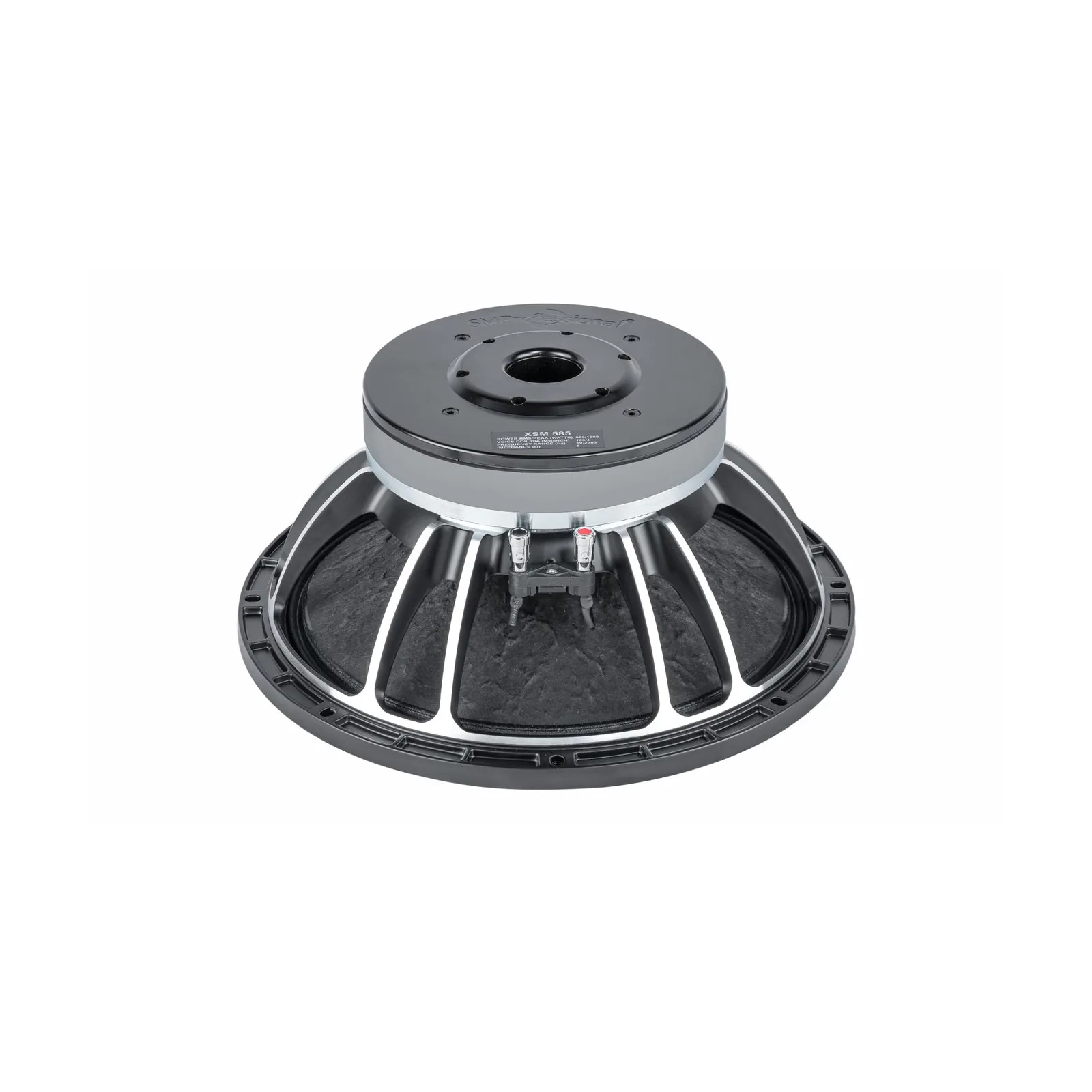

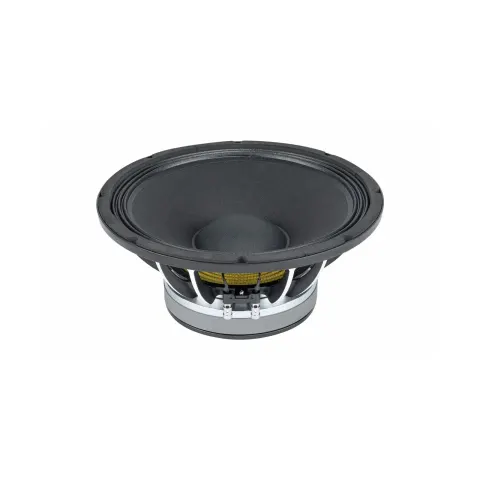

The SM Professional XSM 585 is a high-quality 15” 800W (RMS) / 1600W (Peak) mid-bass transducer.
Assembled using high performance components, the transducer delivers excellent sound quality at a value-driven price point.
Features
- Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling.
- Heavy-duty die-cast frame with a wide flange for increased rigidity.
- Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch
Specifications, Q&A and videos
| Product Type | Mid-Bass |
|---|---|
| Power Output - (RMS / Peak) Watts | 800 / 1600 |
| Frequency Range (Hz) | 50-2000 |
| Impedance (Ω) | 8 |
| Sensitivity (1w @1m) dB | 95 |
| Nominal Diameter (mm/inch) | 388 / 15 |
| Voice Coil Diameter (mm/Inch) | 100 / 4 |
| Voice Coil Material | Copper |
| Kind of Layer | Inside/Outside |
| Basket | Aluminium |
| Net Weight (Kg) | 11.8 |
The XSM 585 is an SM Professional 15” 800W (RMS) / 1600W (Peak) mid-bass transducer in the XSM Series. The SM Professional XSM 585 is a high-quality 15” 800W (RMS) / 1600W (Peak) mid-bass transducer. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Ventilated voice coil gap to reduce power compression, improve conversion efficiency, and optimum cooling; Heavy-duty die-cast frame with a wide flange for increased rigidity; Engineered to suit a wide variety of enclosure designs to deliver high power, clarity, and punch.
The XSM 585 product type is Mid-Bass.
The XSM 585 power output - (rms / peak) watts is 800 / 1600.
The XSM 585 frequency range (hz) is 50-2000.
The XSM 585 impedance (ω) is 8.
The XSM 585 sensitivity (1w @1m) db is 95.
