Ahuja
WSX-684T
- Power
- 8 WATTS
- Series
- WSX Wall Speakers
- Category
- Speakers
- Category
- Wall Speakers

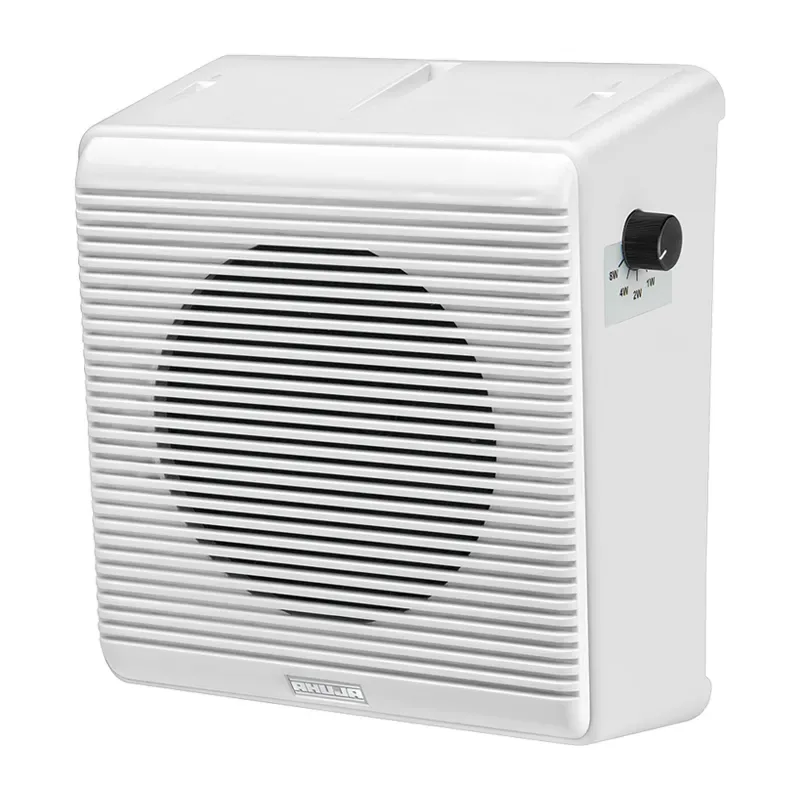

The Ahuja WSX-684T is an 8W PA wall speaker with a 15.24cm (6") full range wall speaker, 8W/100V. It has a holes provided on the cabinet for mounting with screws to make it vandal-proof.
Ideal for use in Schools, Offices, BPOs, Hospitals, Banks, Restaurants and Showrooms.
Features
- Clear & clean sound for speech and music.
- Elegant plastic cabinet in white colour.
- 15.24cm (6") Full Range Wall Speaker, 8W/100V
- Facility to select four taps & ON OFF position, through an external rotary switch knob.
- Key hole for easy wall mounting.
- Holes provided on the cabinet for mounting with screws to make it vandal proof.
- Ideal for use in Schools, Offices, BPOs, Hospitals, Banks, Restaurants & Showrooms.
Specifications, Q&A and videos
| Power Rating | 8W RMS/12W Max. |
|---|---|
| Power Taps on 100v | 8/4/2/1W |
| Impedance | 1.25k/2.5k/5k/10kΩ |
| Frequency Response | 60-15,000Hz |
| SPL at 1kHz (1W/1m) | 92dB |
| Dimensions | W230 × H250 × D115 mm |
| Weight | 1.30kg |
The WSX-684T is an Ahuja PA wall speaker in the WSX Wall Speakers. The Ahuja WSX-684T is an 8W PA wall speaker with a 15.24cm (6") full range wall speaker, 8W/100V. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Clear & clean sound for speech and music; Elegant plastic cabinet in white colour; 15.24cm (6") Full Range Wall Speaker, 8W/100V; Facility to select four taps & ON OFF position, through an external rotary switch knob; Key hole for easy wall mounting; Holes provided on the cabinet for mounting with screws to make it vandal proof.
The WSX-684T power taps on 100v is 8/4/2/1W.
The WSX-684T impedance is 1.25k/2.5k/5k/10kΩ.
The WSX-684T frequency response is 60-15,000Hz.
The WSX-684T spl at 1khz (1w/1m) is 92dB.
The WSX-684T dimensions is W230 × H250 × D115 mm.
