SM Professional
Vak 50
- Category
- Conference Systems
- Category
- Vāk Conference

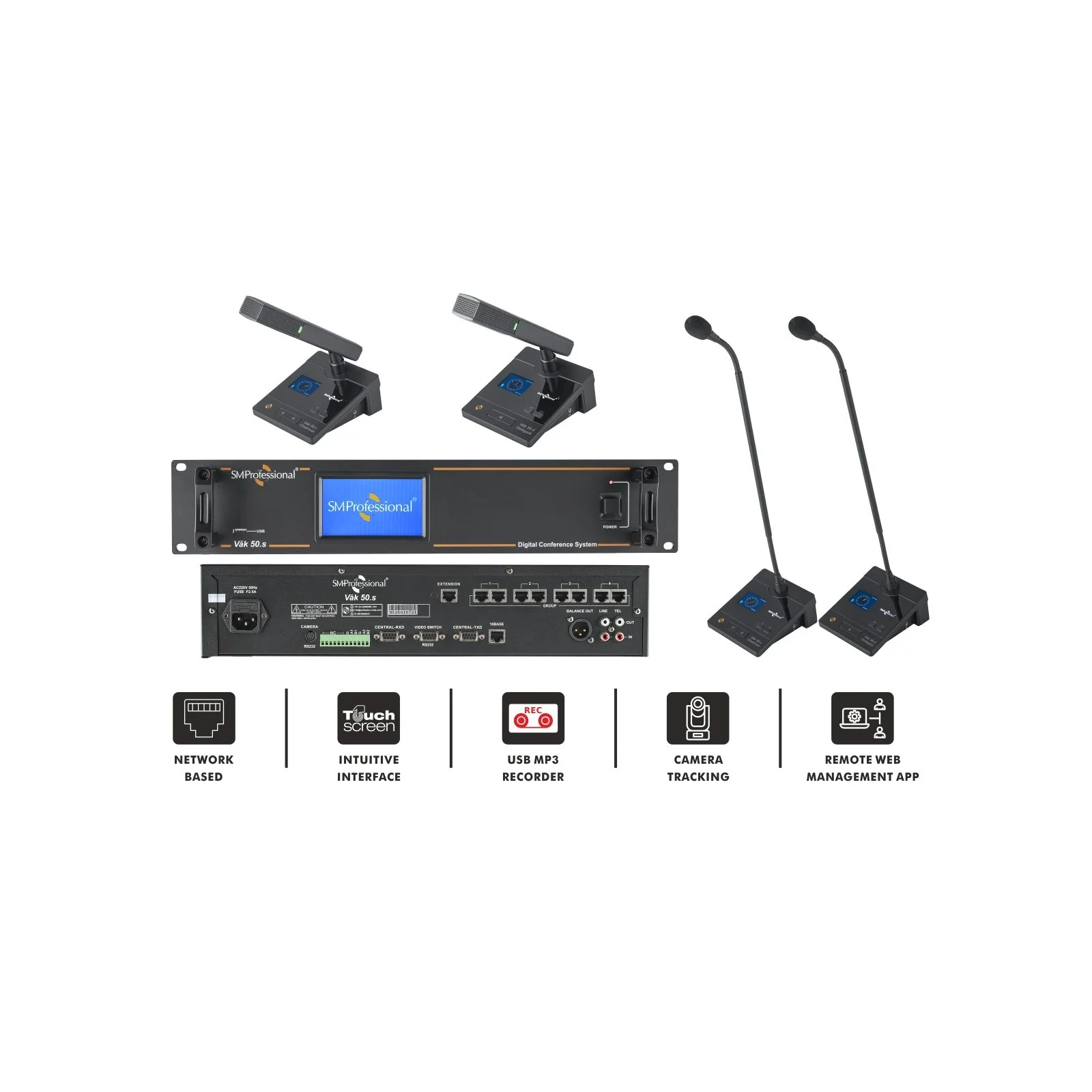

The Vāk 50 is a premium Digital Conference System with Network Connectivity & Camera Tracking and more.
Integrating state-of-the-art Digital Signal Processing technologies, network-based architecture, remote web management system, advanced priority control, ultra functional operating modes and more, the system is geared to empower seamless and scalable conferencing in large meeting applications.
Features
- Professional digital wired conference system.
- Seamless network connectivity via standard RJ45 ethernet connectors.
- Supports up to 100 participants by default for small to medium meeting scenarios.
- Can support up to 1000 participants via optional extender for larger meeting scenarios.
- Multifunctional operating modes such as FIFO, LIFO, chairman, all ON, auto mode and more.
- Advanced priority control with manual and auto recover options.
- Remote microphone ON/OFF and shutdown.
- Built-in USB MP2 recorder with sequential file saving and storage.
- RS-232 and RS-485 camera controller interface.
- Supports one camera system out-of-the-box and multi camera systems via optional extender.
- Embedded browser-based web management app for remote configuration and control via a PC, laptop or smartphone.
- User-friendly interface with responsive LCD touch screen.
- Quick plug-and-play installation, easy-to-use, no operator required.
- Ideal for boardrooms, conference rooms, legislative chambers and other large and complex meeting scenarios.
Specifications, Q&A and videos
| Operating Distance | Between 2 microphones (2m) |
|---|---|
| Balanced Output Level | -4dBV |
| Frequency Response | 100Hz-10KHz |
| Signal to Noise Ratio | 80dB |
| Connector for chairman/delegate | RJ45 |
| Audio Input Connector | Line: RCA X 1, TEL: RCA X 1 |
| Audio Output Connector | Line: XLR x 1, RCA x1, TEL: RCA x 1 |
| Line Sensitivity | -15dB |
| Power Supply | AC 220 V, 50Hz |
| Dimension (W x D X H) mm | 483 x 326 x 90 |
| Net Weight (Kg) | 0.75 |
| Microphone Sensitivity | -50dB/Pa |
| Microphone Polar Pattern | Cardioid |
| Connection with Main Controller | RJ45 |
| Length of Cable | 1.5m |
| Length of MIC Tube | 215mm (Shortneck) / 540mm (Gooseneck) 2 Bends |
| Priority Button | Only on the Vak 50.c Chairman Unit |
| Max. Current Consumption | 60mA |
| Dimension (W x D x H)mm | 148 x 124 x 60 (Base) |
The Vak 50 is an SM Professional Conference System. The Vāk 50 is a premium Digital Conference System with Network Connectivity & Camera Tracking and more. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional digital wired conference system; Seamless network connectivity via standard RJ45 ethernet connectors; Supports up to 100 participants by default for small to medium meeting scenarios; Can support up to 1000 participants via optional extender for larger meeting scenarios; Multifunctional operating modes such as FIFO, LIFO, chairman, all ON, auto mode and more; Advanced priority control with manual and auto recover options.
The Vak 50 operating distance is Between 2 microphones (2m).
The Vak 50 balanced output level is -4dBV.
The Vak 50 frequency response is 100Hz-10KHz.
The Vak 50 signal to noise ratio is 80dB.
The Vak 50 connector for chairman/delegate is RJ45.
