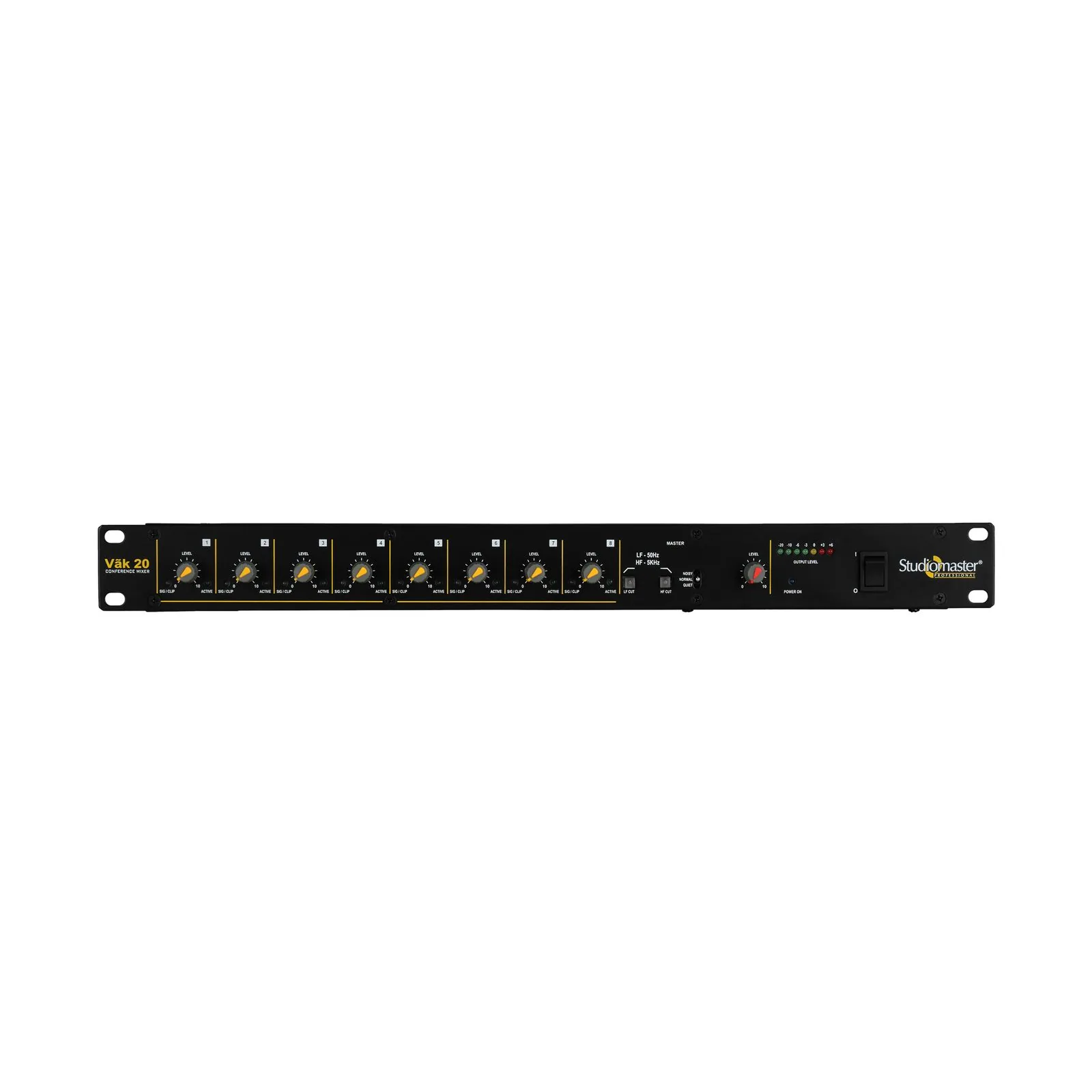

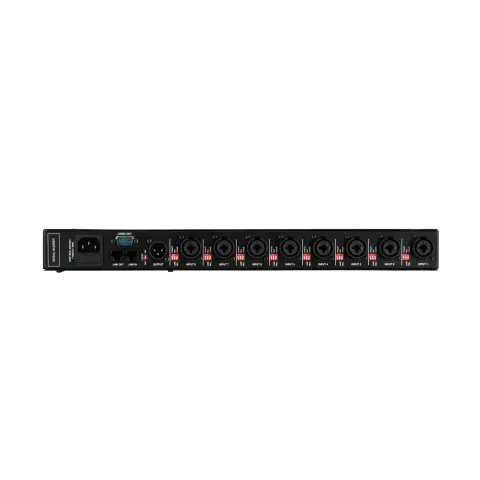

VāK 20
- Category
- Conference Systems
- Category
- Vāk Conference
The VāK 20 is a unique dedicated conference mixer that allows any standard microphone and other inputs to be connected into a conference set-up !
Features
- 8 Mic / Line channel with combo jack input connectors.
- Signal clip indicator & active LED on each channel.
- Delegate or Chairman selectable options on each channel.
- Individual phantom on each channel.
- Each channel has a combo jack Input connector.
- Balanced XLR output.
- Limiter switch on the output.
- Link In / Out to daisy chain as many VāK 20's required.
- NOM: Maximum 6
- Logic out to control cameras / speakers.
- Level Control.
- Switch for Noisy, Normal, Quiet settings for ambient noise compensation.
- LF / HF cut switches.
- Bar-graph with 7 LED’s
Specifications, Q&A and videos
| Series | VāK Series |
|---|---|
| Input Impedance ( Mic / Line ) | 4KΩ / 30KΩ |
| Output Impedance | 200 Ω |
| Nominal Input Level ( Mic / Line ) | -61 dBu / -17 dBu |
| Nominal Output Level | 0 dBu |
| Frequency Response | 20 Hz - 20kHz @ -3dB |
| Selectable Filter | LF Cut 50Hz / HF Cut 8KHz |
| Microphone Phantom | +48 V DC |
| Power Supply | 240V AC, 100mA, max |
| Dimensions (W x D x H)mm | 482 x 152 x 44 (1U) |
| Net Weight (Kgs.) | 2.5 |
The VāK 20 is an SM Professional Conference System. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
8 Mic / Line channel with combo jack input connectors; Signal clip indicator & active LED on each channel; Delegate or Chairman selectable options on each channel; Individual phantom on each channel; Each channel has a combo jack Input connector; Balanced XLR output.
The VāK 20 series is VāK Series.
The VāK 20 input impedance ( mic / line ) is 4KΩ / 30KΩ.
The VāK 20 output impedance is 200 Ω.
The VāK 20 nominal input level ( mic / line ) is -61 dBu / -17 dBu.
The VāK 20 nominal output level is 0 dBu.
